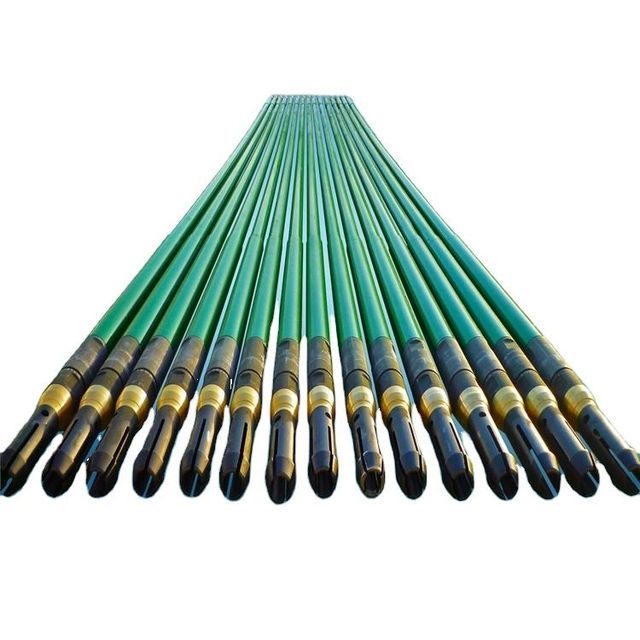

Oilfield Equipment API 11AX Sucker Rod Pump

Product details
Advantage:high performanceMechanical test report:if
Showroom location:not anyDimensions (length*width*height):regular
delivery time:25 dayscolor:Customer requirements
Production capacity:100%Place of origin:Henan, China
Video outbound inspection:ifApplicable industries:Energy and Mining
payment terms:Letter of credit, wire transferproduct name:sucker rod pump
weight:20kgmodel:25-225THC
port:Tianjin/ShanghaiCore component warranty:1 year
feature:API11AXMarketing type:Hot Products of 2019
warranty period:1 yearHealth status:new
Supply capacity:30 units per monthCompany Name:Puyang Zhongshi
Warranty:1 yearCore components:engine
application:oil productionstandard:API11AX
After the promotion:Video technical supportbrand:Zhongshi
Packaging details:Standard packaging or as per buyer's requirementsPolishing rod capacity:900

Product Description

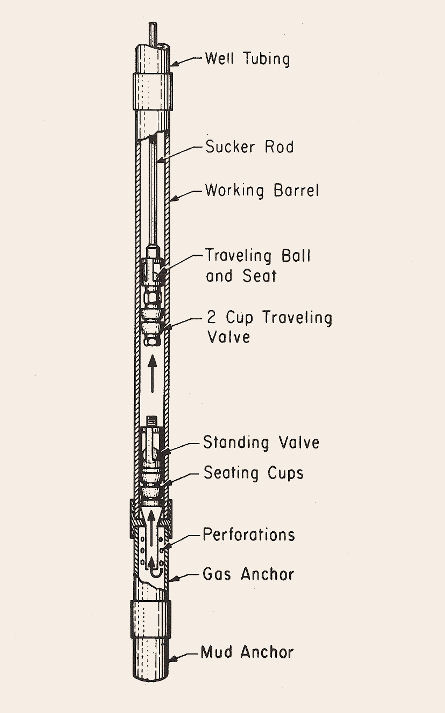

For this type of pump, the barrel is lowered into the well with tubing to the design depth. Then put the plunger together with the sucker rod into the oil barrel. Taking the pipe size into account, tube pumps have larger bore diameters than rod pumps, resulting in higher pump speeds. According to the form of the pump seat, rod pumps can be divided into three types: THC pumps (fixed thick-wall cup seat tube pumps), THM pumps (fixed thick-wall mechanical seat tube pumps) and THD pumps.

work

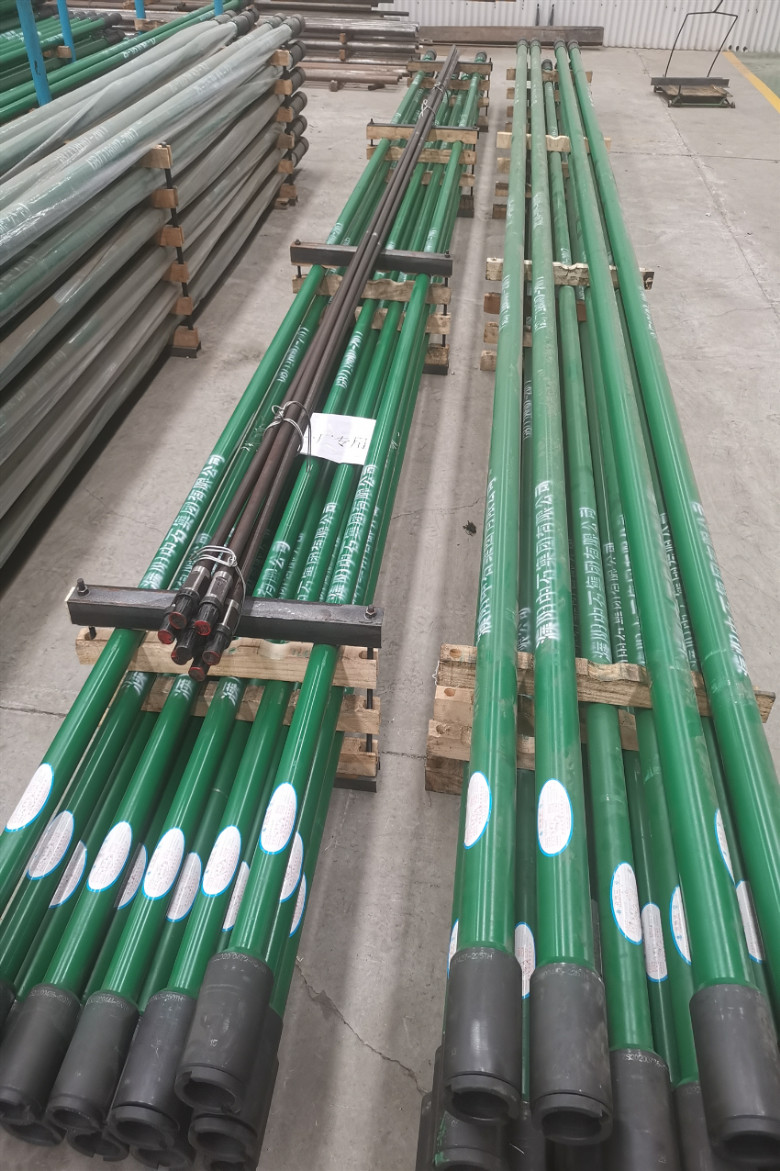

Packaging and shipping





Production parameters





Aperture (mm)

Stroke length (m)

Barrel length (m)

Plunger length (m)

Pipe size (inches)

32

0.6-8

3.3-9.5

0.6-1.8

2 3/8

38

0.6-8

3.3-9.5

0.6-1.8

2 3/8

44

0.6-8

3.3-9.5

0.6-1.8

2 3/8

57

0.6-6

3.3-8

0.6-1.8

2 7/8

70

0.6-6

3.3-8

0.6-1.8

3 1/2

95

0.6-6

3.3-8

0.6-1.8

4 1/2
