Automatic machine for the production of foam mattresses

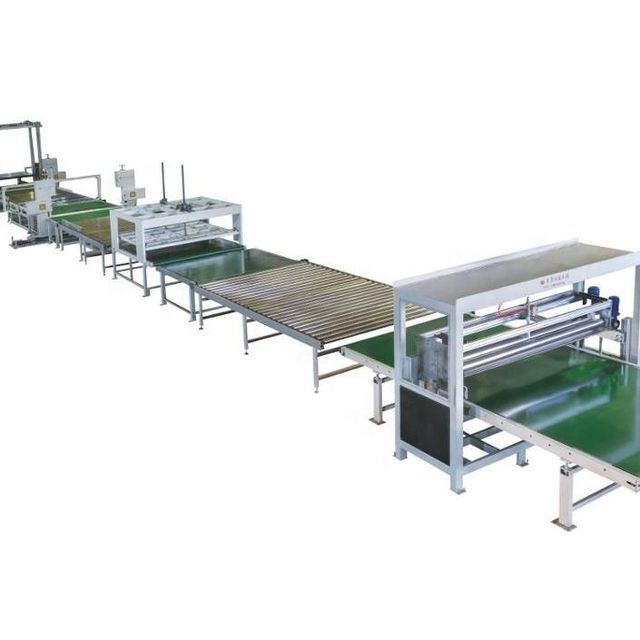

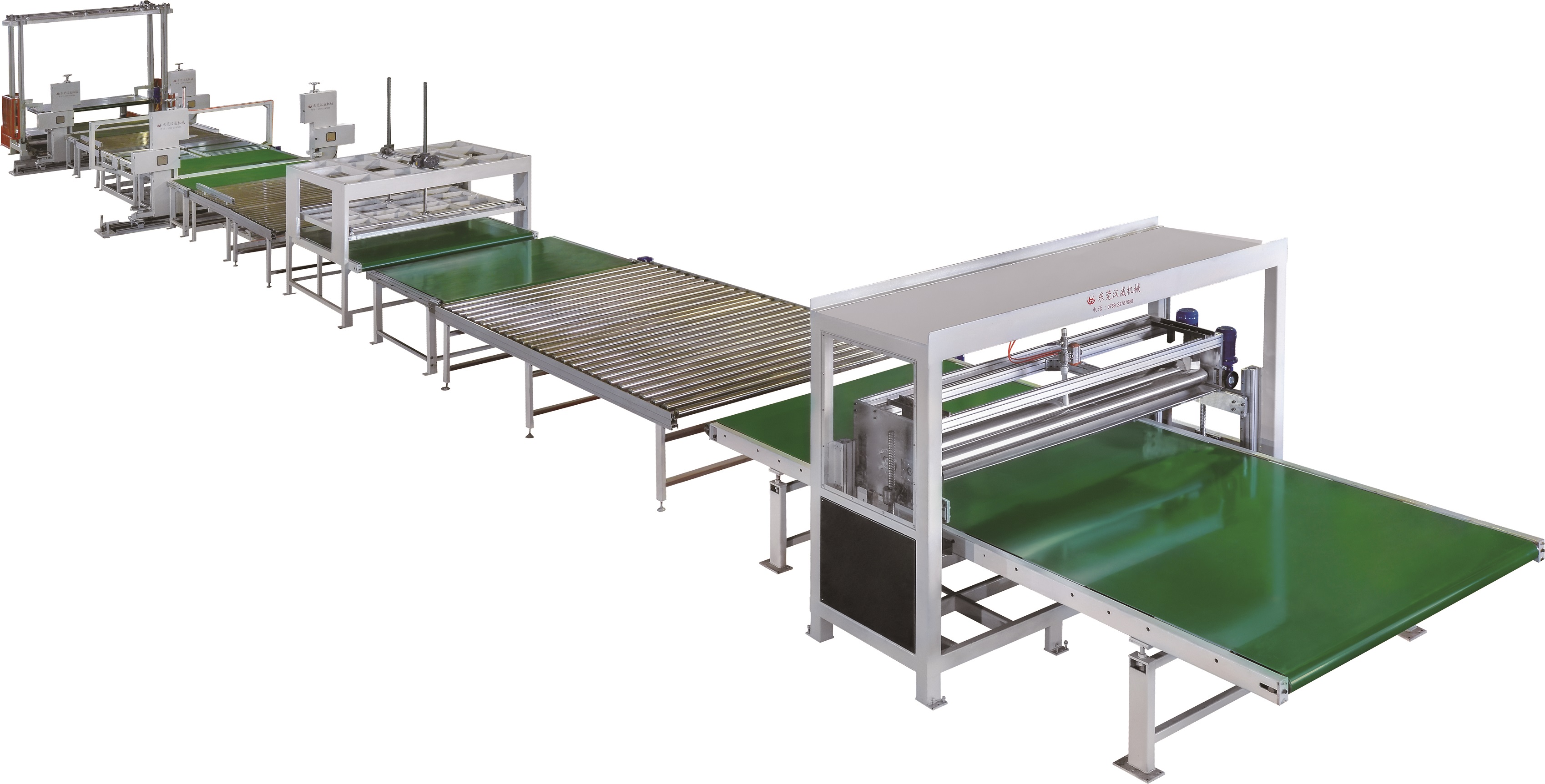

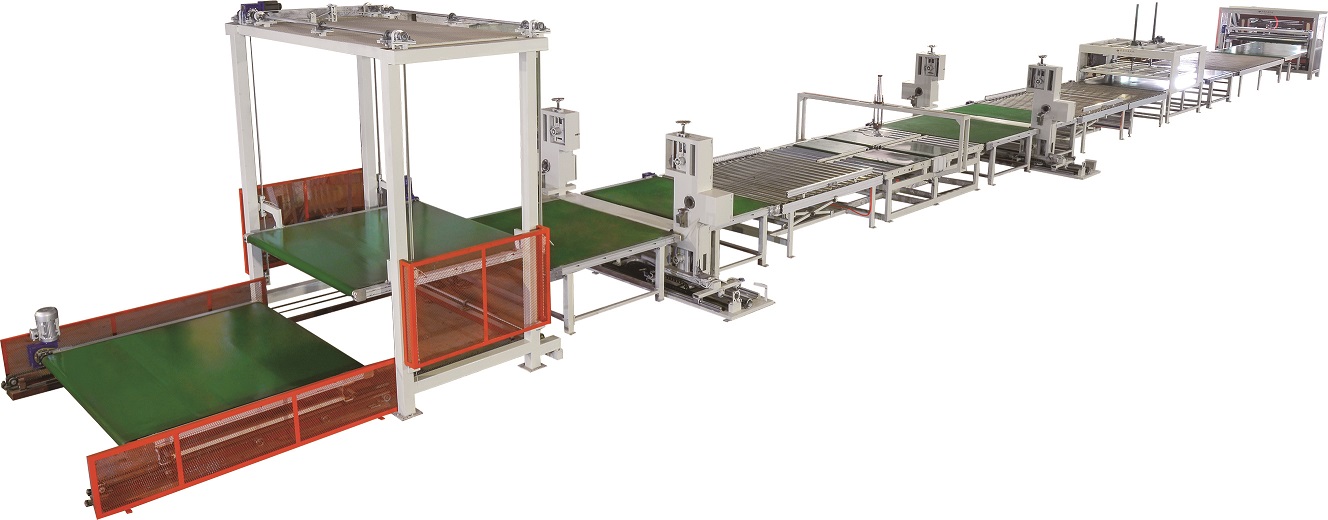

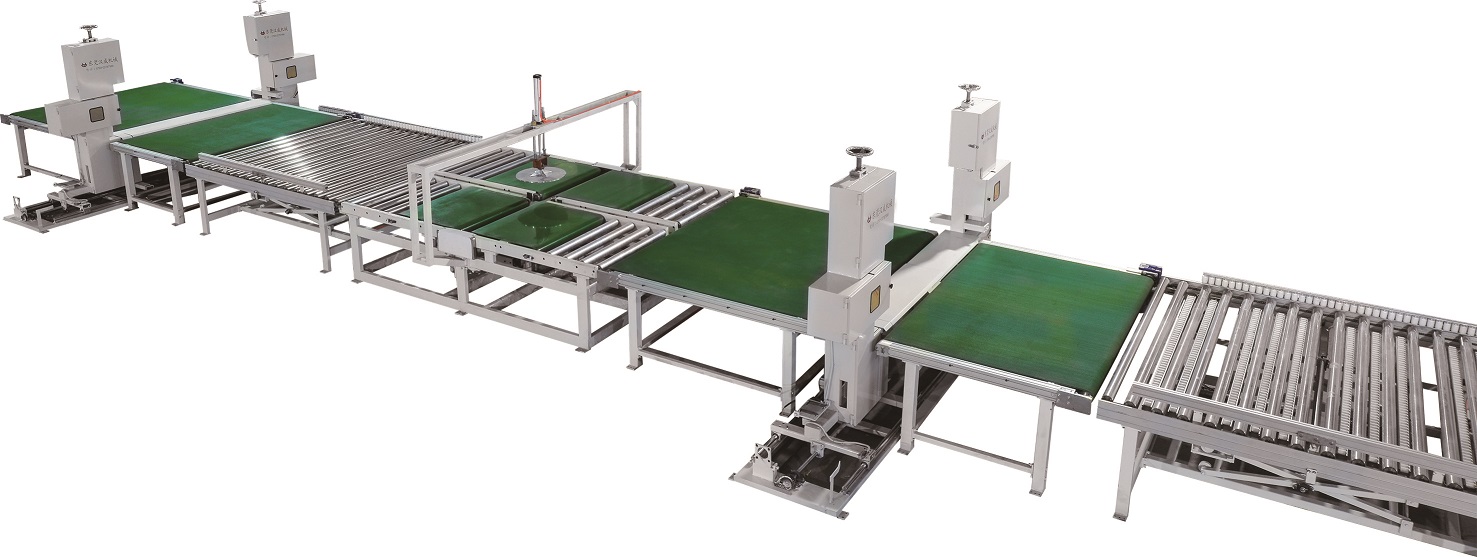

This production line is used to produce foam mattresses:

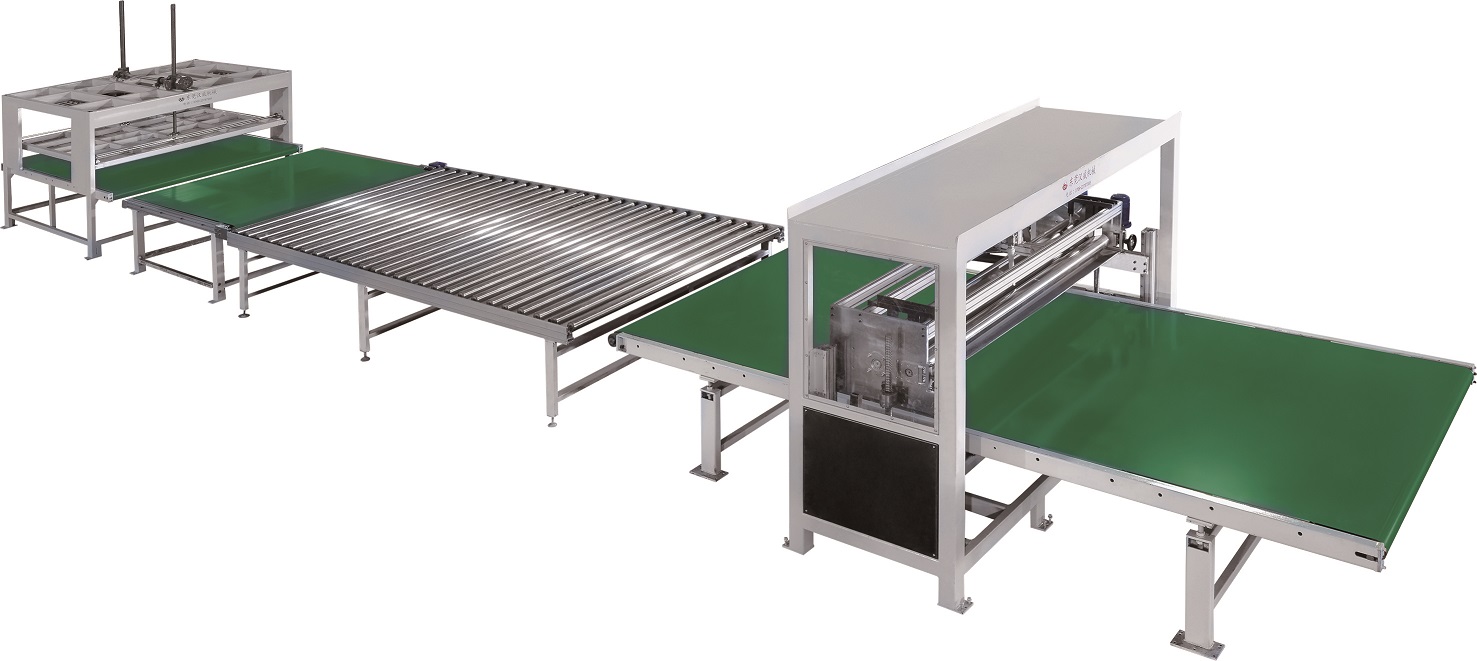

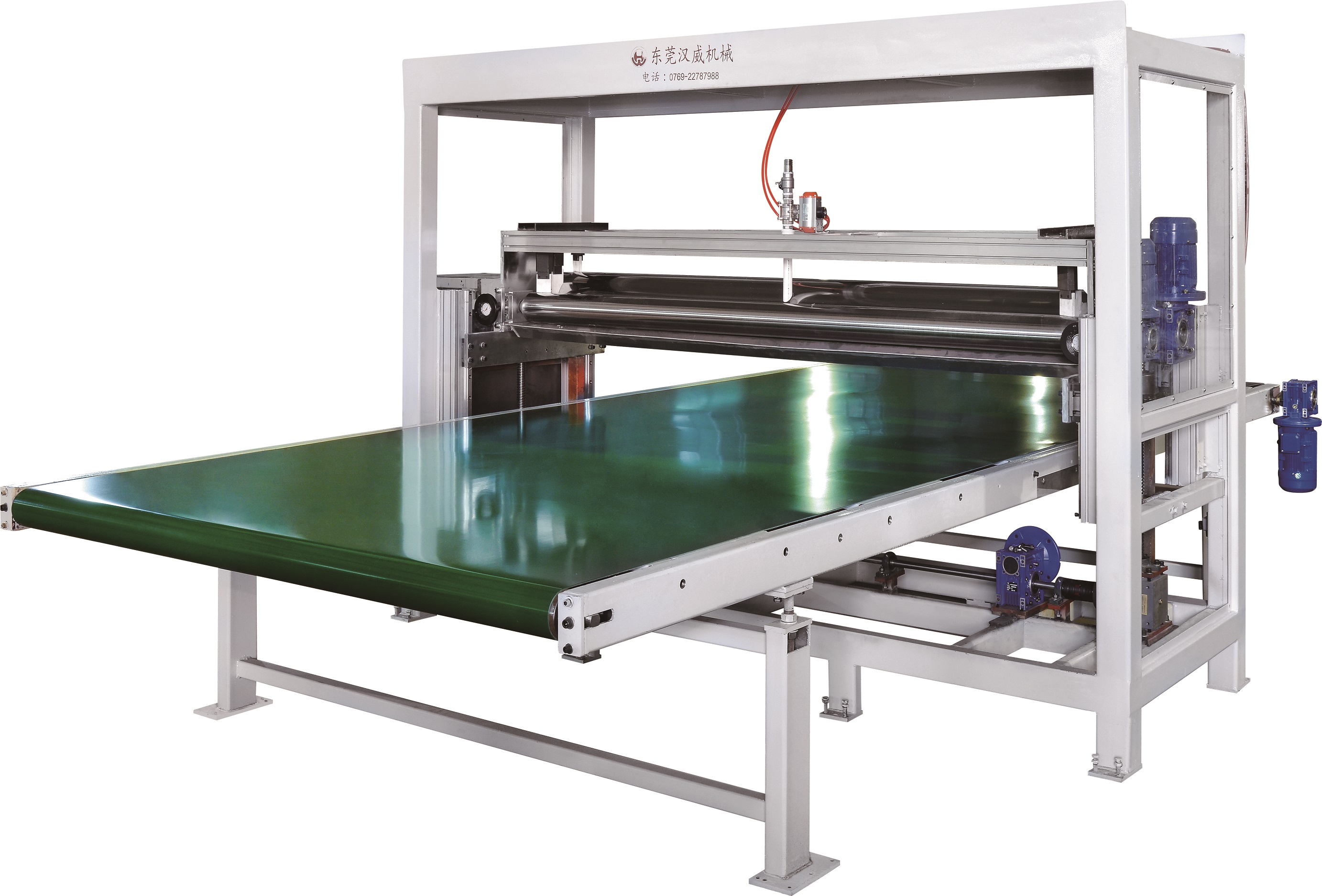

The automatic glue applicator applies water-based glue on the surface of the foam sheet, and the operator manually laminates the foam sheet,

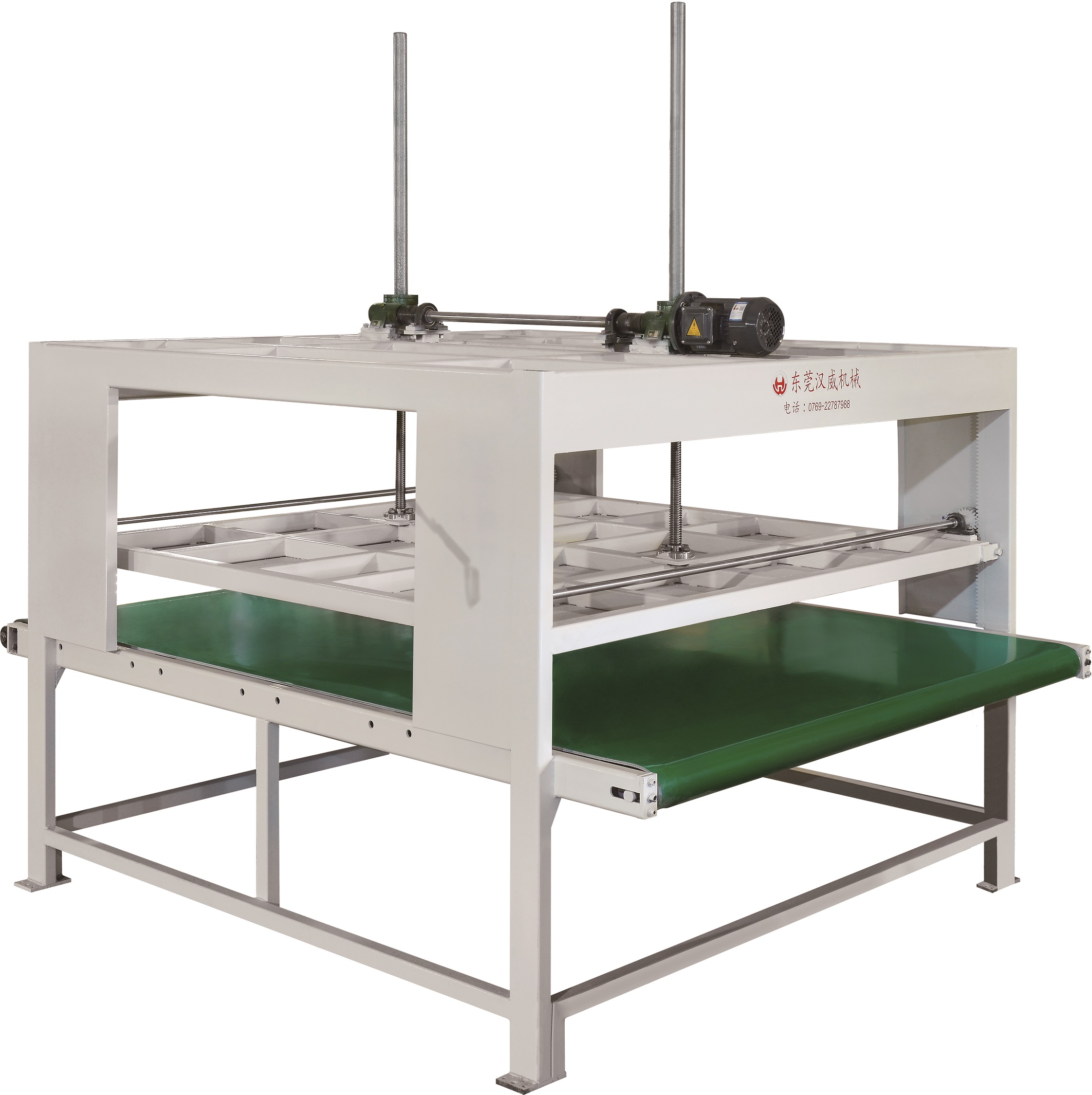

The automatic pressing machine presses the foam mattress to improve the bonding effect,

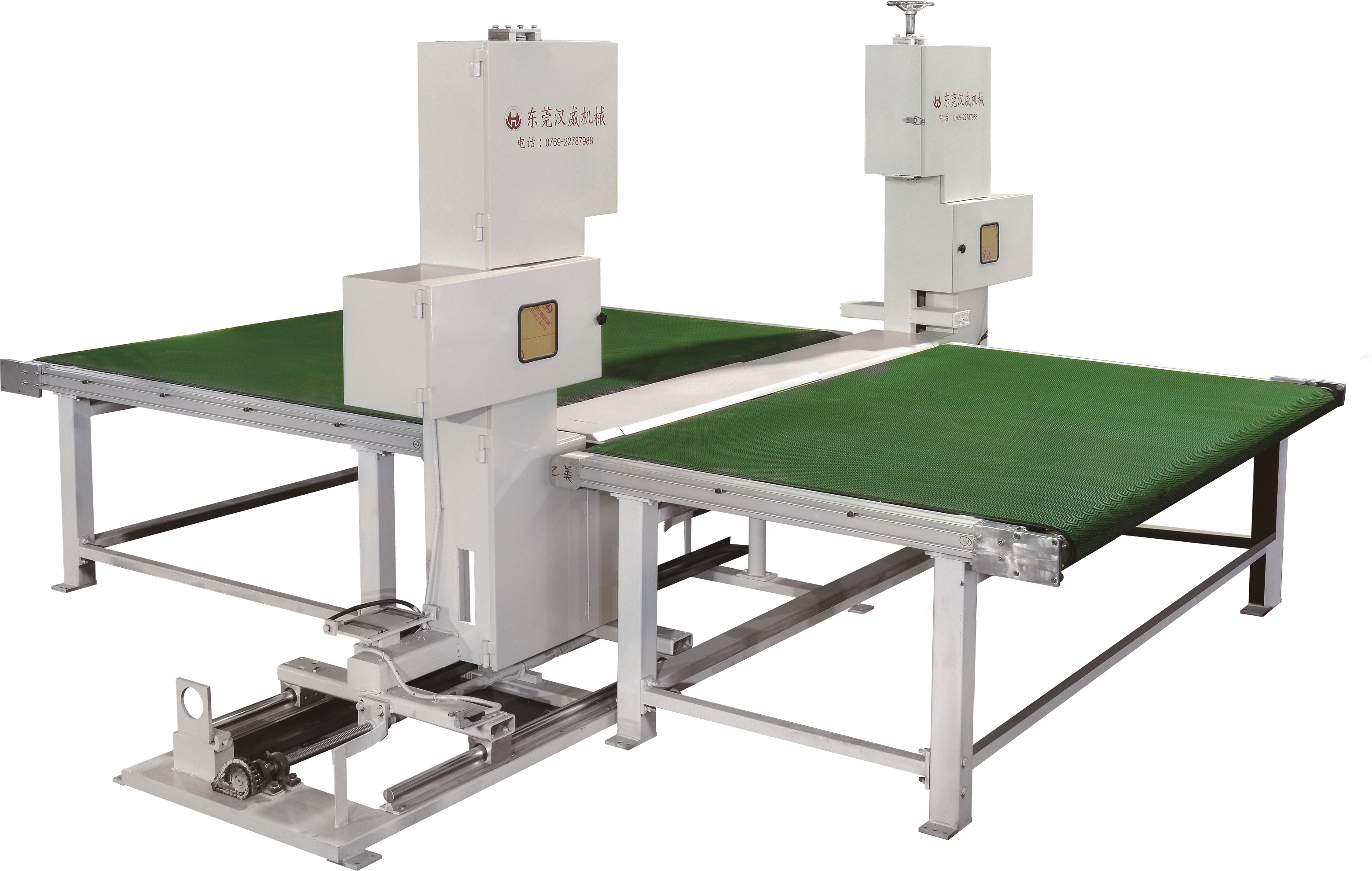

The automatic positioning workbench and the automatic trimming machine cut the four sides of the foam mattress to the design size,

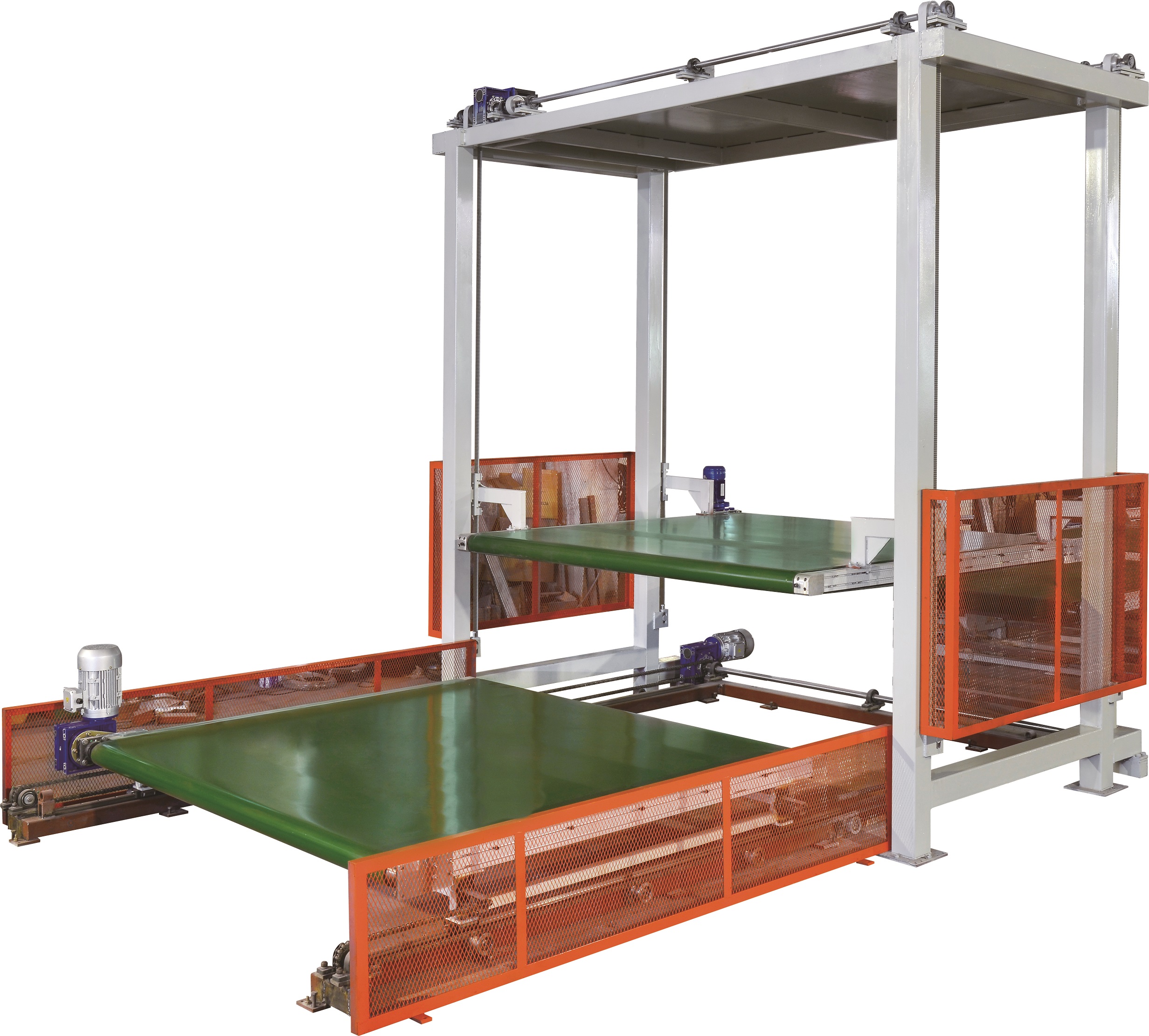

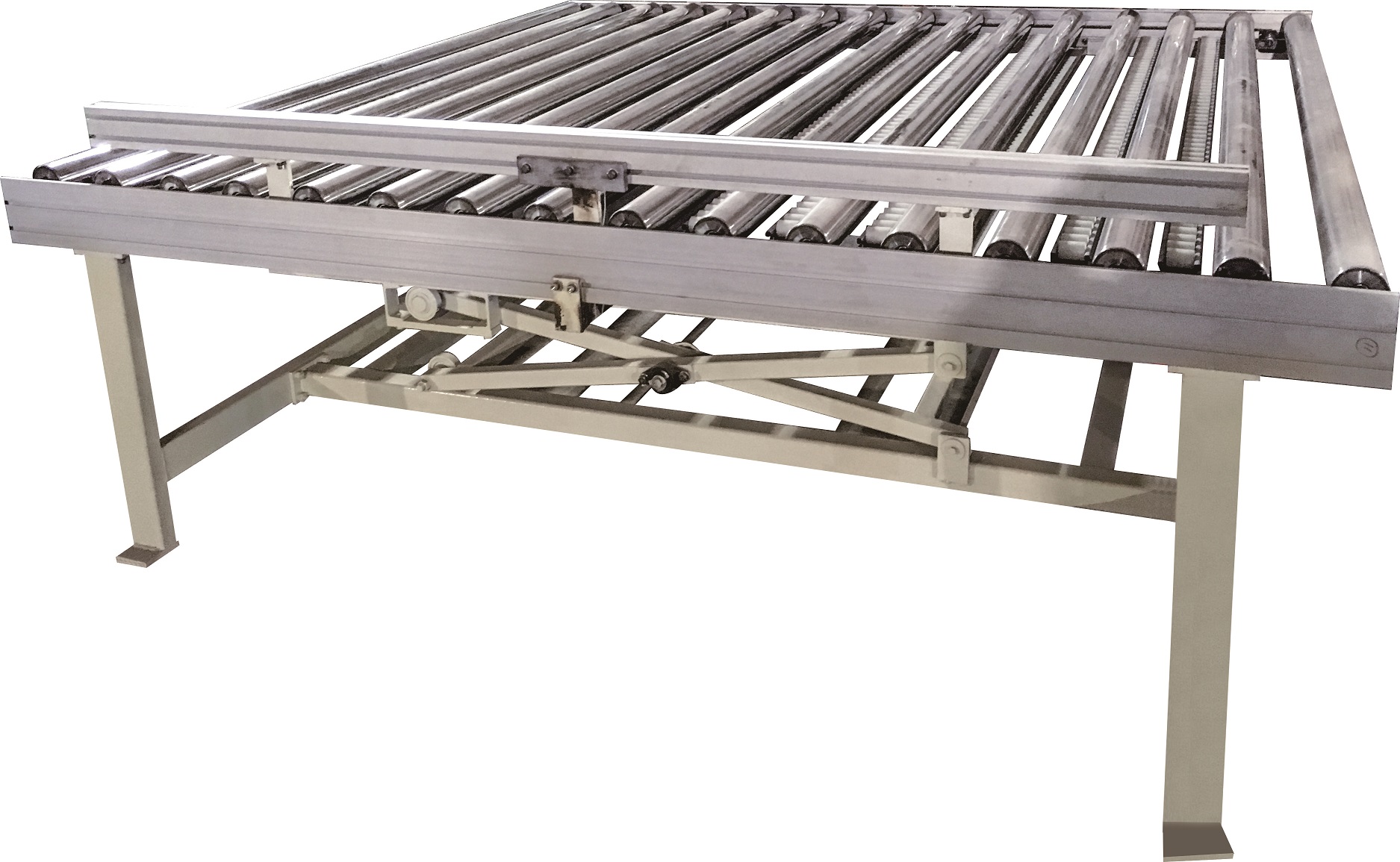

Automated palletizers stack foam mattresses together and move them onto trolleys so operators can remove them

Main technical specifications:

1. Maximum glue width: 2200mm

2. Maximum glue application height: 250mm

3. Glue application speed: 0-30m/min

4. Automatic height detection system: Yes

5. Synchronization system: YES

6. Glue amount adjustable: Yes

7. Maximum mattress size: 2100*2100*600mm

8. Automatic press control system: yes

8. Automatic positioning workbench: 2 sets

9. Automatic trimming machine: 2 sets

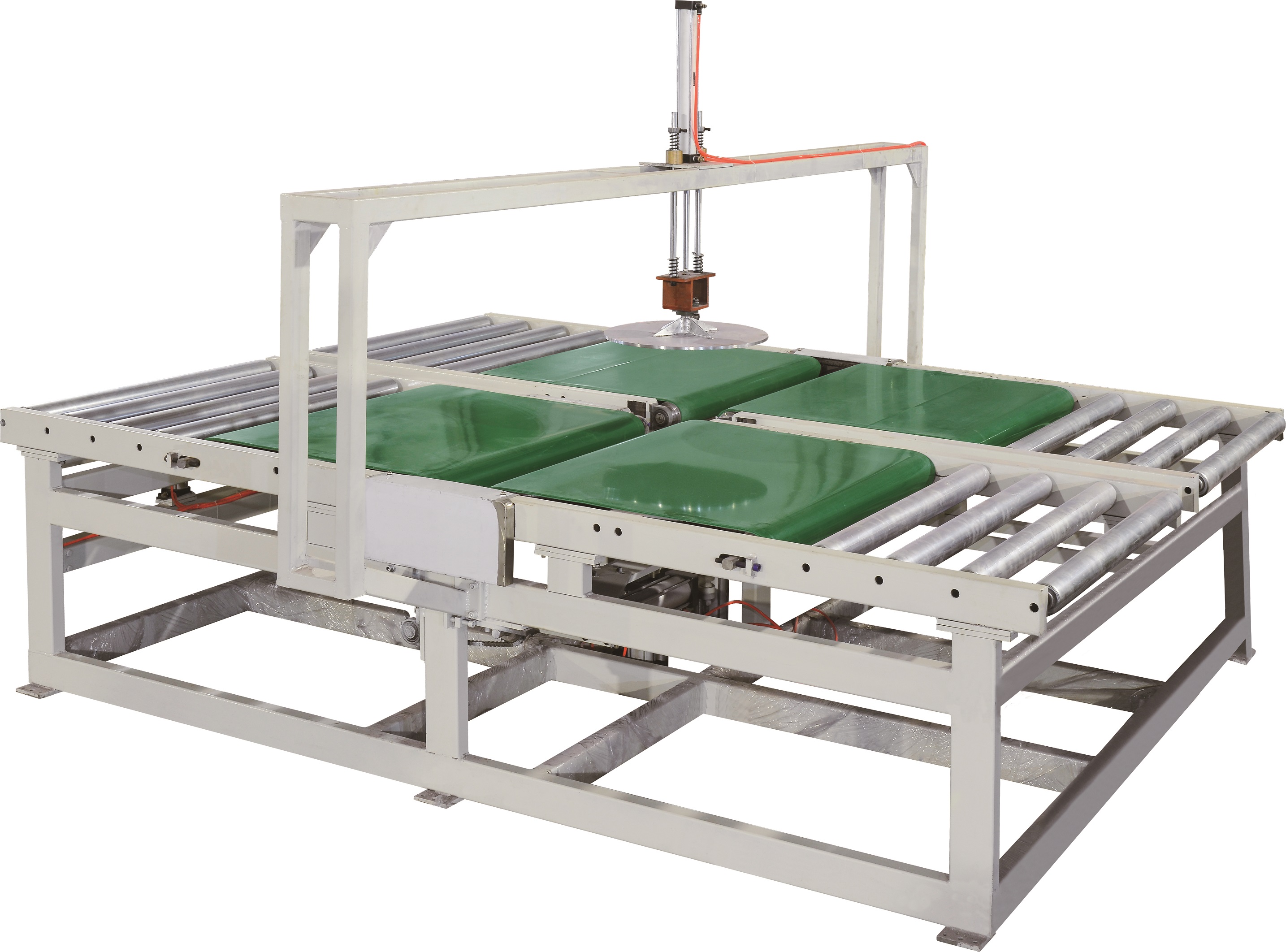

10. Automatic 90-degree rotary table: 1 set

11. Automatic foam stacker: 1 set

12. Touch screen and PLC automatic control

13: Total power: 30kw

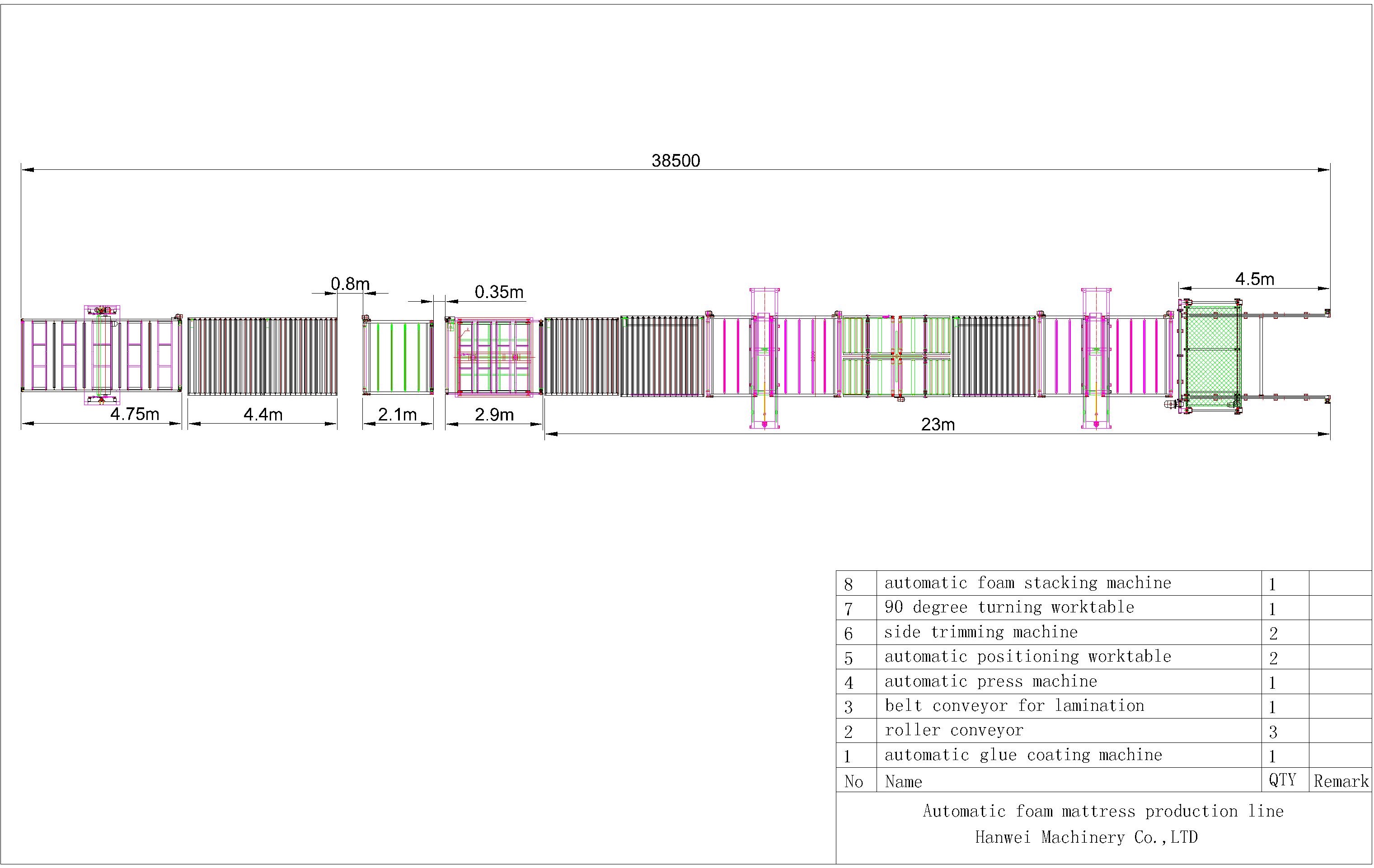

14: Machine size: L38.5*W4*H3.7m

Adopt Delta touch screen, PLC, inverter control

Using Siemens contactors and Schneider relays
