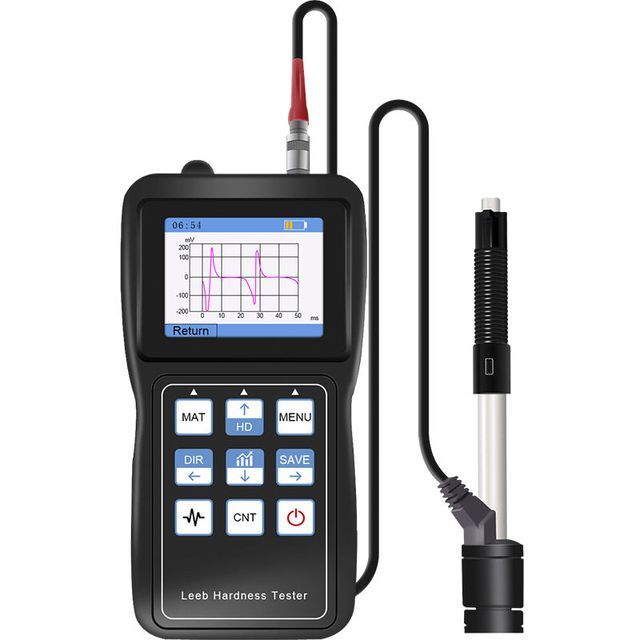

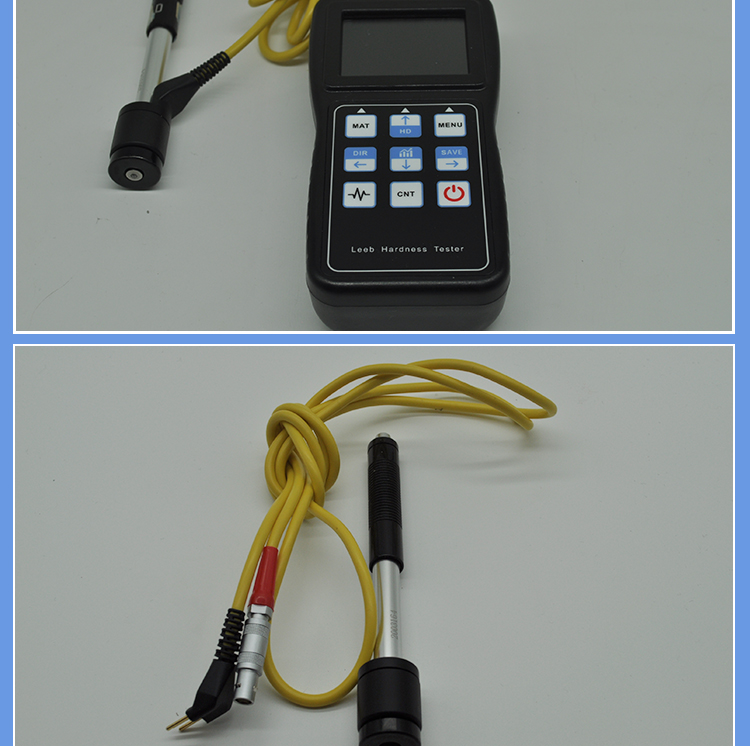

OLH300 Leeb hardness tester high-precision color screen full-scale hardness tester split type portable Leeb hardness tester

Product details
brand:StrapdownContinuous working time:Low brightness about 15 hours; high brightness about 7 hours
Sales unit:ItemPackage preview:
model:OLH300Single package size:30X25X20 cm
Operating Voltage:3V (two AA alkaline batteries in series)Measuring range:170-960HLD
data storage:Up to 100 groups (impact times 32~1)Hardness system:HL/HV/HS/HRC/HRB/HRA/HB
Warranty:1 yearCustomization support:OEM production
Origin:Zhejiang, Chinaproduct name:Color Screen Hardness Tester
type:Hardness TesterMeasuring direction:Support 360 degrees
size:150*76*37(mm)exhibit:color screen
Gross weight per piece:4.000 kgPackaging Details:export package
weight:0.16 kg
Product Description









Product overview

This instrument is a split-type measuring instrument, which can measure the hardness of ordinary metal materials quickly, non-destructively and with high precision. It can be used in both laboratory and engineering site. Through the setting of instrument measurement conditions, various measurement needs can be met. It is widely used in mold, heat treatment, machining, pressure vessel, auto parts, aerospace and other industries, as well as universities, research institutes, technical supervision, special inspection institutes, etc. It is an essential instrument material for non-destructive hardness testing.

Features

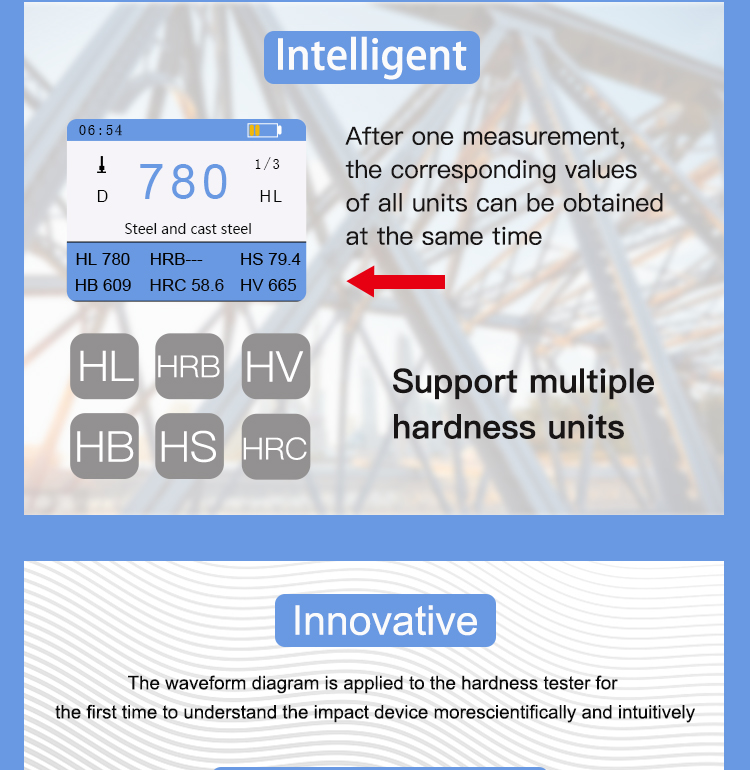

1. The hardness value of the whole system is displayed, and 7 hardness systems (HL, HV, HRA, HRC, HRB, HB, HS) are displayed directly when the machine is turned on.

2. It can store up to 100 sets of hardness measurement data (impact times 32~1). Each set of data includes single measurement value, average value, impact direction, times, material, hardness system, test time and other information.

3. The instrument is compact, portable, and highly reliable, suitable for harsh operating environments, and resistant to vibration, shock, and electromagnetic interference;

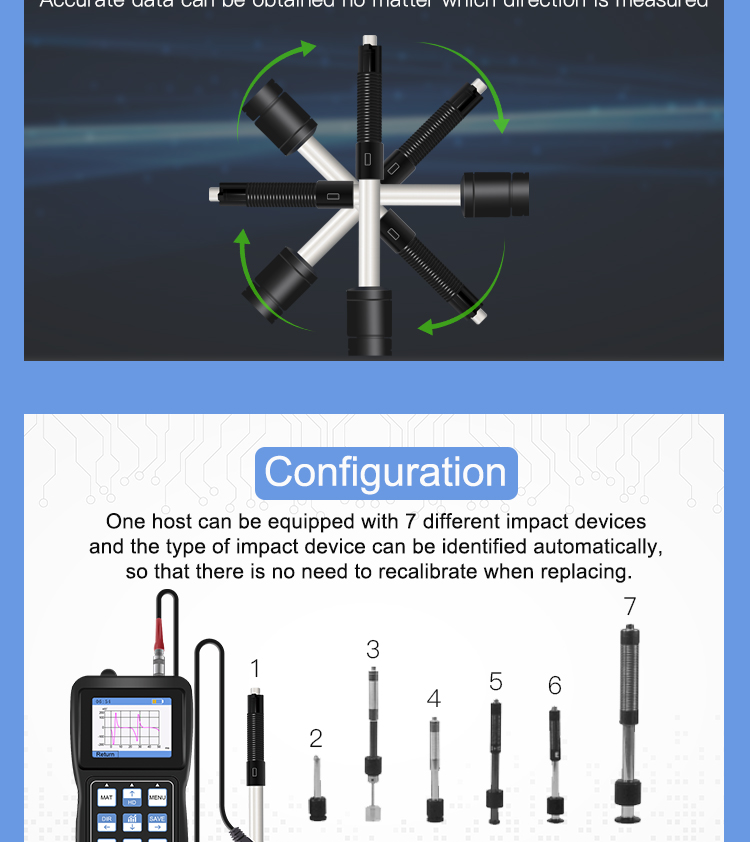

4. One host can be equipped with many different impact devices, and the type of impact device can be automatically identified.

5. USB can be connected to host computer software for data analysis (optional).

6. It can be paired with a printer to print and archive the measurement data.

Product Specifications

Measuring range

170~960HLD



print function

print with a printer

mistake

Indication error is less than ±6HLD (when HLD=760±30); repeatability error is less than 6HLD (when HLD=760±30)

Measurement direction

Support 360 degrees (vertical downward, oblique downward, horizontal, oblique upward, vertical upward)

screen display

Brightness adjustable color LCD display

data storage

100 groups

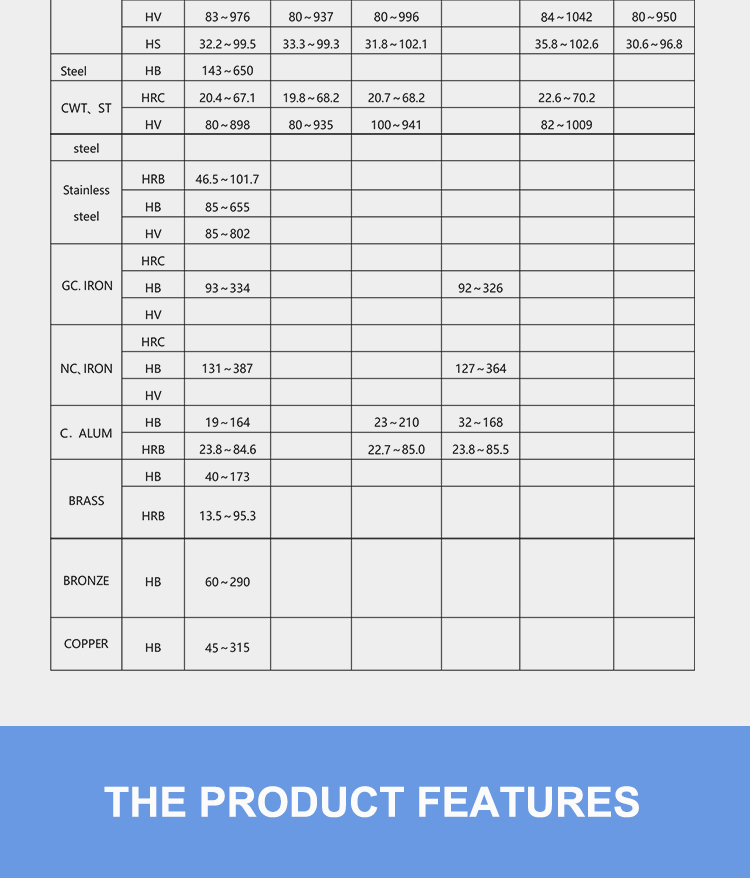

test material

Steel and cast steel, alloy tool steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper

power supply

2*1.5V AA dry batteries

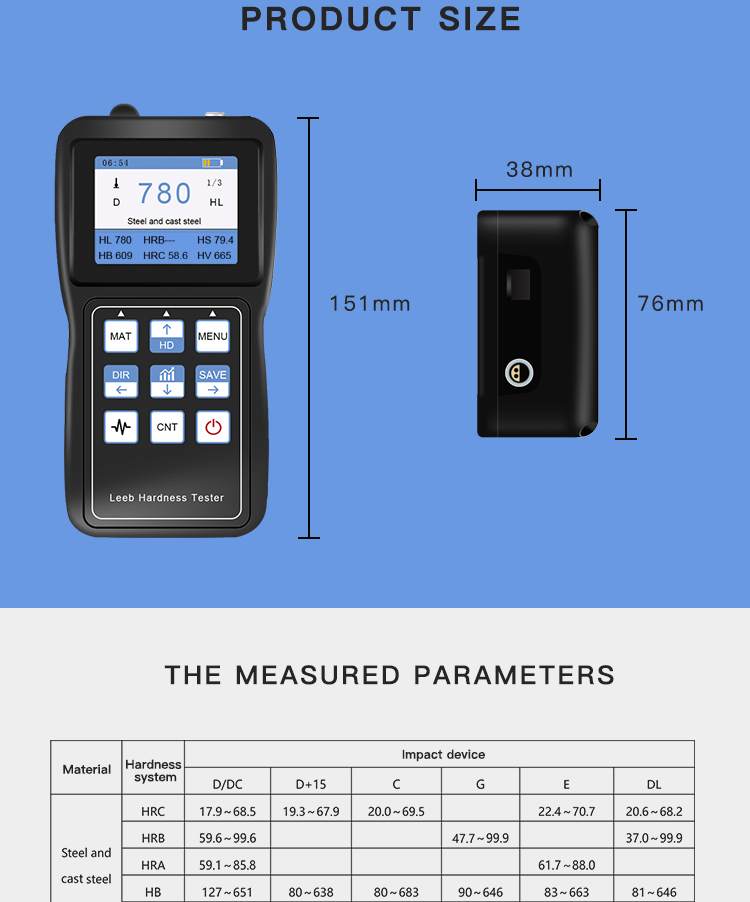

size

151mm*76mm*35mm

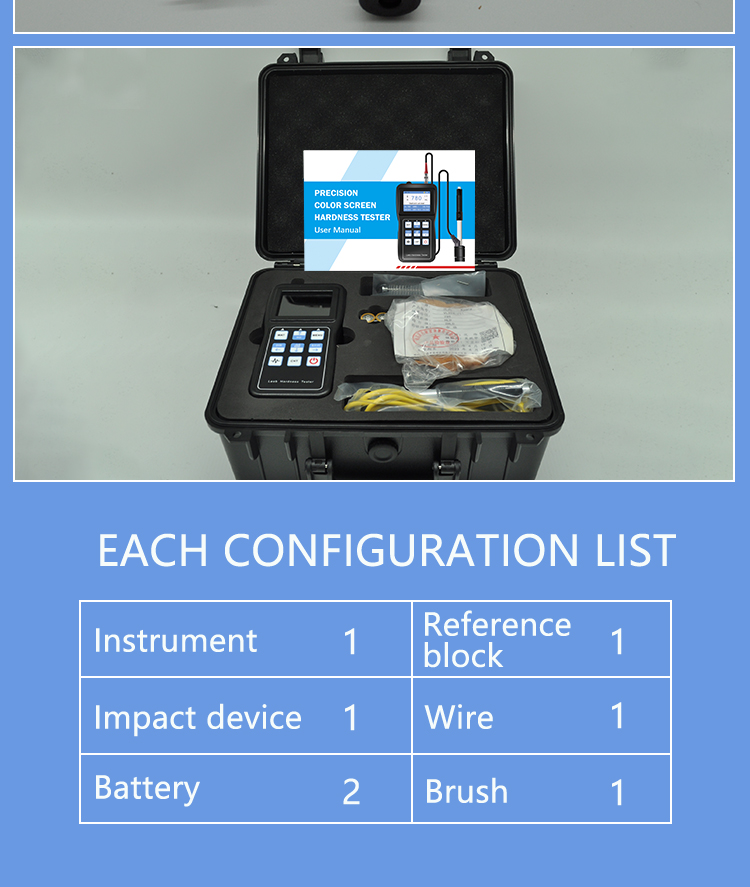

Standard configuration

Name

quantity

host

1

D-type impact device

1

Standard Leeb Hardness Block

1

Nylon brush A

1

small support ring

1

manual

1

ABS instrument case

1

Optional

Name

quantity

Nylon brush B

1

Shaped impact device and support ring

1

Data transfer analysis software CD

1

Communication Cable

1

micro printer

1

printed cable

1

 Tontechnical characteristics

No.

Impact device

type

Standard Hardness Block

wrong indication

Indication repeatability

1

Man

760±30HLD

530±40HLD

±6 hold

±10 Hold

6 positions

10 shares

2

direct current

760±30HLDC

530±40HLDC

±6 HLDC

±10 high DC

6 positions

10 shares

3

DL

878±30 HDL

736±40 HDL

±12 HDL

12 HDL

4

Day +15

766±30HLD+15

544±40HLD+15

±12 hold +15

12 positions +15

5

G

590±40HLG

500±40HLG

±12 HLG

12 Helga

6

Second

725±30HLE

508±40HLE

±12 HLE

12 high energy

7

C

822±30HLC

590±40HLC

±12 HLC

12 High energy liquid crystal
