Well stocked porous ip68 m6 mini cable gland pg 7 size for sale
- 0.05 >=100 pieces
| Origin: | Zhejiang, China | brand: | Gordon |
| color: | black or gray | payment terms: | L/C, Western Union, D/P, D/A, T/T |
| port: | China Shanghai or Ningbo | model: | G1407B |
| Protection class: | IP68 | Material: | nylon |
| Packaging Details: | Standard packing: plastic bag + label + carton | size: | see table below |
| product name: | Nylon Cable Glands | Supply capacity: | 1,000,000 bags per month |
M/M Length Nylon Cable Glands
Material: PA (Nylon), UL 94B-2
Hermetic seal: NBR, EPDM
Working temperature: Static -40°C to 100°C
Instantaneous heat resistance up to 120°C
Dynamic -20°C to 80°C
Instantaneous heat resistance up to 100°C
Color: gray, black, other colors can be customized.
Product parameters
| Wire | clamping range | h | GL | Wrench size | serial number. | serial number. |
| mm | mm | mm | mm | grey | Black | |
| M12x1,5 | 3-6,5 | twenty one | 8 | 15 | M1207 | M1207B |
| M12x1,5 | 2-5 | twenty one | 8 | 15 | M1205 | M1205B |
| M16x1,5 | 4-8 | twenty two | 8 | 19 | M1608 | M1608B |
| M16x1,5 | 2-6 | twenty two | 8 | 19 | M1606 | M1606B |
| M16x1,5 | 5-10 | 25 | 8 | twenty two | M1610 | M1610B |
| M20x1,5 | 6-12 | 27 | 9 | twenty four | M2012 | M2012B |
| M20x1,5 | 5-9 | 27 | 9 | twenty four | M2009 | M2009B |
| M20x1,5 | 10-14 | 28 | 9 | 27 | M2014 | M2014B |
| M25x1,5 | 13-18 | 31 | 11 | 33 | M2518 | M2518B |
| M25x1,5 | 9-16 | 31 | 11 | 33 | M2516 | M2516B |
| M32x1,5 | 18-25 | 39 | 11 | 42 | M3225 | M3225B |
| M32x1,5 | 13-20 | 39 | 11 | 42 | M3220 | M3220B |
| M40x1,5 | 22-32 | 48 years old | 13 | 53 | M4032 | M4032B |
| M40x1,5 | 20-26 | 48 years old | 13 | 53 | M4026 | M4026B |
| M50x1,5 | 32-38 | 49 | 13 | 60 | M5038 | M5038B |
| M50x1,5 | 25-31 | 49 | 13 | 60 | M5031 | M5031B |
| M63x1,5 | 37-44 | 49 | 14 | 65/68 | M6344 | M6344B |
| M63x1,5 | 29-35 | 49 | 14 | 65/68 | M6335 | M6335B |
| Wire | clamping range | h | GL | Wrench size | serial number. | serial number. |
| mm | mm | mm | mm | grey | Black | |
| M12x1,5 | 3-6,5 | twenty one | 15 | 15 | M1207L | M1207BL |
| M12x1,5 | 2-5 | twenty one | 15 | 15 | M1205L | M1205BL |
| M16x1,5 | 4-8 | twenty two | 15 | 19 | M1608L | M1608BL |
| M16x1,5 | 2-6 | twenty two | 15 | 19 | M1606L | M1606BL |
| M16x1,5 | 5-10 | 25 | 15 | twenty two | M1610L | M1610BL |
| M20x1,5 | 6-12 | 27 | 15 | twenty four | M2012L | M2012BL |
| M20x1,5 | 5-9 | 27 | 15 | twenty four | M2009L | M2009BL |
| M20x1,5 | 10-14 | 28 | 15 | 27 | M2014L | M2014BL |
| M25x1,5 | 13-18 | 31 | 15 | 33 | M2518L | M2518BL |
| M25x1,5 | 9-16 | 31 | 15 | 33 | M2516L | M2516BL |
| M32x1,5 | 18-25 | 39 | 15 | 42 | M3225L | M3225BL |
| M32x1,5 | 13-20 | 39 | 15 | 42 | M3220L | M3220BL |
| M40x1,5 | 22-32 | 48 years old | 18 | 53 | M4032L | M4032BL |
| M40x1,5 | 20-26 | 48 years old | 18 | 53 | M4026L | M4026BL |
| M50x1,5 | 32-38 | 49 | 18 | 60 | M5038L | M5038BL |
| M50x1,5 | 25-31 | 49 | 18 | 60 | M5031L | M5031BL |
| M63x1,5 | 37-44 | 49 | 18 | 65/68 | M6344L | M6344BL |
| M63x1,5 | 29-35 | 49 | 18 | 65/68 | M6335L | M6335BL |

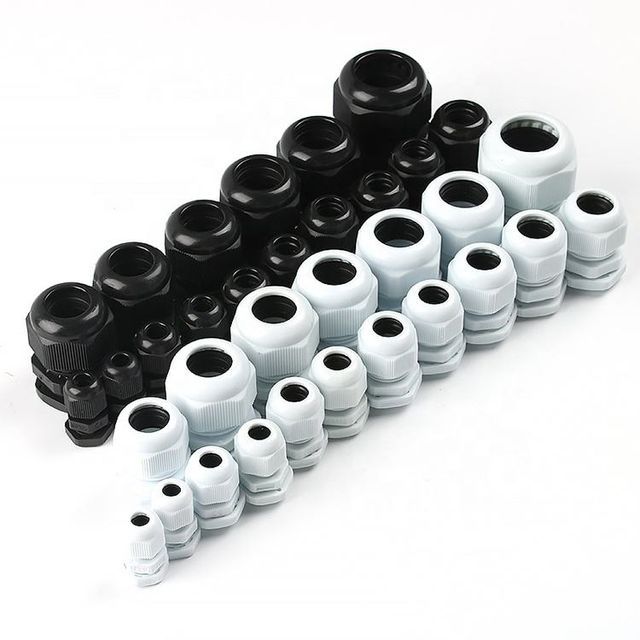

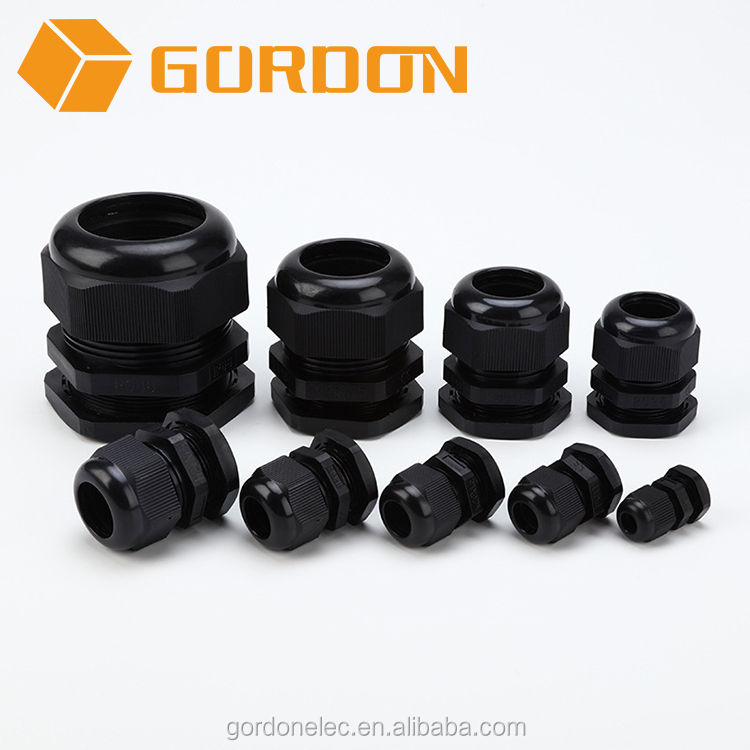

Product Image

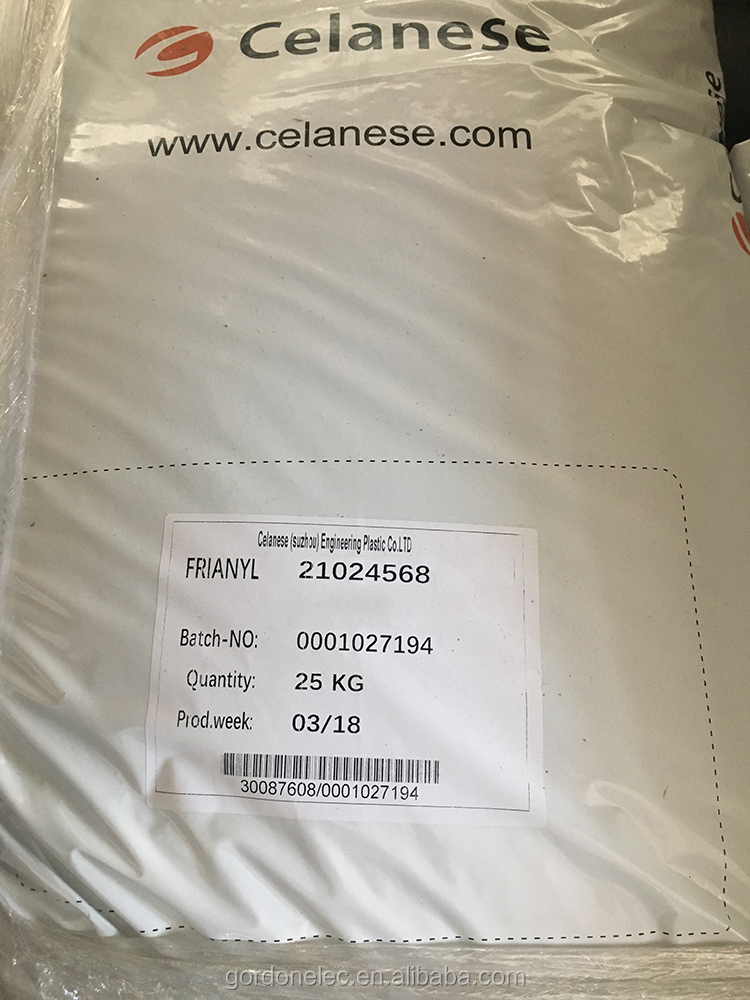

raw material

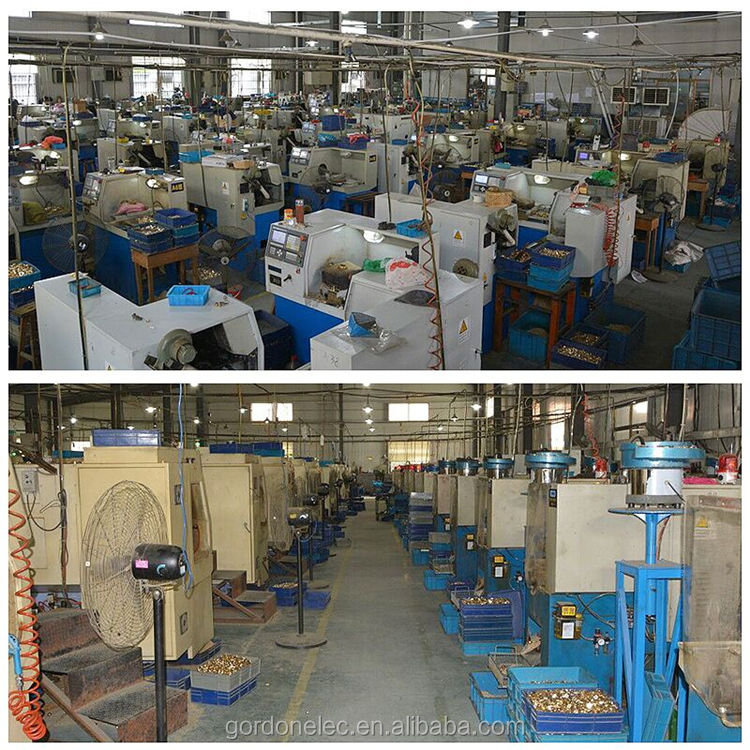

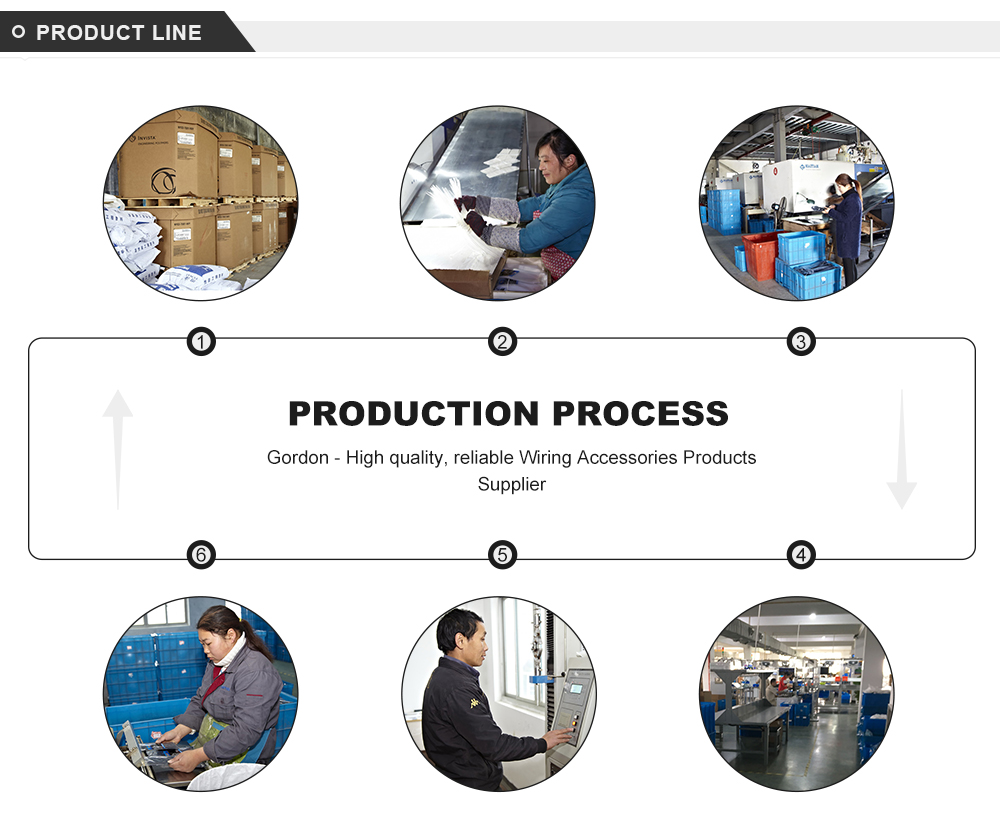

our workshop

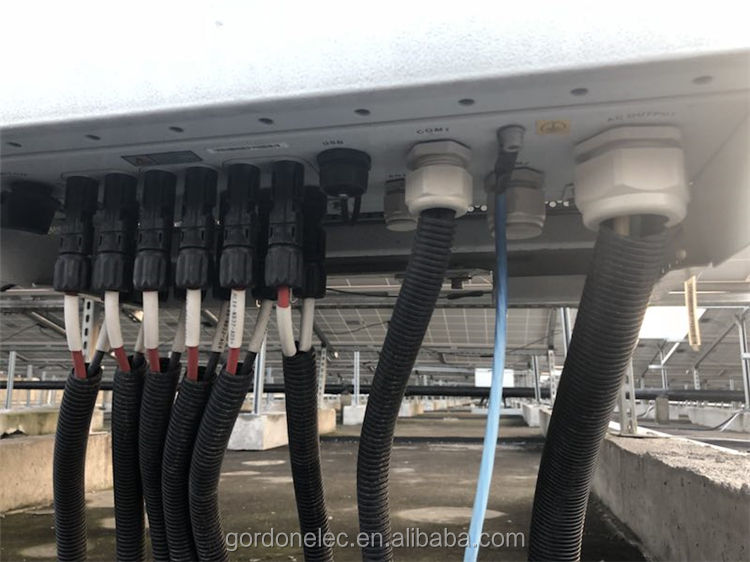

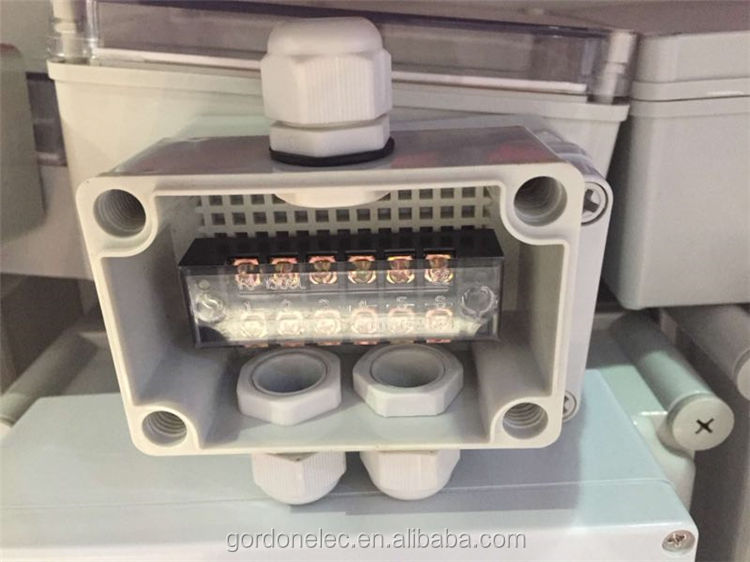

Applications
Q1: Is it OK to make customer's own brand?
Answer: yes
Q2: Are you a manufacturer or a trading company?
A: Manufacturer.
Q3: Can you do the design for us?
A: Yes, we can.
Q4: How can I get a sample to check your quality?
A: Contact us. Free samples can be sent to you for testing.
Q5: How soon can I get the samples?
A: About 4-6 days. Shipping according to courier company.
Q6: Packaging and shipping?
A: By sea, by air, by rail or by express. Please contact us for packaging details.
Q7: Production time?
A: About 20-25 days. About 7 days for small order. Details are based on order quantity.
Q8: What is your main product?
A: We mainly produce cable ties and cable glands, and also provide other wiring accessories products.
Q9: What is your terms of delivery?
A: FOB, CIF, CFR, DDP, EXW, etc...
Q10: What is the MOQ for your production?
A: We accept large and small orders. Contact us for details.
Q11: What's your payment term?
A: 30% T/T deposit + balance before shipment.
Q12: When can I get the price?
A: Quick response within 8 hours
Q13: Where is your company? Where is your loading port?
A: Our company is in Hangzhou, China. Our loading port is in Shanghai or Ningbo, China.
Q14: How soon can we receive an email reply from your team?
A: Quick response within 8 hours.
Q15: If we have some other product requirements that are not included in your page, can you help to provide?
A: Yes, of course.

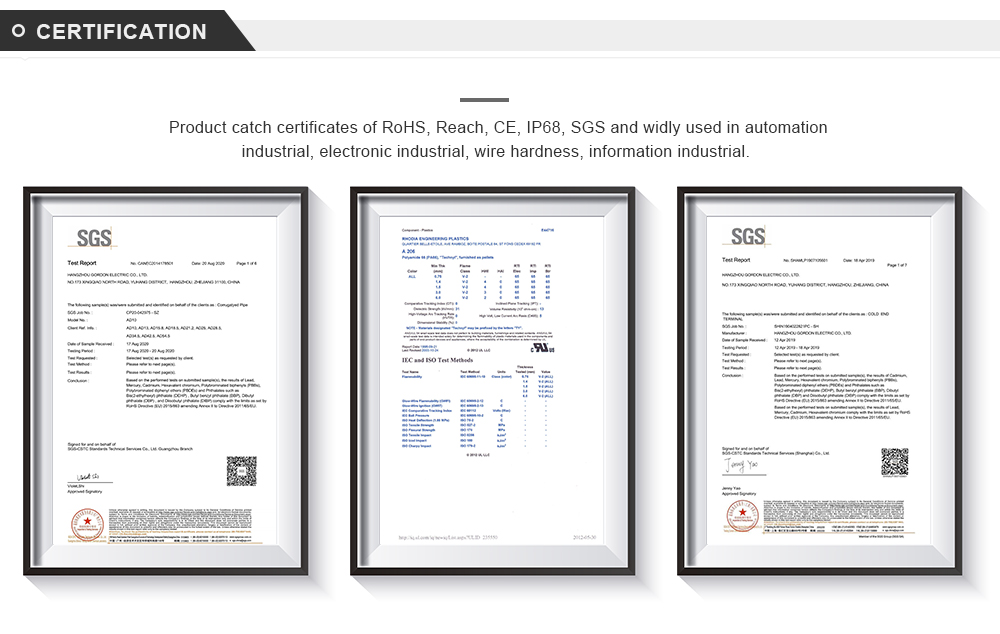

Q16: What is the list of certificates you hold?
A: Rohs, Reach, CE, IP68, Anti-UV test.
Q17: Do you have stock?
A: Small orders are in stock. Please contact us for details.
