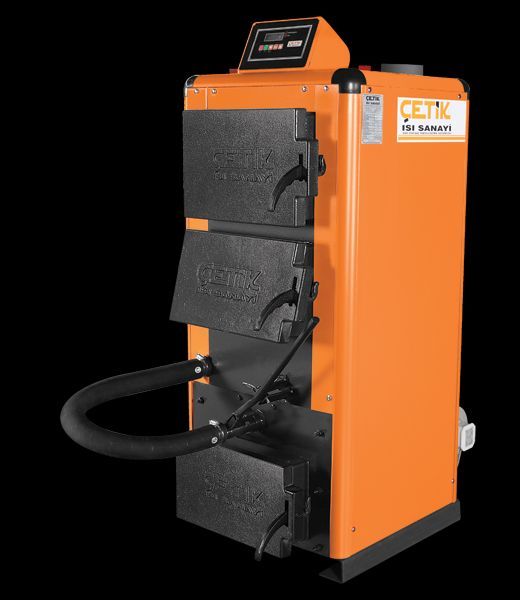

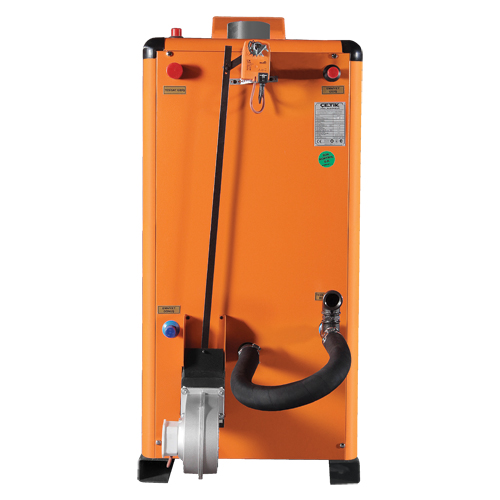

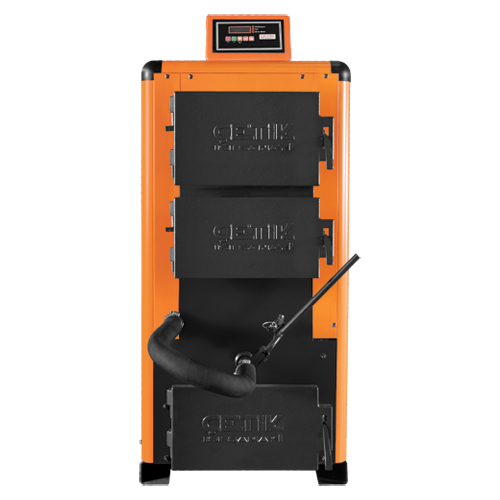

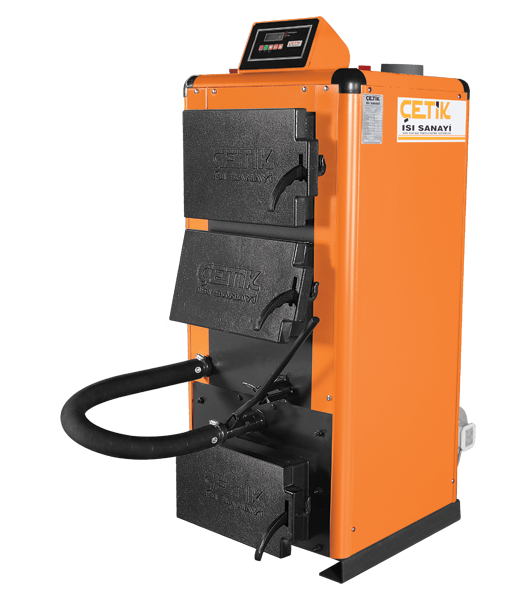

wood boiler 23- 104 KW

Product details
Function:house central heatingadvantage:easy to clean
Gasoline type:Russian coalAvailable fuel:timber logs
output:hot waterport:port of your wish
Design Fuel:coal fuelShipping Details:Ships within 0 days after payment
Material:Special Boiler Steel Platepressure:low pressure
Operation:hand burnttype:Once through
Origin:Konya, TürkiyeHealth status:new
Certification:CE, ISO, UKR, EACpayment terms:wire transfer, cash
Control System:Automatic Control Systemstructure:water pipe
Packaging Details:IPPC 15 wooden palletfuel:coal burning
Boiler type:Vertical hot water boilerKey words:wood fired boiler
Warranty:2 yearsSupply capacity:15,000 pieces per year
After-sales service provided:Engineers available to service machinery overseasbrand:CETIK
style:verticalusage:power plant

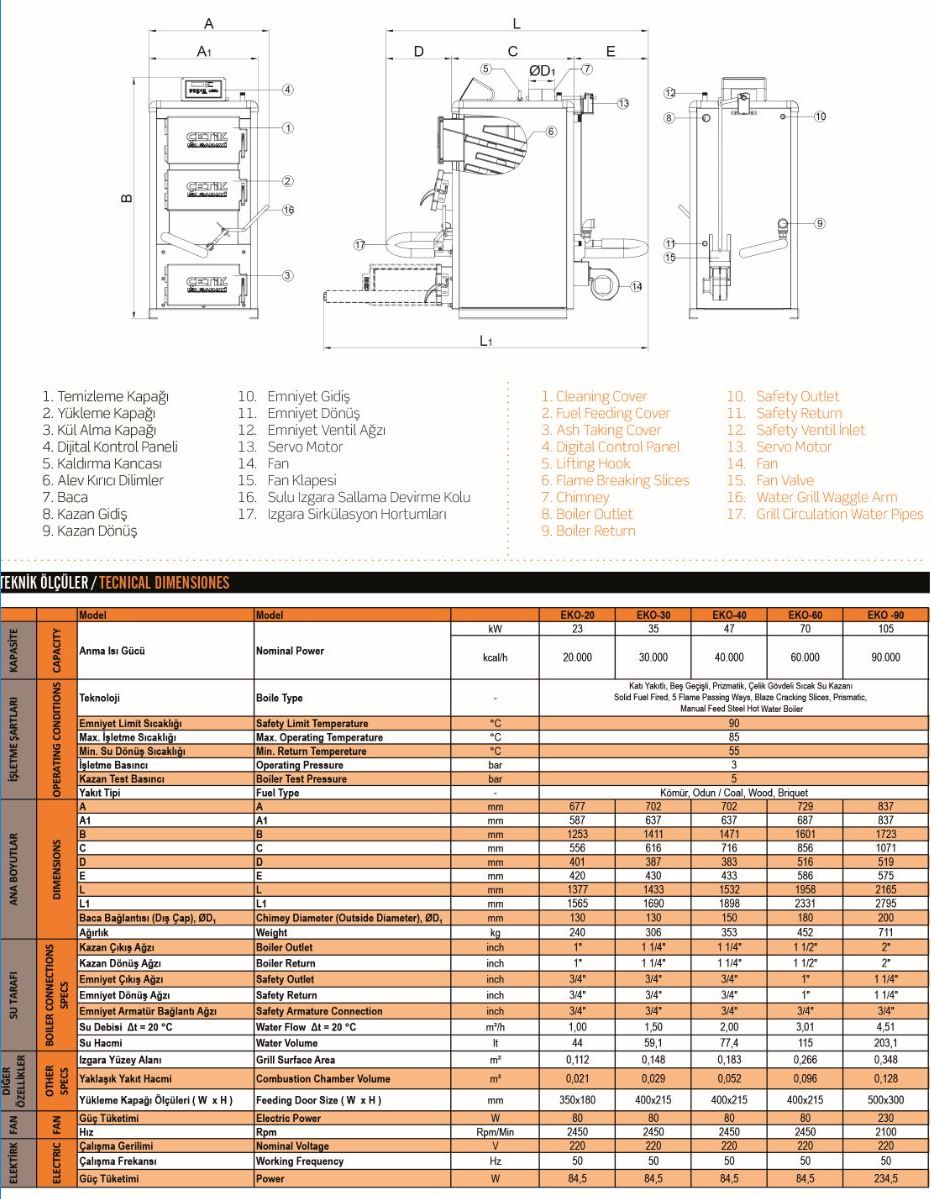

23- 104 kW capacity





high efficiency
Ergonomic control panels, boiler tubes and fire attack zones, with high efficiency, together result in a special interior design and water grilling system.
use of facilities

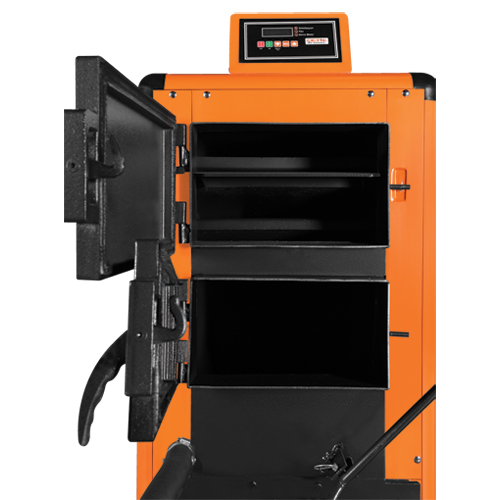

Refueling and firing are a breeze with the wide feed cap. From the easy-to-use control panel, the boiler automatically works at peak efficiency and economy by adjusting fan speed and boiler temperature regulation. Thanks to the movable and rotating water grill, simply move the ash arm to pour the ash into the ashtray.
combustion control system
The combustion chamber is capable of daily capacity. After the fan and boiler thermostat are adjusted, the air is evenly dispersed into the boiler through the adjustable fan speed control. Boilers are brought to state in a short time by special interior design. After entering the state, the fan stops, and the boiler burns through natural ventilation. When the boiler reaches the desired temperature, the servo motor closes the fan valve %100 and the chimney valve %80 and the boiler goes into sleep mode. Thanks to this system, the combustion is completely under control, saving the economy of fuel and electricity consumption.
Fuel Professional
Our solid fuel boilers offer designs for high combustion efficiency and low flue gas emission values ​​when firing coal, lignite, wood and wood derived fuels.
aesthetic design
The boiler body is completely isolated from heat dissipation, and the water grill absorbs heat. The exterior view of the boiler is painted with electrostatic paint to give the boiler an aesthetic appeal.
Friends of the Environment
Thanks to the special interior design, combustion and post-combustion gases benefit to the maximum. Hazardous exhaust gases and stack temperatures also increase the minimum.

It works on all types of wood and coal.



Our boilers are sold in 60 countries; Macedonia, Bulgaria, Estonia, Lithuania, Latvia, USA, Italy, Georgia, Peru, Ukraine, Russian Federation, Korea, Spain, India, Austria, United Kingdom, Bosnia Herzegovina, Ireland, Hungary, Brazil , Chile and our executive distributor to Romania. All of our references are very strong.



We use top quality materials and employ qualified workers.

* Thanks to the internal structure and servo motor system, Cetik Isi Sanayi boilers are designed for optimum efficiency, economical use of fuel. All of our boilers are designed according to 4 ways of passage. Thanks BAFIL, (4 passes) system; efficient use of thermal energy from fuel. It is more economical compared to other boiler brands that use ductwork. In tests conducted at the Mechanical Engineering and Environmental Engineering Laboratory of the University of Selcuk, it was proven that the coal you burn returns heat again at a rate of 88%.

*We have used the water baking system in the design of the fully automatic boiler. Because the temperature in hell (combustion chamber) is so high, the durability of steel is not so long, and it will generally break down. But with the water roasting system, this temperature will not be so high. Cold water is passed through this water oven into the hell (combustion chamber), thus, the temperature can be kept within the standard range.



You buy 1 computer to try it out and try it out, then you make a decision. We are very pretentious..
