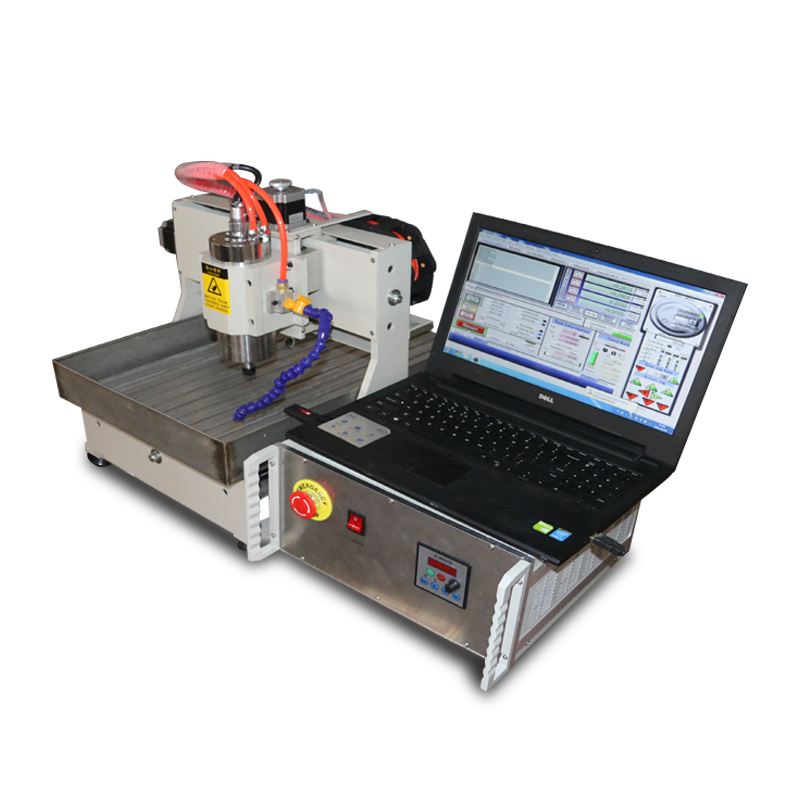

Mini 3030 4040 desktop cnc engraving machine engraving and milling machine

Product details
brand:quantumType of machine:digital signal processor
Origin:ChinaControl System:MACH3/Ncstudio/DSP
Package preview:port:Qingdao
Main selling points:competitive pricerated power:800W
Local service location:not anySpindle speed:24000
Core component warranty:1 yearMechanical test report:if
Marketing Type:New Products 2020After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services

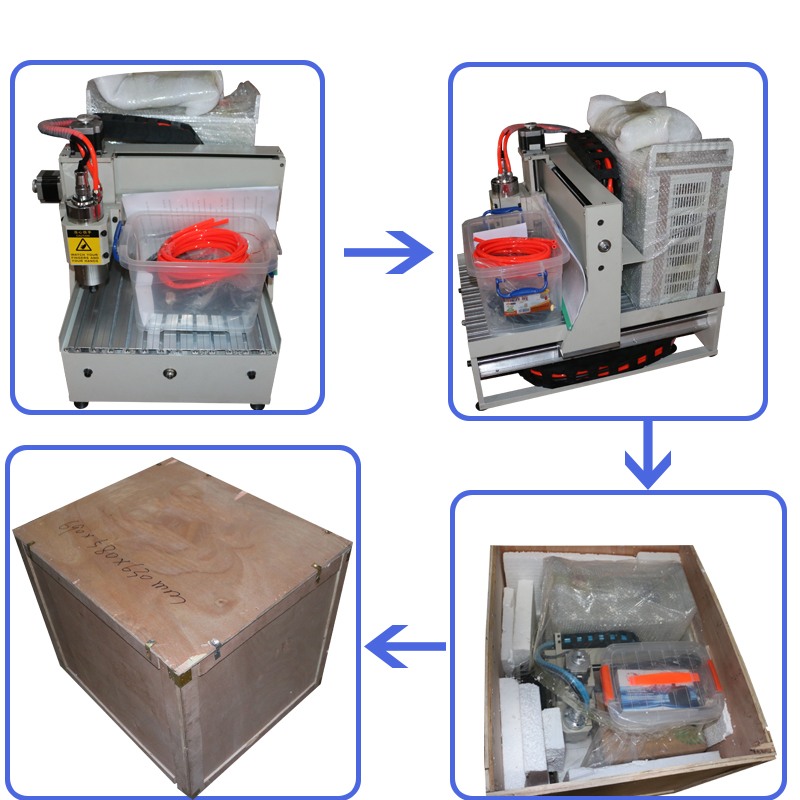

Warranty:1 yearPackaging Details:plywood case
After-sales service provided:On-site installation and commissioning training video technical support online supportaspect:670*500*450mm
application:Metal and Non-Metal MaterialsEngraving speed:0-2000mm/min
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramVideo shipment inspection:if
weight:150KGSCore components:controller ans pindle
Feeding height:80mmHealth status:new
Milling cutter diameter:3-6mmApplicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
Showroom location:not anySupply capacity:100 sets per month
software:MACH3/TYPE3/NCSTUDIO/ARTCAM/UCANCAM
Product Description

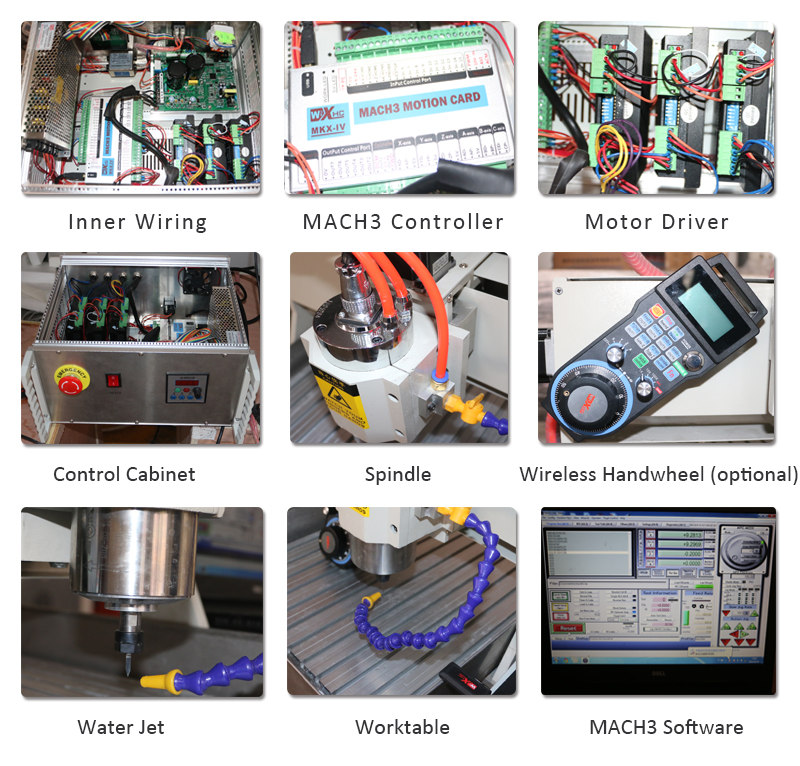

Machine profile:

  • 10mm thick metal plate body
  • Ncstudio, Mach3orRicao A11controller
  • Working size: 300*400*150mm
  • Spindle power:800W water-cooled spindle (built-in 4 imported SKF bearings)
  • Ball screw drive
  • lead lightMotors and Motor Drivers
  • 800WInverter
  • Taiwanguide
  • Thick T-slot extruded aluminum profile
  • Art CAMsoftware (with full tutorial manual and video)

Applicable industries:

  • Wood processing: various handicrafts, glass, ceramics, metal processing.
  • Advertising: Engraving and cutting various labels and license plates.
  • Crafts: engraving text and graphics in any language on gifts and souvenirs.

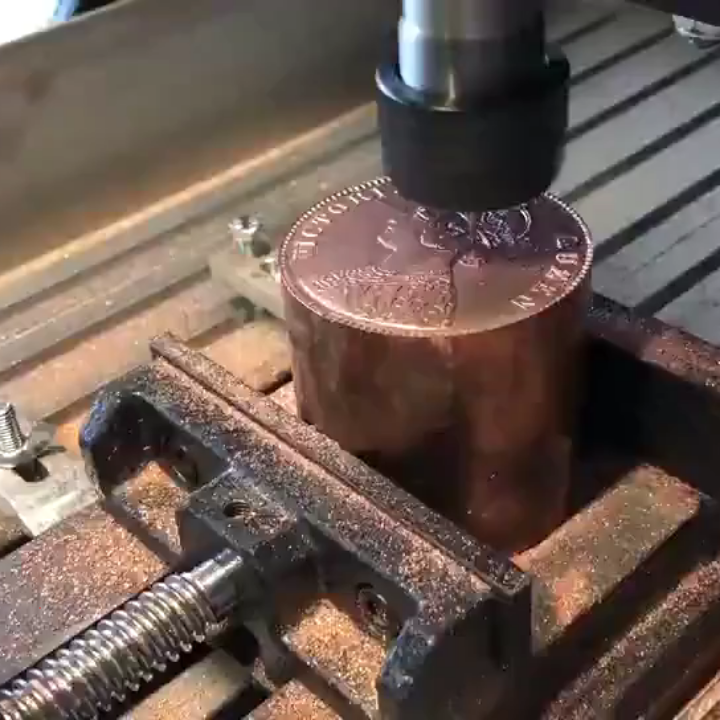

Applicable materials:

  • Wood, aluminum board, plastic, MDF, mdf, corrugated board, PVC, nylon, pp, pe, acrylic, crystal, marble, copper, brass.

Details:

effective working area

(X=300mm)*(Y=400mm)*(Z=80mm)

Worksheet:

T-slot table

guide

round rail

drive mode

X, Y, Z axis screw drive

Driver & Motor

Stepper Motor Drivers and Stepper Motors

Spindle

800w water-cooled spindle

Spindle speed

0-24000

spindle collection

3.175mm/6mm

voltage input

AC220V 50/60Hz

sailing speed

0-3000mm/min

Engraving speed

0-2000mm/min

machine precision

<0.05/300mm

Control System

Mach3/Ncstudio/DSP controller

compatible software

ArtCAM, Type3, Ucancam, Castmate, CorelDraw, AutoCAD, JDpaint and other CAD&CAM software

Order

Command: G-code. U00. Um. Plt. Britain

Maximum power consumption

1KW

Machine size

730*650*575mm

Package Dimensions and Weight

790*700*695 mm
