Automatic Plastic Straw Extruder/Making Machine Offered by KUNCHI

Supplier: Zhengzhou Kunchi Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr John Xia
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Engineers available to service machinery overseas	Straw diameter:	2-13mm normal
Certification:	CE certification	Name:	Straw Making Machine
Voltage:	380V	Straw Color:	1/2/3 colors
port:	Shanghai	Supply capacity:	10 sets per month
Dimensions (LWH):	9.51.21.7m	capacity:	1000-2000 pieces/min
weight:	1000 kg	Health status:	new
Origin:	Zhejiang, China	Cutting angle:	90/90
Warranty:	2 years	strength:	11KW
application:	straight straw	raw material:	polyethylene polypropylene
payment terms:	L/C, T/T, Western Union	brand:	Kunchi
Packaging Details:	wooden box

Product Description

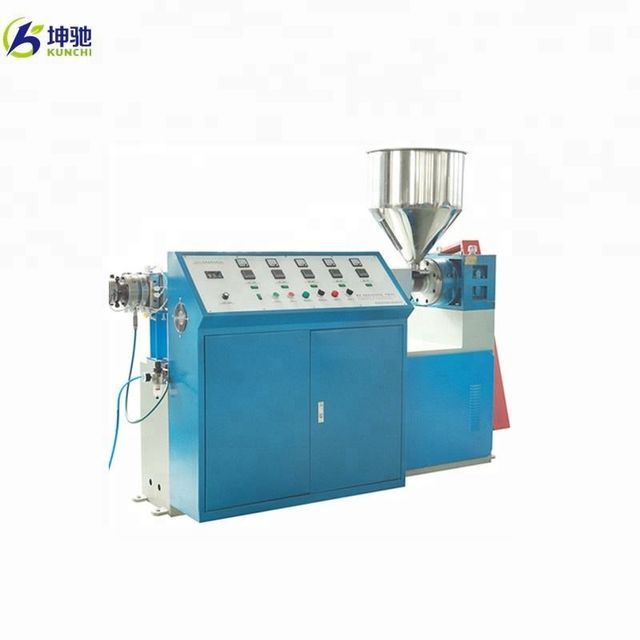

Plastic Straw Making Machine

Beverage Straw Machine

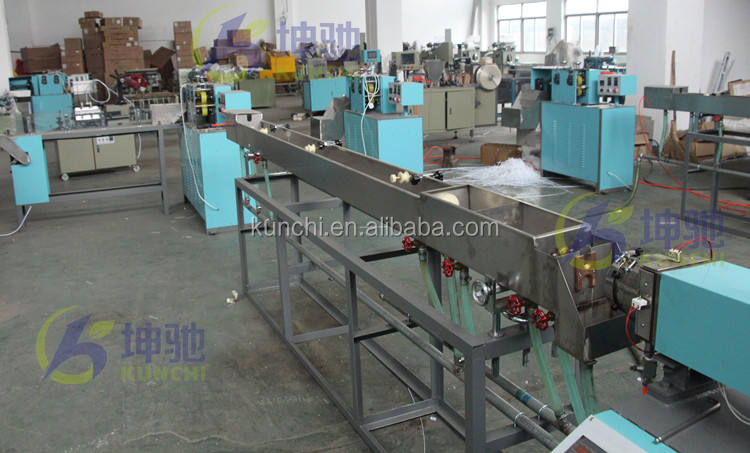

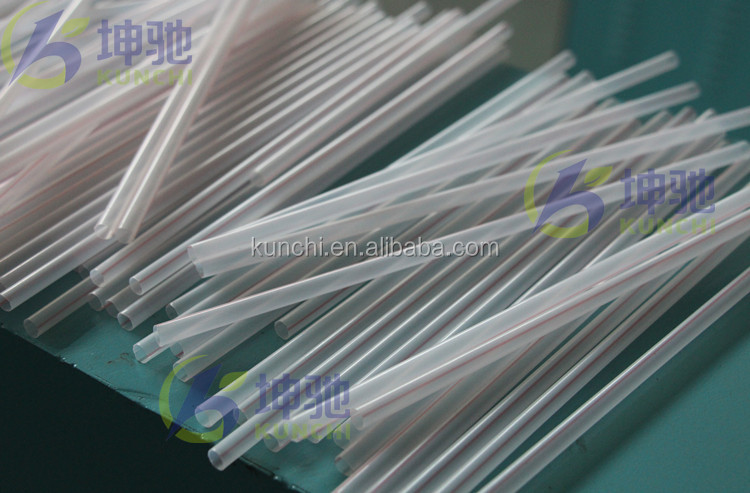

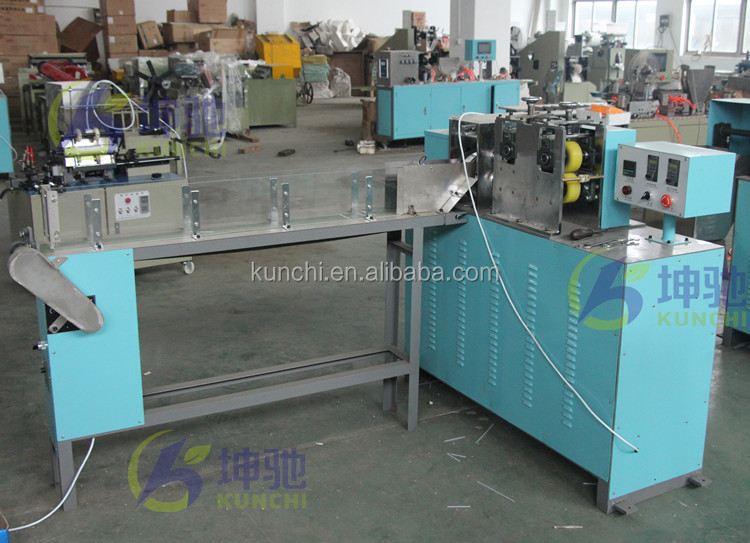

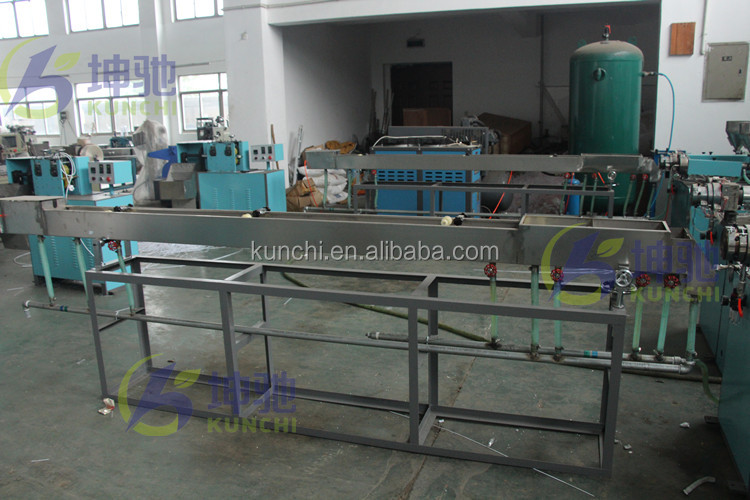

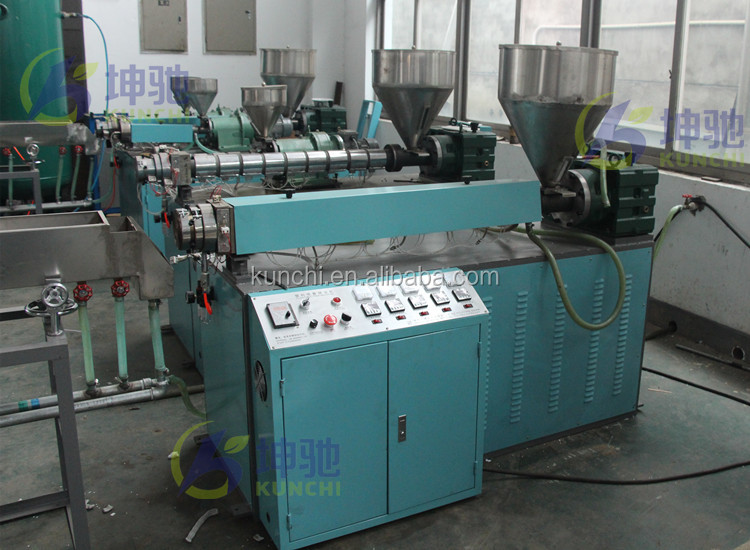

The plastic straw machine mainly includes a straw extruder, a cooling device, and a drawing and cutting machine. Using PP or PE pellets as raw materials, it can be made into 1-color, 2-color, and 3-color straight plastic straws.

This plastic straw making machine is also popular for making cotton swab sticks, candy bars, and more.

* Main technical parameters of pipette machine

Model	JX-011	JX-012	JX-013
Main screw parameters	Diameter: 50mm/28:1
Secondary screw parameters	0	1x25mm/20:1	2x25mm/20:1
Production	20-40kg/hour, 1000-2000 pieces/minute
Extruder main motor	11 kW
sub motor	0	0.75kw×1	0.75kw×2
traction motor	0.75kw×1
cutting motor	0.75kw×1
Temperature Controller	5	8	11
Cooling unit length	3500mm
product specification	Diameter: 2-13mm, straw thickness: 0.05-1.00mm, length: above 5mm
straw color	monochrome	two-color	three colors
size	9.51.21.7m	9.51.31.7m	9.51.51.7m
weight	1000 kg	1100 kg	1200 kg
For details, please send inquiry to us.
