Equipment for dry ice blasters and dry ice cleaners

Product details
Dimensions (L*W*H):800mm*500mm*880mmPackaging Details:wooden box
Warranty:1 yearapplication:Automobile tires, printing presses, casting molds, power plant boilers
Voltage:Voltage according to your countrypower supply:220V 10A
port:XiamenProduction capacity:99%
place of origin; place of origin:ChinaSupply capacity:100,000 sets/year
payment terms:letter of credit, wire transferfeature:impact microburst effect
Dry Ice Capacity:30kgstrength:200w
brand:King KongTotal machine power:200w
Certification:CE, ISO, TUVAfter-sales service provided:Free spare parts, video technical support, online support

Applications of dry ice blasting equipment:
Cleaning of large equipment such as automobile tires, printing presses, casting molds, and power plant boilers.

Working principle:
Impact Microburst Effect - Dry ice particles hit the surface at high speed and burst into gas instantly, creating a microburst effect that peels the stain off the surface.

Thermal expansion and cold contraction - dry ice - 78.5 degrees, the dry ice touches the surface instantly, and the stain is contracted by cold, making it easier to peel off the surface.

Air Blowing - Dry ice sublimates from solid state to gas, expands about 800 times in volume, and the powerful air blows away the stains, so as to achieve a dry and residue-free cleaning effect.

Equipment composition and characteristics:

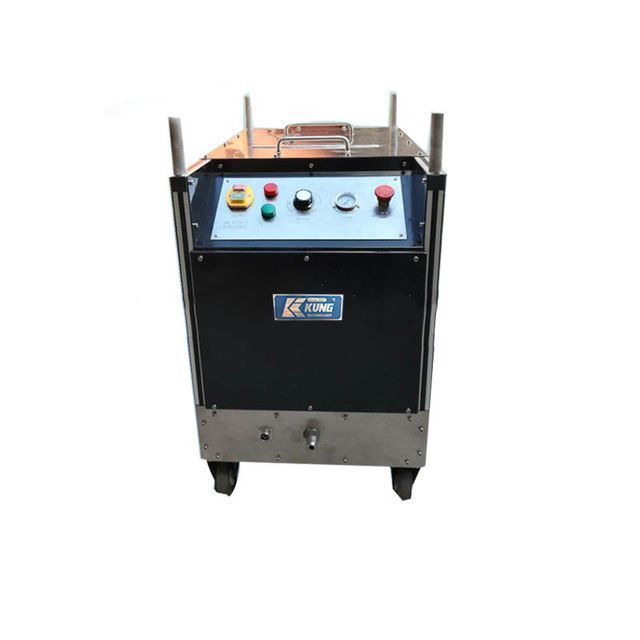

1. This model is a single-tube positive pressure injection, and the impact is greater than that of a double-tube. It is mainly composed of a base with casters, a hopper suspension system, a rotating ice supply system, a vibrating feeding system, a stirring system, an electric control system, an air supply system and a spray gun system. Add dry ice to the machine, connect the air source and 220V single-phase electricity, point the spray gun at the dirt surface and press the switch on the spray gun to clean it.

2. Using a special rotary feeding design, the ice storage system is specially designed in the ice feeder, which makes the dry ice cleaning and cleaning machine more powerful. The principle is that the company designs and manufactures completely by itself. The stator and rotor in the device have no contact friction, and the service life is extremely long. Different from the products on the market, there are two non-metal friction pads between the stator and the rotor, which are wearing parts, which are difficult and expensive to replace.

3. The hopper is designed with a vibrating feeding device, coupled with an ingenious hopper suspension connection structure and an ingenious flexible suspension system, so that the hopper can be unloaded smoothly without caking, without the use of air hammer impact, which simplifies the system and reduces the failure rate.

Advantages of dry ice blasting equipment:
Dry ice cleaning can replace the original manual cleaning, avoid the discharge of hazardous wastes and solutions, improve work efficiency, save energy consumption, and extend the service life of equipment.

Technical data:

Power (V)220V 10A
Machine total power (W)200w
dry ice capacity30kg
machine weight120kg
Air supply pressure (bar)0.3-1Mpa
Working pressure (bar)0.3-0.8Mpa
Air consumption (m3/minute)3 meters3/minute
Dry ice consumption (kg/min)0-3.0kg/min (adjustable)
Dry ice specification (mm)φ3mm
Equipment size (mm)800mm*500mm*880mm
