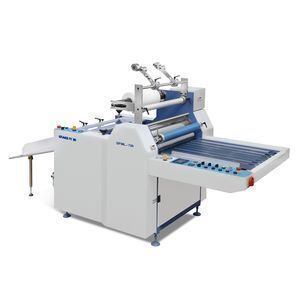

electric laminating machine SFML-720

Product details
Certification:CE;Voltage:380v;
Weight:1000kgs;Year:2013;
After-sales Service Provided:Engineers available to service machinery overseas;Packaging Detail:wooden case;
Power(W):11.75;Brand Name:Guangming;
Warranty:One Year;Payment Terms:L/C,T/T,Western Union;
Dimension(L*W*H):3980*1550*1450;Place of Origin:Zhejiang China (Mainland);
Color:Grey;Condition:Used;
Supply Ability:500 Set/Sets per Year;Port:Ningbo,China;



YFML Series of Semi-auto Laminating Machine





Applications: to suit pre-glued film lamination







Configuration:

1. CE certificate

2. Manual paper feeder

3. Paper regulating plate is adjustable upon paper size to regulate manual paper feeding.

4. Heating method: Electrical tube heater makes temperature rise quickly, and the temperature is adjustable upon laminating requests.

5. Pressuring method: Automatic hydraulic system provides big pressure, and the pressure is adjustable upon laminating requests.

6. Anti-curvature device: The laminated paper goes through anti-curvature device and wont curl after cut.

7. Film cutter: If the width of film roll is longer than papers width or length, then film cutter can cut the redundant film.

8. Perforating wheel perforates holes on film edge for automatic cutting to laminated paper.

9. Paper receiving table: the cut paper is sent to paper receiving table. Height of the table is adjustable.

10. The machine adopts one-piece structure design which makes the machine running stable and lengthens the machines lifetime.

11. SCHNEIDER frequency converter realizes infinitely variable speed, and makes the machines running easy.

12. OMRON electrical and photoelectric control parts are equipped to guarantee good precision and safety of the machine running.

13. 3 models with different sizes for choice as bellow:





Technical Parameters:

Model

YFML-720

YFML-920

YFML-1200

Max Paper Size

620×880mm

820×1040mm

1100×1040mm

Laminating Temperature

60-130

60-130

60-130

Paper Thickness

125-500g/m²

125-500g/m²

125-500g/m²

Max Laminating Speed

0-30m/min

0-30m/min

0-30m/min

Main Power

9.5kw

10.25kw

11.75kw

Total Weight

780kg

880kg

1000kg

Overall Dimensions

3850×1150×1450mm

3980×1350×1450mm

3980×1550×1450mm
