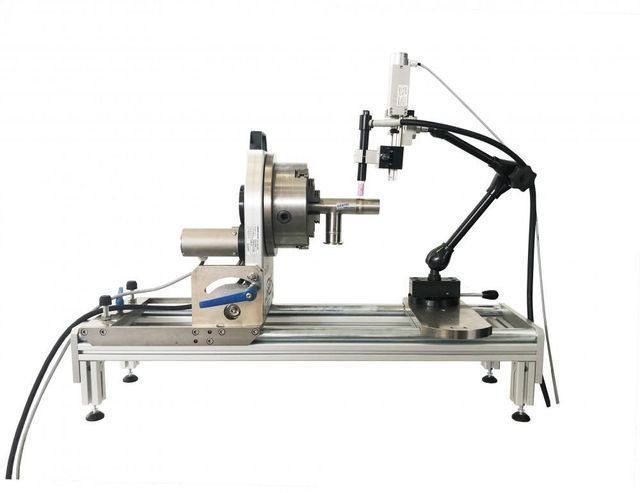

Turntable system for orbital welding of a large number of non-orbital components - Turn 230 S, Orbitec
-
Supplier: Orbitec GmbH -
Region: Hesse, Germany -
Contact: Stefan Osswald -
Price: $1.01 /piece -
Min. Order: 1 piece
Product details
| Video external inspection: | Not available | After-sales service provided: | On-site installation and debugging training, on-site maintenance and repair services, online support, video technical support |
| payment terms: | Wire Transfer, Western Union, Cash | Core Components Warranty: | 2 years |
| 1. Scope of application: | DA 10 - 230 mm | 0.393 - 9.055'' | Showroom location: | Germany |
| brand: | Orbital Technology | After Warranty Service: | no signal |
| 6. Weight: | 88kg | 7. Dimensions (LxWxH): | 1020 x 360 x 750mm |
| place of origin; place of origin: | Germany | Core components: | other |
| port: | seligenstadt | Mechanical test report: | Not available |
| Applicable industries: | manufacturing plant | Local service location: | Germany |
| Packaging Details: | 1. Our products are packed by sea according to international export packing standards: carton, plastic bag, wooden pallet or iron/steel pallet or container. 2. We can also provide carefully packaged products according to customer requirements. Please contact us for more details. 3. The package includes a full set of documentation and (if necessary) the operation and maintenance and engine operating manual, spare parts list and a set of inspection certificates issued by the manufacturer. | 3. Chuck: | Axial adjustable three-jaw chuck |
| Marketing Type: | normal product | Main selling point: | easy to operate |
| Weight (kg): | 88kg | 5. Power transmission: | maximum. 300A |
| Health status: | new | 2. Max. Horizontal position load: | 50kg |
| Warranty: | 2 years | 4. Rotation range: | 0 - 90 degrees stepless |
Product Description
Rotary table, especially suitable for a large number of track parts, can be connected to all Orbitec controllers.
The package includes:
- Turning device
- Three-jaw chuck
- Interchangeable jaws
- collet key
- Durable multi-position torch arm with central mechanical clamping
- ground wire
- Interconnect cable with wires and AVC sockets
Special versions available on request.
Optional:
- Turn 230 S machine torch with 4m hose kit
- Manual adjustment for Turn 230 S
- Assembled AVC unit for Turn 230 S
- Outlet bracket kit for Turn 230 S
- Support for Turn 230 S
feature:
| Scope of application | DA 10 - 230 mm | 0.393 - 9.055'' |
| maximum. horizontal position load | 50kg |
| Chuck | Axial adjustable three-jaw chuck |
| Rotation range | 0 - 90 degrees stepless |
| power transmission | maximum. 300A |
| weight | 88kg |
| Dimensions (LxWxH) | 1020 x 360 x 750mm |
picture:
