2.4G Wireless Digital Audio Module/Wireless Speaker Transmitter/Wireless Speaker Adapter (Receiver & Receiver Set)

2.4G Wireless Digital Audio Module/Wireless Speaker Transceiver/Wireless Speaker Adapter (Transceiver and Transceiver Kit)

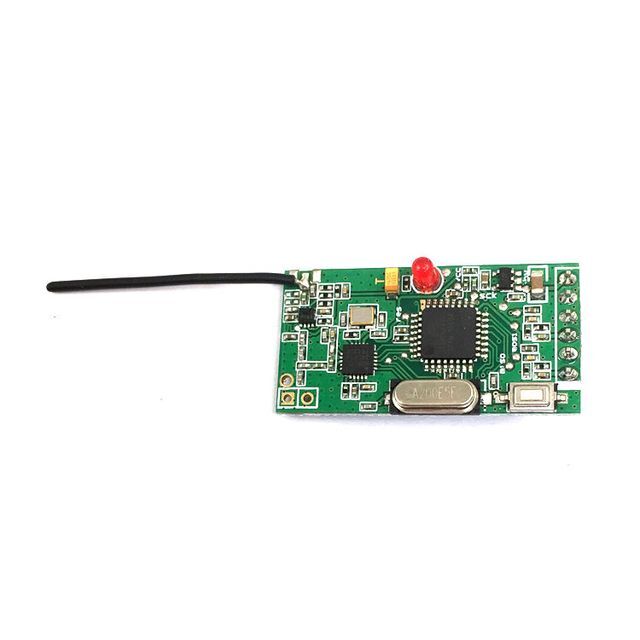

1. Module introduction:
Using the latest 2.4G wireless transmission technology, 44.1K sampling rate, 24bitAD sampling to achieve lossless high-fidelity digital audio transmission, 16 optional working channels. The maximum distance in the open field is 100 meters. Once received and sent, a wireless audio transceiver system can be formed, which is simple and convenient.

2. Function description:
Input signal: analog sound
Output signal: analog audio
Working voltage: 5V
GFSK digital modulation/demodulation mode;
Frequency response from 20Hz to 20KHz;
90dB audio dynamic range;
- Receive sensitivity 85 dBm, adjacent channel rejection 45 dB, image rejection 30 dB;
Frequency response from 20Hz to 20KHz;
44.1K digital audio sampling rate, 24bit sampling quantization level;
