Jinrui environmental protection organic fertilizer production equipment animal manure waste composter

Product details
application:Poultry manure fermentation treatment, livestock and poultry waste treatmentAfter-sales service provided:On-site installation, video technical support, online support
Main selling point:automaticport:Qingdao Port
brand:Jin Ruifu , Jin Ruifupayment terms:Western Union, T/T, MoneyGram
type:Organic Fertilizer Fermenterplace of origin; place of origin:Shandong China
feature:automaticApplicable industries:Food and Beverage Factory, Farm, Home Use
Packaging Details:empty packagingMarketing Type:New Products 2020
Video external inspection:ifAdvantage:Small footprint / short cycle / stable fermentation / no secondary pollution
Voltage:380vHealth status:new
Core Components Warranty:1 yearDimensions (L*W*H):custom made
weight:9600kgRaw materials:Stainless steel
usage:Organic waste recycling, waste treatment, manure recyclingShowroom location:the Philippines
Packaging Preview:Warranty:2 years
Total power:41.2WCore components:PLC, engine, gearbox, motor
Moisture percentage after fermentation:About 20-30%Supply capacity:10 sets per month
Mechanical test report:ifFunction:Fermentation of livestock manure
Product Description

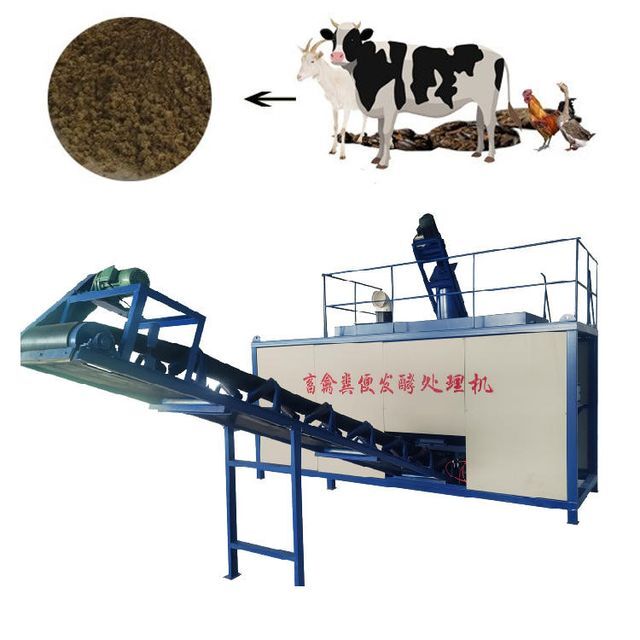

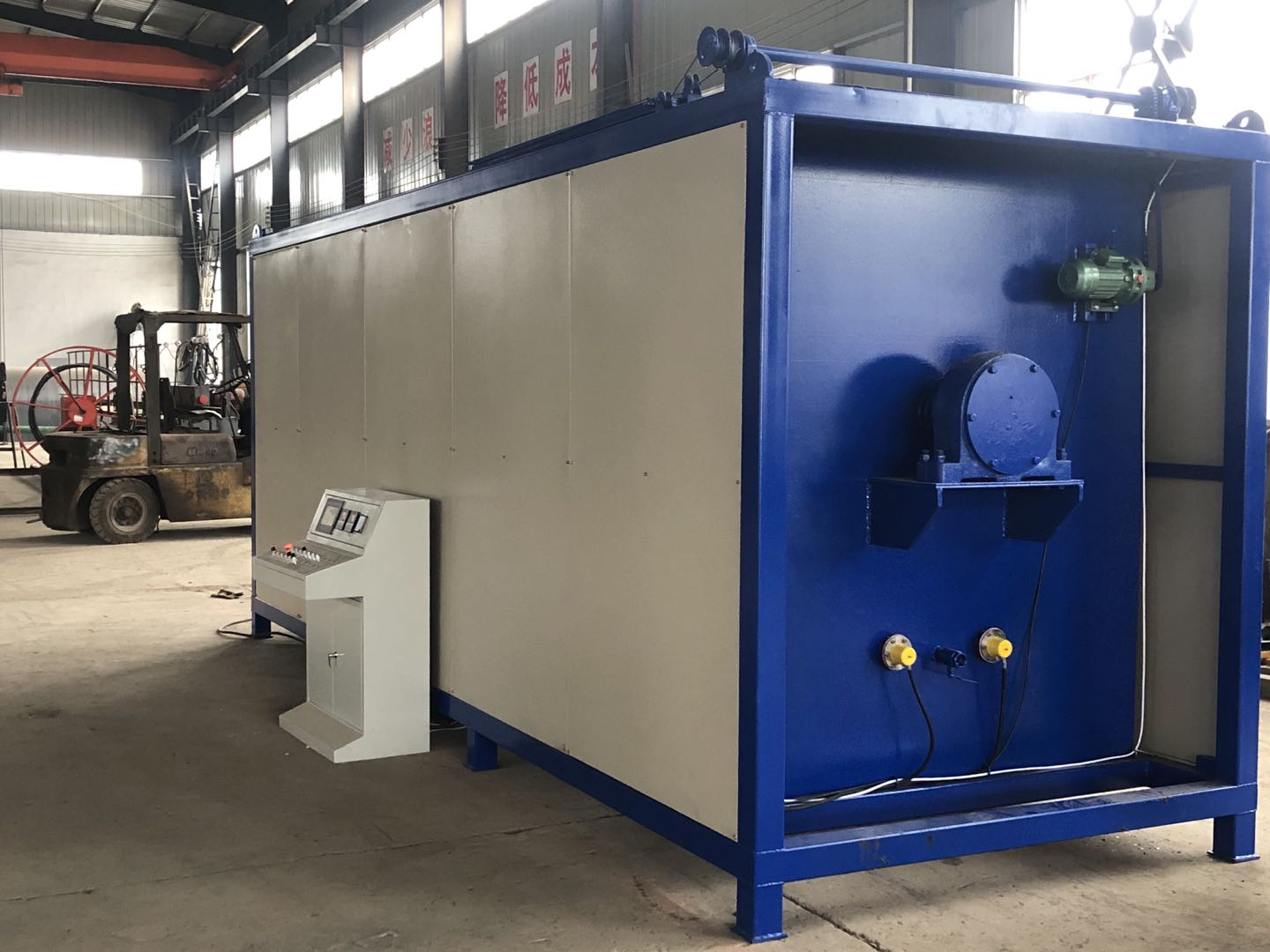

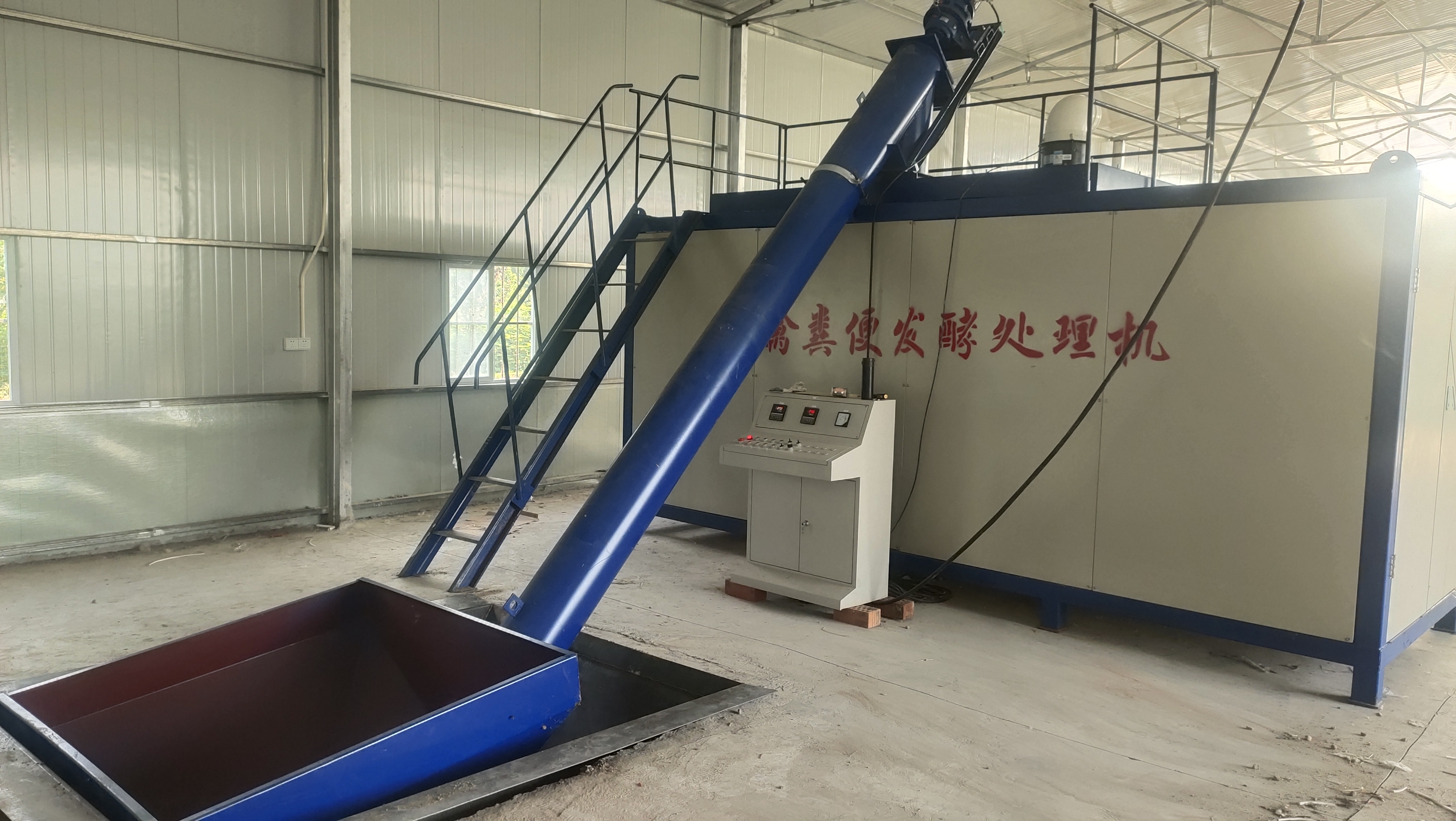

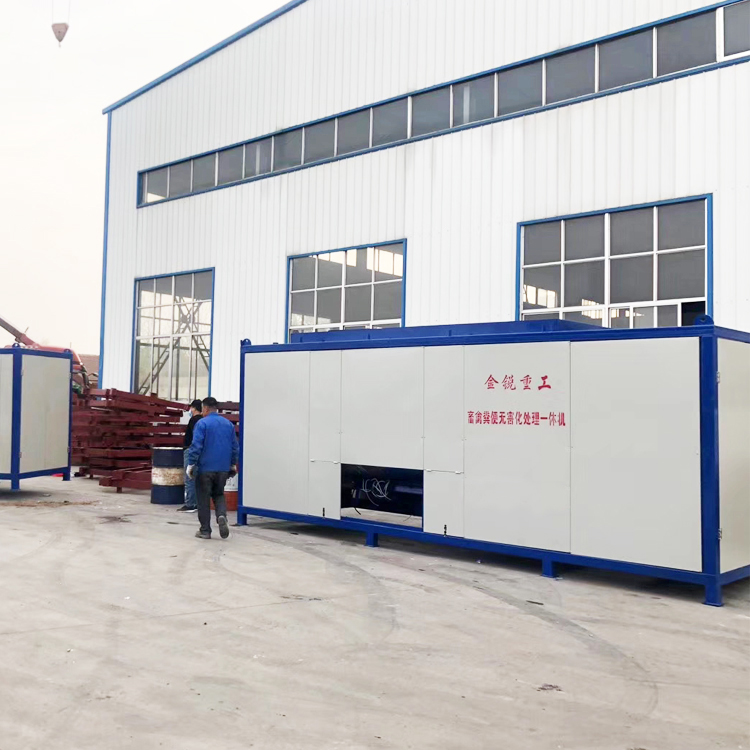

Chicken manure fermentation equipment,Chicken manure processing equipment,Livestock and poultry manure treatment equipmentAlso known asLivestock and poultry manure intelligent fermentation integrated machine:

High-temperature fermentation is carried out for livestock manure from farms and excess sludge from sewage treatment plants.It is suitable for different types of farms such as pig farms, dairy farms, chicken farms, etc.

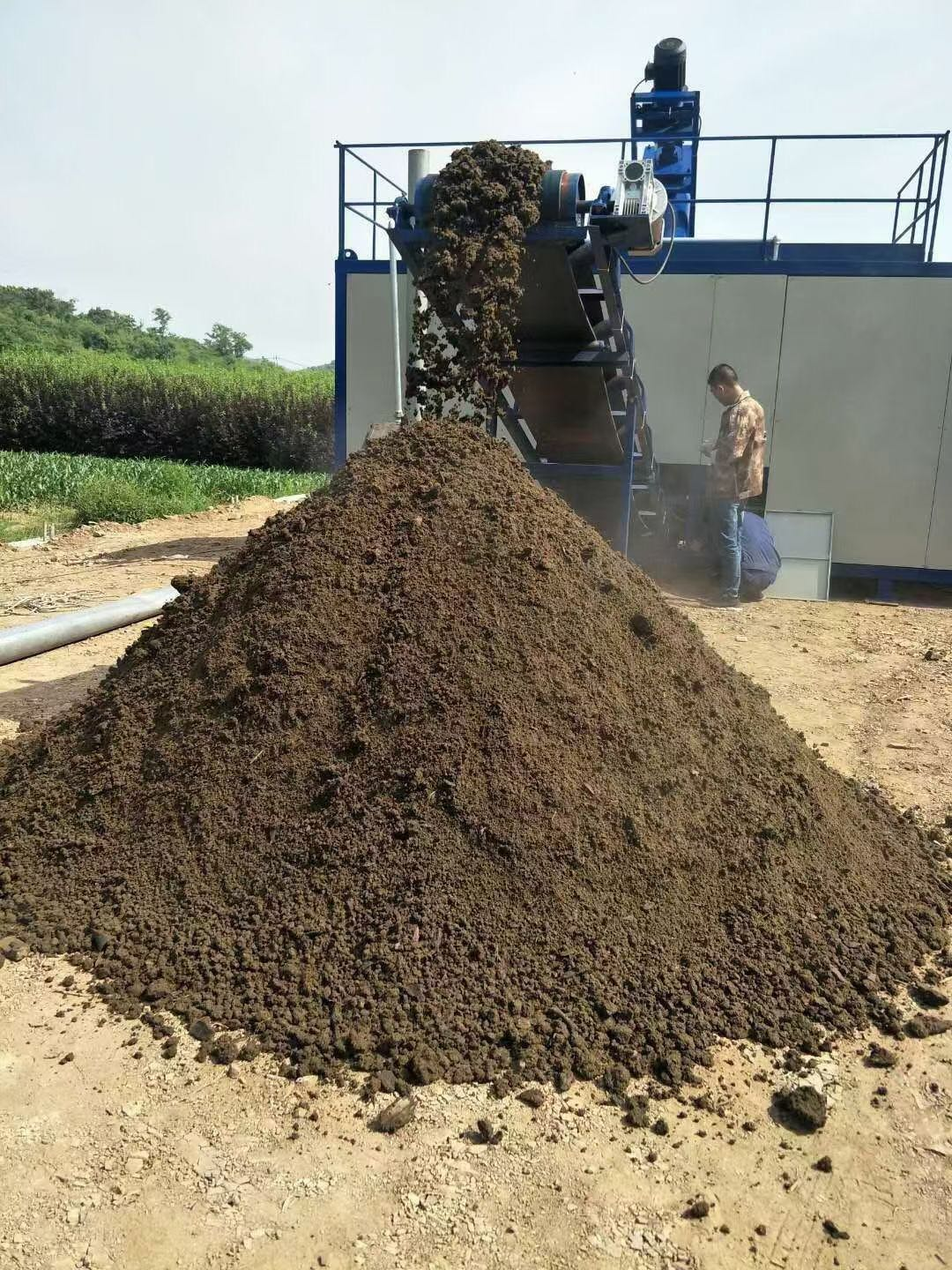

Self-developed biological bacteriaJinrui Heavy Industry MachineryCombined with feces, the feces can be deodorized in a short time after entering the equipment. The equipment is a trough structure, and the internal stirring shaft rotates regularly. Combined with the high temperature fermentation process, the eggs are sterilized and sterilized. The feces are fermented in the equipment for 8-10 hours and then discharged. After 5-7 days of stacking on the ground, it can be bagged.
All indicators of organic fertilizer far exceed national standards.
Model
JR11FFQ-6
JR11FFQ-8
JR11FFQ-10
JR11FFQ-15
capacity
6m³
8m³
10m³
15m³
main motor power
11kW
15kW
15kW
2*11kw
heating power
20kW
20kW
30kW
30kW
screw conveyor
325mm*6m
425mm*6m
425mm*6m
425mm*6m
Screw conveyor motor power
4kW
4kW
5.5kW
7.5kW
unloader
500mm*6m
500mm*6m
500mm*6m
500mm*6m
Unloader motor power
1.1kw
1.1kw
1.1kw
1.5kW
volume
5m*1.8m*2.1m
5.7m*2m*2.4m
6m*2m*2.4m
5.5m*3.5m*2.4m
product description:

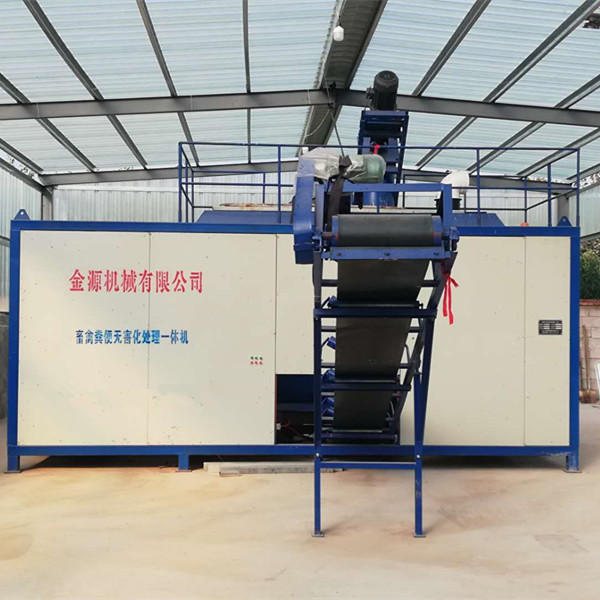

1. Box structure
The internal stirring shaft rotates regularly, combined with high temperature fermentation technology, to kill eggs and sterilize. The feces can be deodorized after 2-3 hours in the equipment, and can be discharged after 6-8 hours of fermentation. All indicators of organic fertilizer far exceed national standards.

2. Production raw materials
Rural garbage or livestock and poultry manure, accessories: cassava residue, mushroom residue, straw powder, peanut shell powder, corn cob, etc. Add auxiliary materials to enhance the permeability of the material and absorb the moisture in rural garbage or livestock and poultry manure. Regular mixing increases the oxygen content of rural waste or livestock manure during fermentation.Without auxiliary materials, the fermentation process is slow, the air permeability is poor, the microorganisms are greatly reduced, the processing is slow, and it is easy to produce peculiar smell. Oxygen is needed in the aerobic fermentation equipment, so that the microorganisms in the equipment can multiply and spread rapidly, and the organic fertilizer can be fermented.

3. Production process

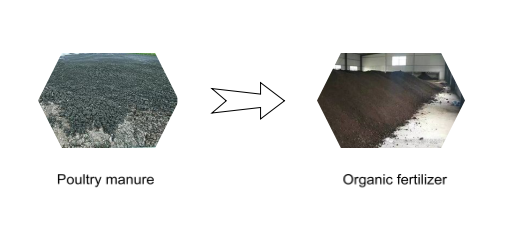

Rural garbage or livestock and poultry manure, auxiliary materials, microorganisms - adjustment of carbon and nitrogen ratio and moisture - transportation of feed - high temperature fermentation and deodorization, insecticide, dehumidification, decomposition - discharge.
