Small 500-1000L per hour uht milk processing plant uht milk sterilizer

Supplier: Zhengzhou Ohfu Industry Enterprise Co., Ltd.
Region: Henan, China
Contact: Ms Summer zhao
Price: $2000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Discharge temperature:	less than 65	Dimensions (LWH):	12009201400mm
Supply capacity:	665 uht milk sterilizers per month	Sterilization temperature:	115-135
capacity:	0.5-4t/h	Showroom location:	not any
Material:	Stainless steel	heating time:	4-6 seconds
Health status:	new	payment terms:	Western Union, wire transfer
Applicable industries:	Food and Beverage Plants, Farms, Food Stores, Food and Beverage Stores	Warranty:	1 year
After-sales service provided:	Engineers can repair machinery overseas	Core Components Warranty:	1 year
Mechanical test report:	Not available	strength:	2.2kW
Core components:	other	Processing Type:	Fruit Juice Mlik Water
Minimum order quantity:	1 unit	port:	China's main ports
model:	HF-1	weight:	210kg
Video external inspection:	if	brand:	OHFU
Package:	wooden box	Voltage:	380V
Steam press:	Less than 0.7MPa	Processing:	Sterilizer
Marketing Type:	normal product	place of origin; place of origin:	China
Packaging Details:	wooden box	Name:	uht milk sterilizer

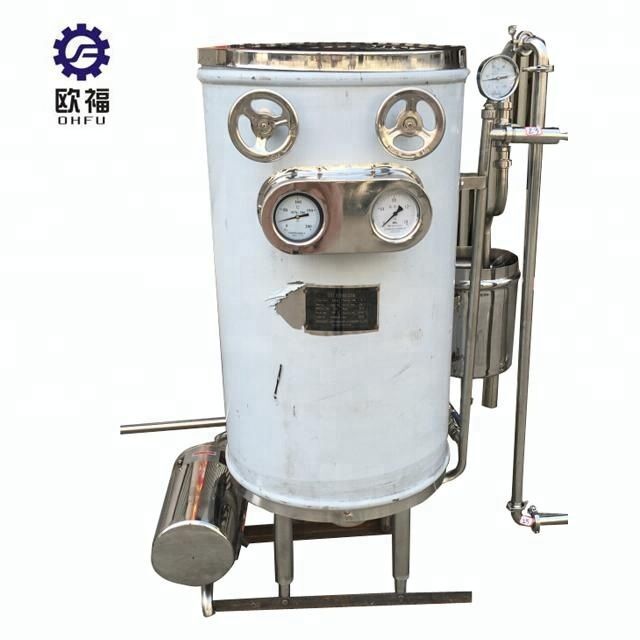

Small 500-1000L per hour uht milk processing plant uht milk sterilizer

Product Description

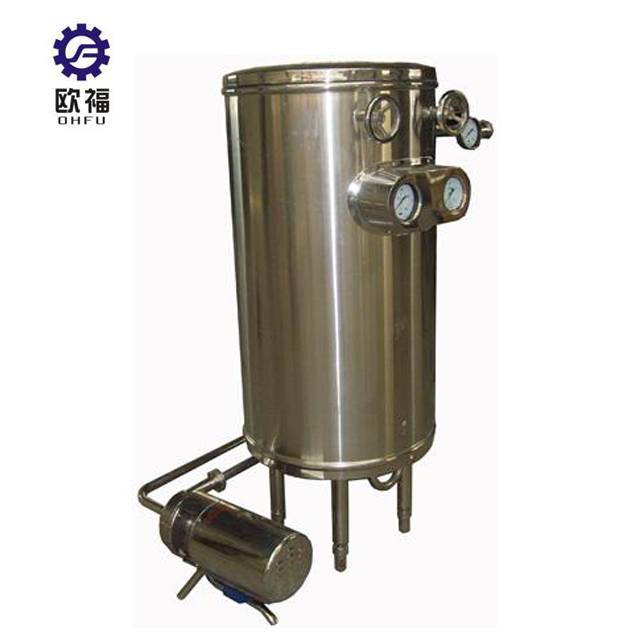

UHT milk sterilizerUsing the most advanced welding technology, imported high-quality polished stainless steel pipes are selected. Suitable for fresh milk, beverages, alcohol, etc. If completed with a high pressure homogenizer, it can also be used for thicker materials.
Suitable for sterilization of liquid and unpackaged products such as milk and other beverages

Advantage:

1. Continuous production, extremely short sterilization time;

2. The heating time is short, and high-quality products can be obtained;

3. Due to the use of UHT, the sterilization efficiency is very high

4. It is used in series with a centrifugal pump or a high-pressure homogenizer, which has a wide range of applications and is suitable for sterilization of high-viscosity materials;

5. Due to the design of heat exchange equipment for the economic effect of waste heat utilization, the hot and cold materials are used at the same time, and the steam consumption is small.

Technical parameters of UHT milk sterilizer

Model	HF-1	HF-2	HF-4
capacity	0.5-1T/H	1.5-2T/H	3-4T/H
Sterilization temperature	115-135°C	115-135°C	115-135°C
steam pressure	<0.4MPa	<0.4MPa	<0.7MPa
heating time	4-6S	4-6S	4-6S
Discharge temperature	<65°C	<65°C	<65°C
Motor Power	2.2KW	2.2KW	4KW
aspect	12009201400	130011001750	150012001850
weight	210KG	310KG	480KG
