Plastic Blister Hydraulic Cutting Machine

Product details
application:cutport:Guangzhou or Shenzhen
maximum. Cutting power:30/ 50/ 80/100 tonsMarketing Type:normal product
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramrated power:3KW
maximum. Stroke:50-200mmApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Stores, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
After-sales service provided:Video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online supportCertification:CE certificate
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpaspect:2180*1250*1380mm
Showroom location:not anybrand:SMEs
Warranty:1 yearVideo external inspection:if
After Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair servicesplace of origin; place of origin:Guangdong, China
type:hydraulic cutting machineLocal service location:not any
Mechanical test report:ifCutting table:1250*500mm
Core Components Warranty:1 yearSupply capacity:15 sets per month
Main selling point:competitive priceHealth status:new

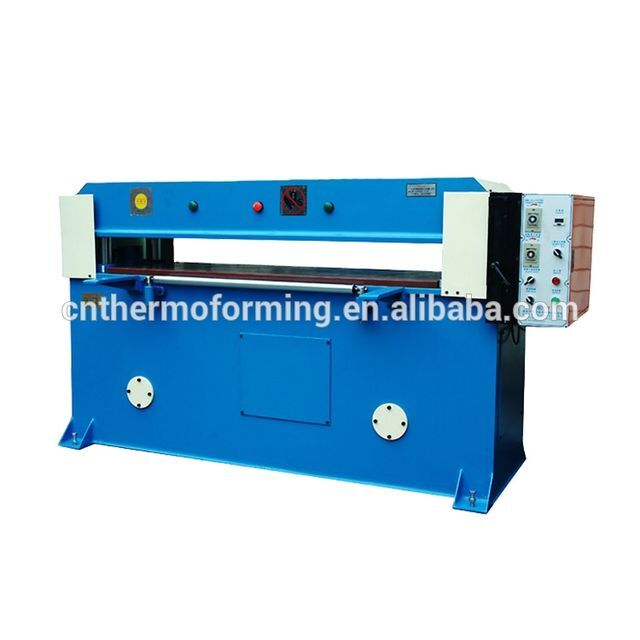

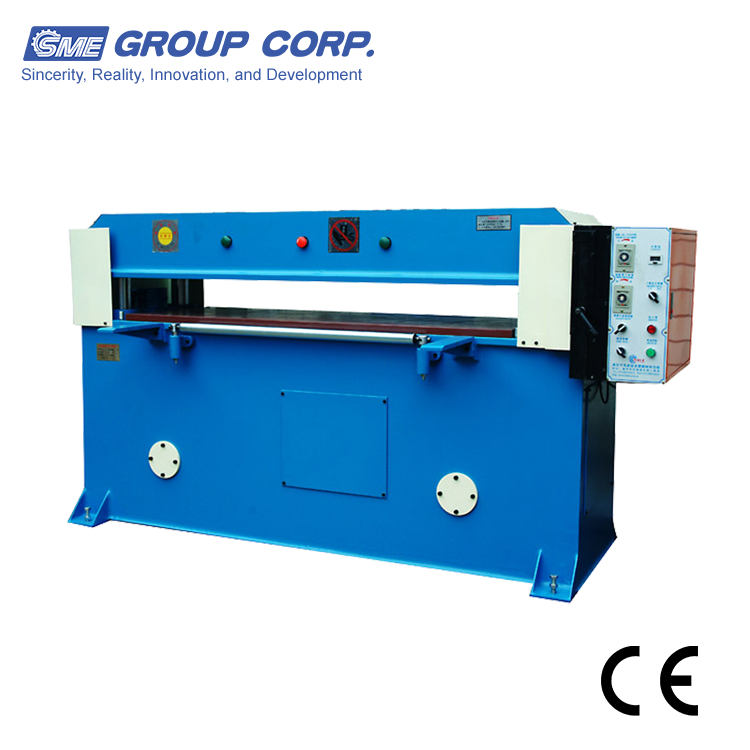

hydraulic cutting machine

This machine is widely used in electronics, toys, food, clothing, luggage, footwear, medical treatment, cosmetics, flukes, tourism, textile and other industries.



Applied Materials and Industries

It is developed according to the technology of the United Shoe Machine Company of the United Kingdom.

It is suitable for single-layer or multi-layer forming and cutting of various leather, plastic, canvas, nylon, fiber, cardboard and synthetic materials, etc. It is the first choice for leather cutting.

main feature

Double operation mode, one button, discontinuous cutting, high operation safety;

The delay circuit controls the stroke, which is convenient for adjustment and precise for fine-tuning;

Rocker arm type cutting head, best line of sight, convenient material selection, sufficient pressure, and can be used for any soft material.

Special cutting head, wear-resistant, best cutting effect;

      Technical data DYA series

Model

DYA-30T

DYA-50T

DYA-80T

DYA-100T

maximum. Cutting power

30 tons

50 tons

80 tons

100 tons

maximum. stroke

50-200mm

50-200mm

50-200mm

50-200mm

cutting table

1250×500mm

1600×710mm

1600×800mm

1600×1100mm

strength

3KW

4KW

5.5KW

7.5KW

Machine size (length × width × height)

1980x1100x1570 mm

2180x1250x1380 mm

2280x1300x1570 mm

2280x1415x1570 mm

machine weight

1700Kg

3000Kg

3080Kg

3450Kg



payment terms: T/T 40% deposit before production, 60% balance before delivery date;

delivery time:20-25 working days after deposit;

Validity:30 days after quote.

Departure Port:Guangzhou Huangpu Port

Package: block

Warranty:We guarantee these machines for one year. And provide some spare parts, including machines, operation manuals and operation CDs.

Serve: After the machine arrives, we will send engineers to your company for installation and training about 7 to 10 days. The engineer's air ticket, visa and accommodation shall be arranged by the buyer, and the training fee is USD 50/day.
