CHANGHE IP65 Aluminum Outdoor Control Enclosure Distribution Box for Electronics

Product details
Payment Terms:Western Union,T/T;Operating Temperature:-40℃~120℃;
Type:Control Box;Protection Level:IP65;
Material:Aluminum Alloy;OEM:Support;
Other characteristics:with external hinges;Customization:Support;
Brand Name:CHANGHE;Color:Grey;
External Size:242x212x81mm;Port:Ningbo;
Place of Origin:Zhejiang, China;Supply Ability:1000 Pieces per Day;
Application:Outdoor, harsh conditions;Model Number:11B-27;
Packaging Detail:Packed in cartons, seaworthy export standard in strong carton suitable for international transportation;
Product Description

CHANGHE Aluminium Control Enclosures

CHANGHE Enclosures provides users with over 300 choices for packaging electrical and electronics equipment operating in hostile environments. With tempered glass windows and external hinges, CHANGHE aluminium control enclosures are designed to to be used as control boxes for measuring instruments, electric and electronic equipment. Dimensions range from 101*104*58 mm to 39*280*200 mm. Our enclosures have achieved ingress ratings of IP65. Some of their most noteworthy advantages are high mechanical strength, as well as high corrosion and impact resistance.


Custom & Modified Enclosures

When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:

- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes

- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring

Product Specs


IP65 Aluminium Control Enclosure 242x212x81mm (11B-27)

The dimensions specified below are Length x Width x Height.
Model No.
External Dimensions
Internal Dimensions
Mounting plate size
Wall mounting size
11B-27
242x212x81mm
220x190x52mm
--
233x180mm

Technical Features:


· RFI shielding

· IP 65 Watertight and dust-proof (IEC60529 : 2001)
· Can be used at a wide range of operating temperatures:-40℃~120℃(IEC60068 : 1997)
· High impact resistance (IK grade: IK08)
· High corrosive resistance due to high-quality powder coating
· The interior contains mounting pillars to accommodate mounting plates, supporting rails or circuit boards.
· Easy mounting, optional accessories include wall mounting kits.

· There is no holes in standard enclosures. Customization is available for all CHANGHE enclosures based on provided drawings indicating relevant modifications.

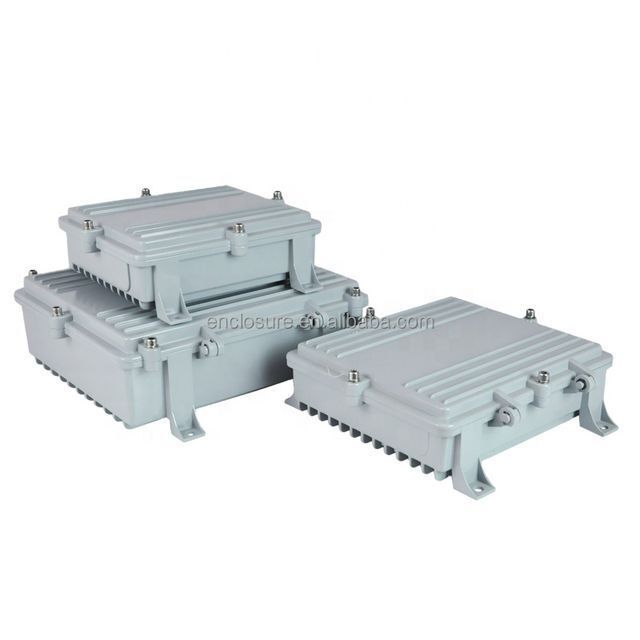

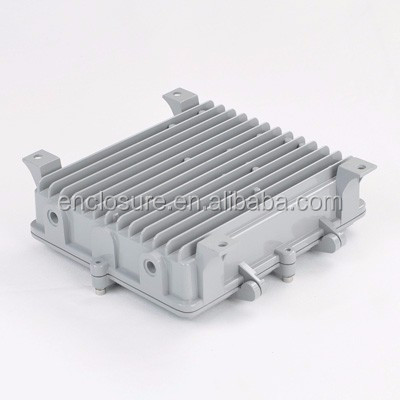

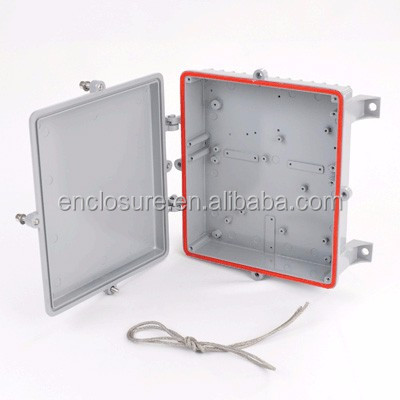

Product Dispaly

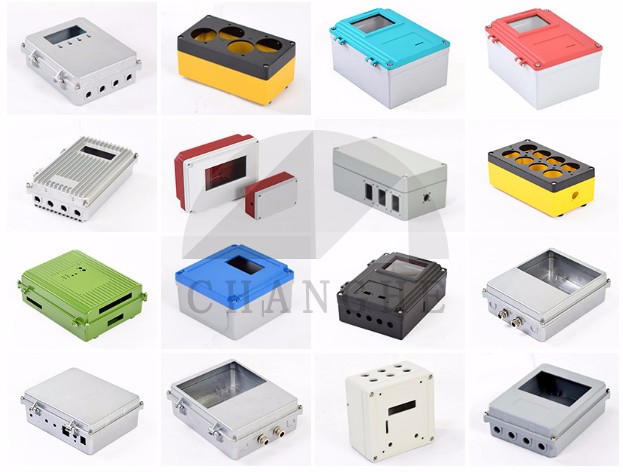

Customization

Custom & Modified Enclosures

When a standard enclosure isn’t exactly what you need, CHANGHE can modify our designs for the ideal enclosure solution. Some common modifications we can do for you:

- Mold & Design
- Special Paint Colors
- Silk Screening
- Punched Holes

- Cutouts
- Mounting plate design
- Salt Mist Resistance
- Non-inflammable sealing ring

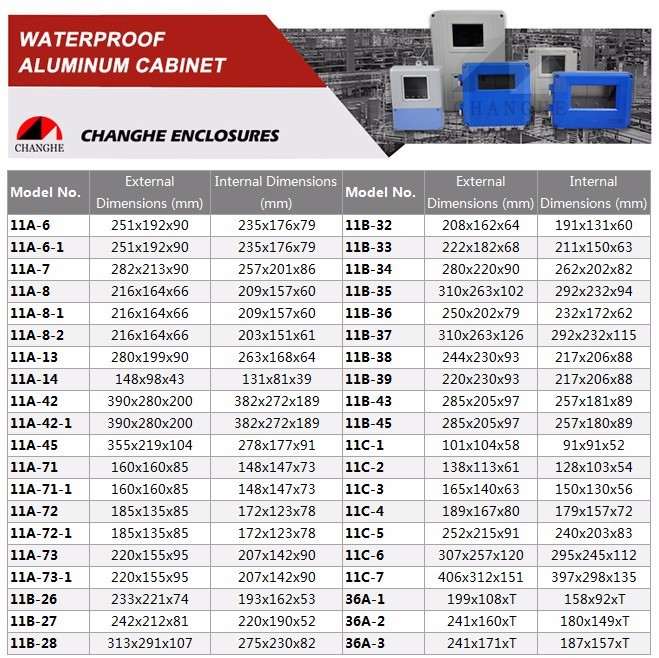

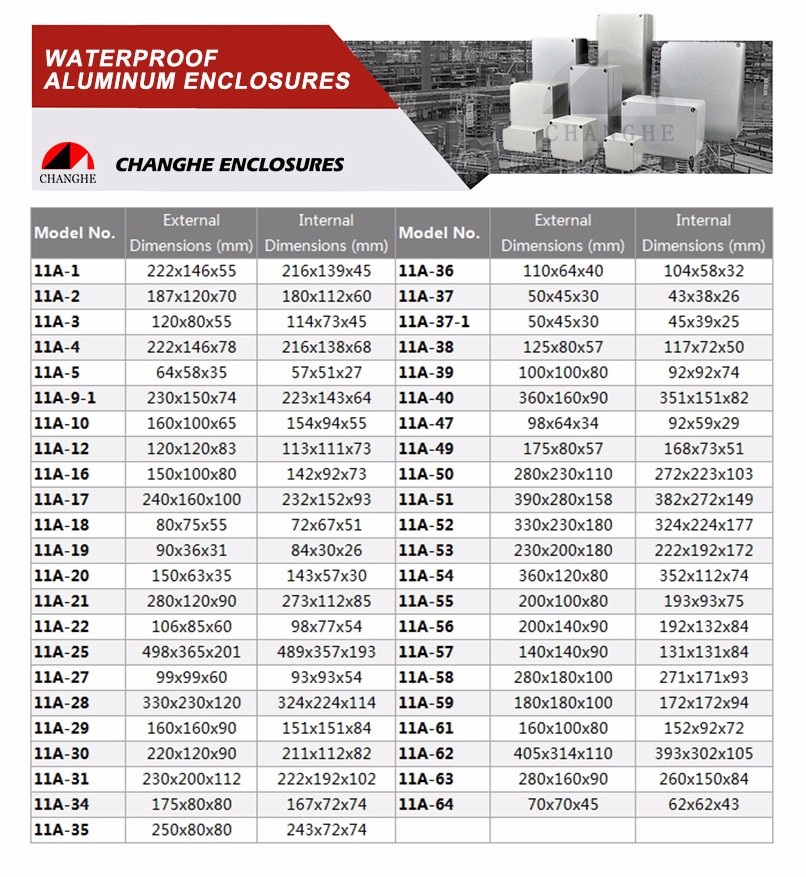

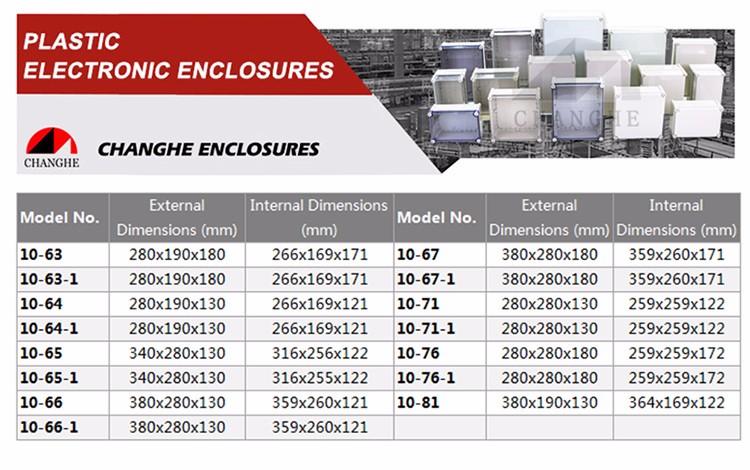

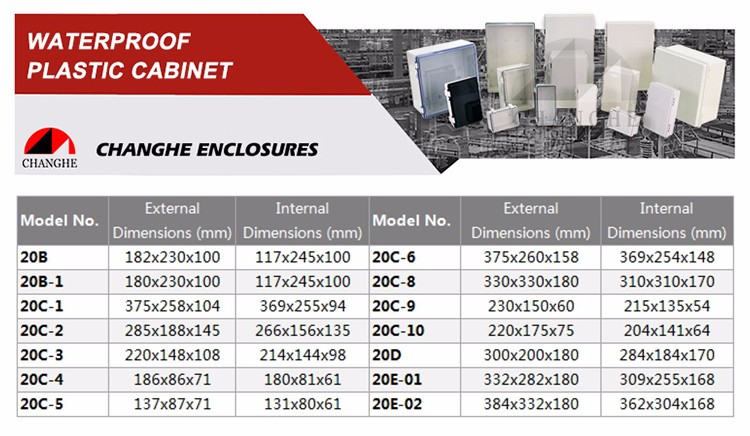

Dimension Chart
Company Profile

Why choose us?


Ningbo Dayang Co., Ltd (trademark: CHANGHE Enclosures) is a leading company in the enclosure industry. We have been developing and manufacturing enclosures and protective cases for more than 20 years. With over twenty years experience, a dedicated design team and most up-to-date production machinery, we process the products in accordance with our customers’ requirements. You can benefit from us providing precisely engineered protection for your products, eliminating transit damage, enhancing presentation and ultimately, reducing your business’ ongoing costs.

Specialist Divisions:


Besides waterproof enclosures, CHANGHE Enclosures also includes the following specialist divisions:


HURICAN® Protective cases


Instrument Enclosures


DIN Rail Enclosures


Aluminum Extrusion Enclosures


CATV Amplifier Enclosures
