Ore Mineral Processing Plant Trommel Srubber Placer Mining Machinery Gold Equipment
-
Supplier: Jiangxi Province County Mining Machinery Factory -
Region: Jiangxi, China -
Contact: Ms Stephan Lee -
Price: $6000.00 /set -
Min. Order: 1 set
| Place of Origin: | Jiangxi China (Mainland); | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining; |
| Condition: | New; | Brand Name: | JXSC; |
| Max feeding size: | 80mm; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Warranty: | 1 year warranty for placer gold mining equipment; | Packaging Detail: | 1. Standard parts packed in the wooden cases. 2.Big parts packed by plastic membrane. 3.The whole machine is loaded in the container.; |
| Mobile Trommel Scrubber Capacity: | 10t/h; | Inner plate material: | Steel screw panels OR Rubber plates; |
| Model Number: | JXSC-600; | Port: | XIAMEN/ SHENZHEN/ GUANGZHOU/ SHANGHAI; |
| Certificate: | CE&SGS&ISO&BV; | Payment Terms: | L/C,T/T,Western Union; |
| Installation: | Provide trommel wash scrubber professional setup video&work video; | Supply Ability: | 100 Set/Sets per Month Mining Machinery; |
| Sample ores testing: | Available in our JXSC workshop; | Application: | used for alluvial gold /sand gold/ river gold/ rock gold separation; |
| Flowsheet design: | Available by our experienced engineers; |

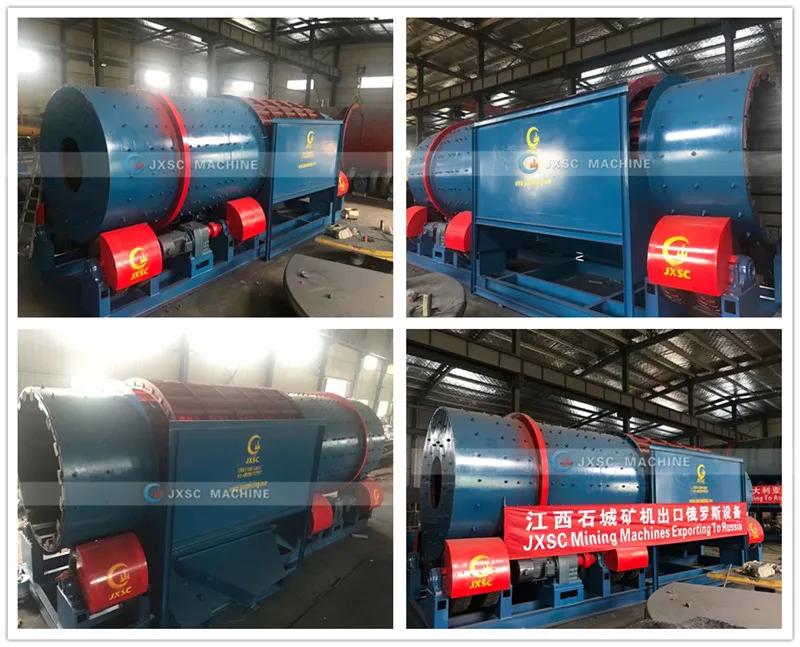

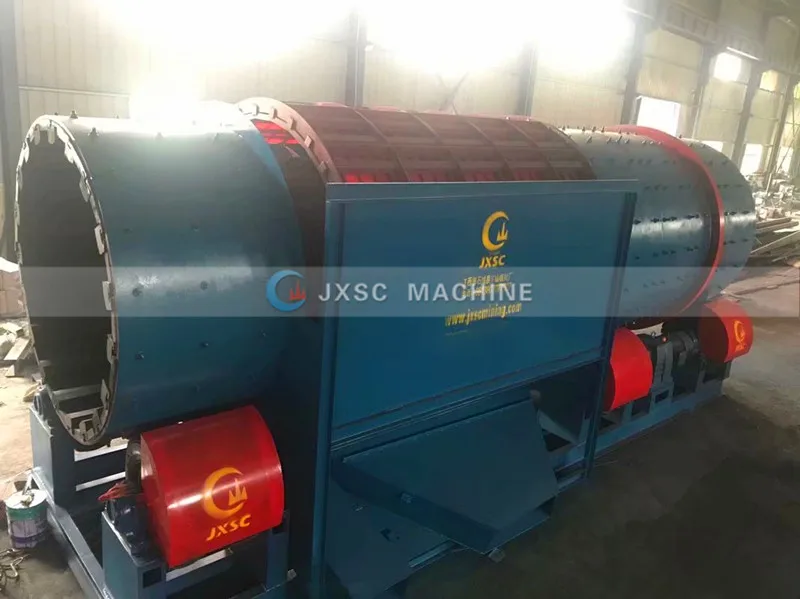

Ore Mineral Processing Plant Trommel Srubber Placer Mining Machinery Gold Equipment
JXSC Gold Scrubber Applications
The trommel scrubber is one of the most popular mining equipment in mineral recovery process.
Scrubbers are designed to break up alluvial gravels, clay and sands, they can also handle stone washing,
feed with high clay content and difficult ores, which has been widely used in placer gold & alluvial gold
washing plant, coltan & columbite washing plant, titanium processing equipment, tungsten washing plant,
tin & cassiterite washing plant, iron sand washing machine, quartz stone washing plant, placer diamond
pre-treatment machinery, black sand processing plant, manganese washing plant, granite washing plant
in quarry, chrome wash plant, sand washing machine, silica sand washing plant.
Diamond Scrubber Features:
1. Customized capacity and strong power scrubbing, large capacity can reach 200-250tons per hour
2. Long washing drum of the scrubber retains material for longer, more vigorous washing for complete
separation
3. One high output electrical motor driving a rubber wheel system providing efficient torque
4. Rotation speed can be adjusted by advanced reducer
5. The water with high pressure flushed the inwall of drum
6. Can accept material up to 230mm
Different configuration of Diamond Scrubber can be customized :
1. Feeding hopper / grizzely hopper is available
2. The washing drum, screening section diameter and length can be customized

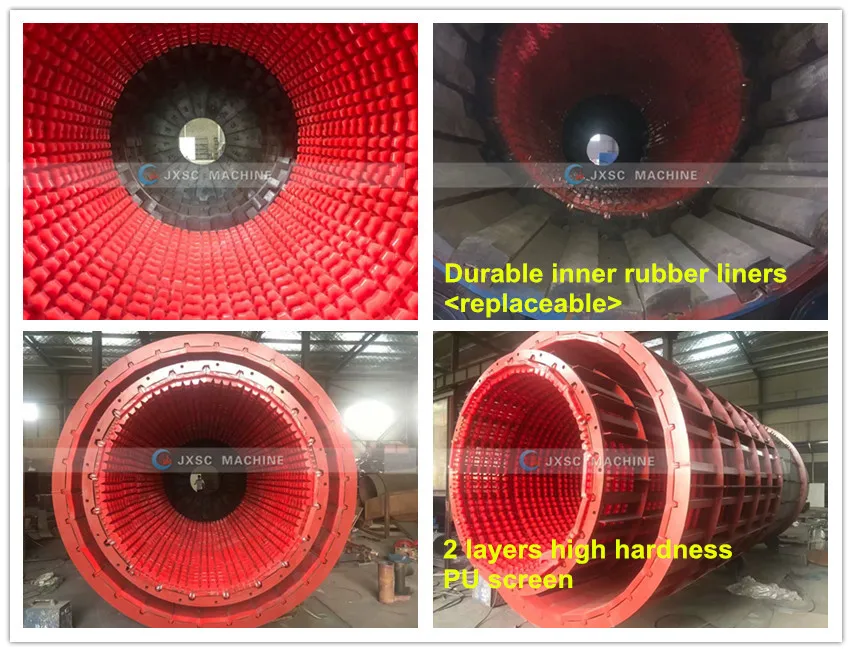

3. Drum inner lining material is both rubber liners & spiral steel plates available
4. The screen sieve material can be high hardness manganese steel, stainless steel, or PU screen
5. The screen layers can be 1, 2, or 3 layers
6. Driving system equip with durable rubber wheels
7. The trommel can be fixed type, mobile type with rubber wheels, or skid mounted mobile type
8. Water pump, water spray pipe, water distributor, diesel engine or generator available
Note: All the parts material are high end quality materials, the steel board is from Baosteel Group,
the electric motor with IP56 water proof standard, the speed reducer from world famoud brand K series.
| Model(Drum dia.) | Screen size(mm) | Rotation speed(r/min) | Feeding size(mm) | Water requirement(M3/h) | Angle of inclination(°) | Capacity (T/h) | Power (Kw) |
| JXSC-400 | ≤20 | 27.9 | ≤80 | 1 | ≤10 | 10 | 3 |
| JXSC-600 | ≤25 | 27.6 | ≤80 | 1.2 | ≤10 | 20 | 5 |
| JXSC-750 | ≤25 | 27.6 | ≤100 | 1.3 | ≤10 | 30 | 7.5 |
| JXSC-900 | ≤25 | 27.6 | ≤100 | 1.5 | ≤10 | 40 | 15 |
| JXSC-1200 | ≤25 | 19 | ≤160 | 1.7 | ≤10 | 50-70 | 22 |
| JXSC-1500 | ≤50 | 19 | ≤230 | 2 | ≤10 | 70-120 | 30 |
| JXSC-1800 | ≤50 | 16 | ≤230 | 2.2 | ≤10 | 120-150 | 37 |
| JXSC-2100 | ≤50 | 16 | ≤230 | 2.4 | ≤10 | 150-180 | 45 |
| JXSC-2400 | ≤50 | 16 | ≤230 | 2.6 | ≤10 | 180-250 | 66 |
Jiangxi Shicheng Mine Machinery Factory is a leading mining machinery manufacturer with over 30
years experiences, providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /
Iron ore /Diamond ore/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect.
As well as complete set small lab mining machines.

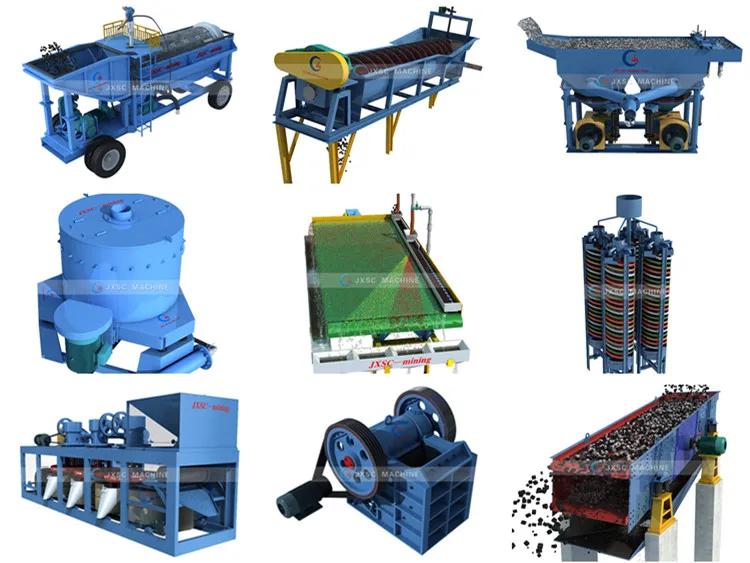

Main product including: trommel scrubber, trommel sceen, shaking table, spiral chute separator,
jig separator, centrifugal concentrator, sluice box, vibration screen, three-disc magnetic separator,
melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier,
as well complete set small laboratory mining equipment.
