Single Layer Printed Circuit Board Single Sided Pcb Used For Automotive Lighting Car Light

Click here to contact
Product details
Base Material:FR-4;Package Preview:;
substrates material:Aluminum base;Certification:RPHS, U.L.,94V0;
Min. Hole Diameter:0.5MM;Payment Terms:T/T;
Port:NB,WH,SZport;Board Size:85*85mm;
Packaging Detail:Inner packing :Vacuum Package Outer packing:Standard Carton;surface treatment:osp;
Panel Size:170*170/4;usage:Led Light, car light, auto led light;
board thickness:1.0mm;Supply Ability:2000 Square Meters per Day;
Surface Finishing:HASL;Circuit:10Series 3 Parrel;
Board Thickness:1.0MM;Brand Name:Comby;
copper foil thickness:35um;Place of Origin:Hubei, China;
Model Number:7837-F1HM;Copper Thickness:35UM;
Type:single sided pcb;Layers:single layer;
Min. Line Spacing:0.2MM;size:85*85mm;
Min. Line Width:0.2MM;
Product Description

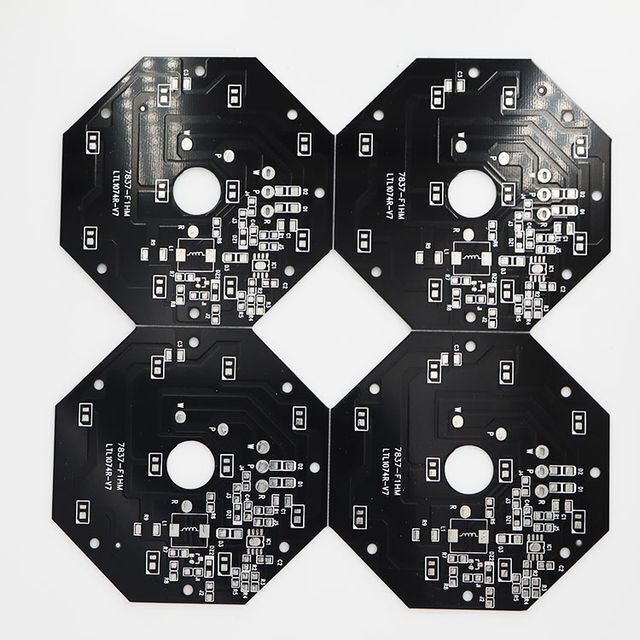

Single Layer Printed Circuit Board Single Sided Pcb Used For Automotive Lighting Car Light
Model Number:7837-F1HM Material:FR-4 Board thickness: 1.0mm Copper foil thickness:35um Product Size:85*85mm Panel Size: 170*170/4 Surface treatment:HASL number of layers: Single layer Soldermask color:black Legend: Silkprinting white Application: car front light,LED car light( LED trailer lights, Jumbo truck lights, caravan interior lights),LED Emergency lights(LED work lights, led camping lantern, led flashlight)
Note: Black soldermask and lead free HASL normally are used for automotive light.
Recommend Products
Company Profile
 ZhongPei Capacity
Layers
1-8 layers rigid pcb
1-2 layers FPC
Led  PCBA service
Daily production
2000-sqm rigid board per day,
30,000sqm fpc per day
Material can process
FR4, 94V0, Aluminum substrates ,copper base,CEM-1,CEM-3,FR1,22F,FPC,etc
Surface treatment
OSP, HASL Lead Free, Soldermask, ENIG, chemical gold, chemical silver, golden finger
Board thickness
0.5-3.0mm
Cooper foil thickness
18-105um, 0.5-3oz
Finished Size
Rigid Board:Min 3*3mm, max 500*1500mm
FPC: max width245mm, max coverlay length 600mm
Min line width for rigid board
0.2mm for single rigid board, 0.4mm for single fpc, 0.3 mm for double fpc, 3mil for multi-layer rigid board.
Quality Controlling
IQC, IPQC,FQC to ensure quality meet IPC 610J, IPS calss 2.
Certification
UL, ISO9001,ROHS,CQC
Application
Power supplies, Relays (automotive and industrial),Timing circuits,Sensor products,LED light, linear Light, Pool Light, Garden Light, Street Light, Floor Light, spot light, indoor light , outdoor light, Radio and stereo equipment,· Packaging equipment,· Surveillance,· Calculators,· Printers,· Coffee makers,· Vending machines,· Solid state drives,· Camera systems.
Exhibition
Certifications
Product packaging
FAQ
Q:How can I get a price?
A: As long as you can offer gerber file or detail requirement (Layer count, board thickness, cooper foil thickness, product size, surface treatment way,packing requirement,etc) we can offer price in 24 hours.

Q: Are you trading company or manufacturer ?
A: We are a PCB factory with 13 years experience in this area,We have self desinging team and sales team, we have both auto pcb production ling and traditional line available in our factory.

Q:What is your minimum order quantity?
A: For mass production, our min order amount is USD300.If less than this, it will be considered as a sample order. Sample order cost will depends on the pcb or pcba.

Q:What is your advandage than other supplier ?
A: 1.Located in Mid-China causing low labor cost.
2.We have IPC, IPQC, FQC controlling quality in the factory, ensuring our products meet IPC Class 2.
3. We can process both rigid board and fpc, also copper base board.

Q:How about your supply capacity?
A: Our supply capacity is around 2000sqm to 6000sqm each day. For rigid board(Aluminum base, copper base, FR-4 base),The min size we can process is 3*3mm, and the max size is 500*1500mm. For the FPC, due to film limit,max length is 600mm.

Q:What 's the lead time for an order?
A:Normally,it will take 3 to 15 days depends on the order volume.If you need urgent, please contact our sales people.

For other details, Please Contact Alice!
