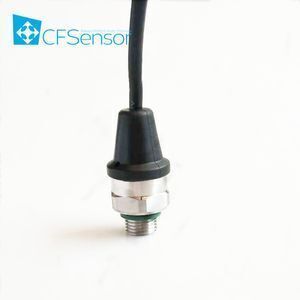

Electronic Application Water Pump Liquid Pressure Sensor
-
Supplier: Wuhu CFSensor Co., Ltd. -
Region: Anhui, China -
Contact: Mr. Kribye Yu -
Price: $5.90 /piece -
Min. Order: 1 piece
| Protection Grade: | IP67; | Housing Material: | 304 Stainless Steel; |
| Over Pressure: | 2X Rated; | Place of Origin: | Anhui China (Mainland); |
| Certificates: | CE RoHS ISO9001; | Port: | Shanghai,Ningbo,Shenzhen,Tianjin etc,.; |
| Model Number: | XGZP4501; | Advantages: | Silicon micro melting technology, dry-type structure; |
| Electrical Connection: | Packard & Cable; | Accuracy: | ±1%Span; |
| Pressure Range: | 0-1mPa, 0-1.6mPa,0-2mPa; | Brand Name: | CFSensor; |
| Temp.Compensation: | 0 to 70C /32 to 158F; | Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypal; |
| Packaging Detail: | Inner: PVC Tube (520*15*14mm/70pcs/Tube) Outer: Carton (54*12.5*6.5cm/2240pcs/CTN); | Output Signal: | 0.5-4.5V; |
| Supply Ability: | 1000 Piece/Pieces per Month; |
Electronic Application Water Pump Liquid Pressure Sensor
XGZP4501 Pressure Transducer is structured by silicon pressure sensor as signal sensing element, adopt the special ASCI amplifier circuit and stainless steel housing.
XGZP4501 Transducer is integrally temperature compensated and linearity corrected,which effectively resist water hammer effect and transient over-voltage,etc.
It can meet the requirement of measure and control under complex environment.
XGZP4501 Transducer provide various output mode and pressure interface, the OEM service can meet extremely clients application requirement.
| Product item | Electronic Sensor General Purpose Water Pump Pressure Sensor |
| Advantages | Silicon micro melting technology, dry-type structure |
| Electrical Connection | Packard & Cable |
| ressure RangeP | 0-1mPa, 0-1.6mPa,0-2mPa |
| Output Signal | 0.5-4.5V |
| Power Supply | 5V DC |
| Accuracy | ±1%Span |
| Materials | 304 Stainless Steel housing & Plastic connector |
Long Term Stability(1 Year) | ±1%Span |
| Pressure Type | Sealed Gauge |
| Temp.Compensation | 0 to 70C /32 to 158F |
Applications
Variable frequency water pump, frequency-alterable constant voltage water supply,building automatic control, water treatment system,hydraulic pressure monitoring etc,.
HVAC controlling(Heating, Ventilation and Air Conditioning),air conditioner,refrigeration, process controlling,hydraulic pressure monitoring ,etc.
Other pressure measure and control of petroleum,Energy and water treatment systems .etc,.

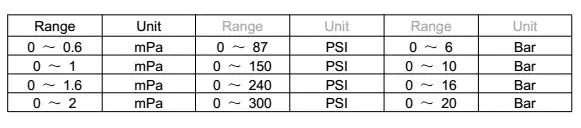

Pressure Range(100kPa=0.1MKp=1bar≈14.5PSI)

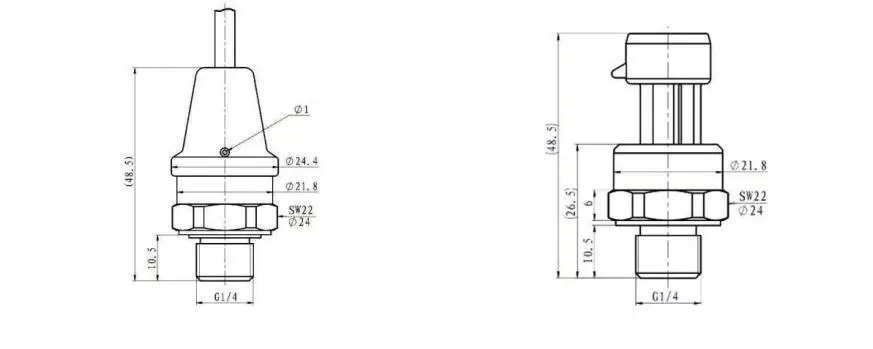

Dimension (Unit:mm/Inch)

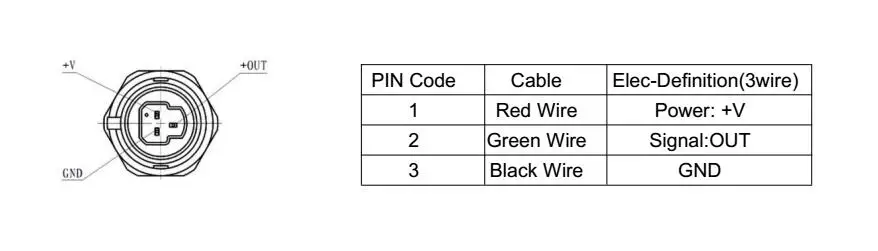

Electric Connection&Definition

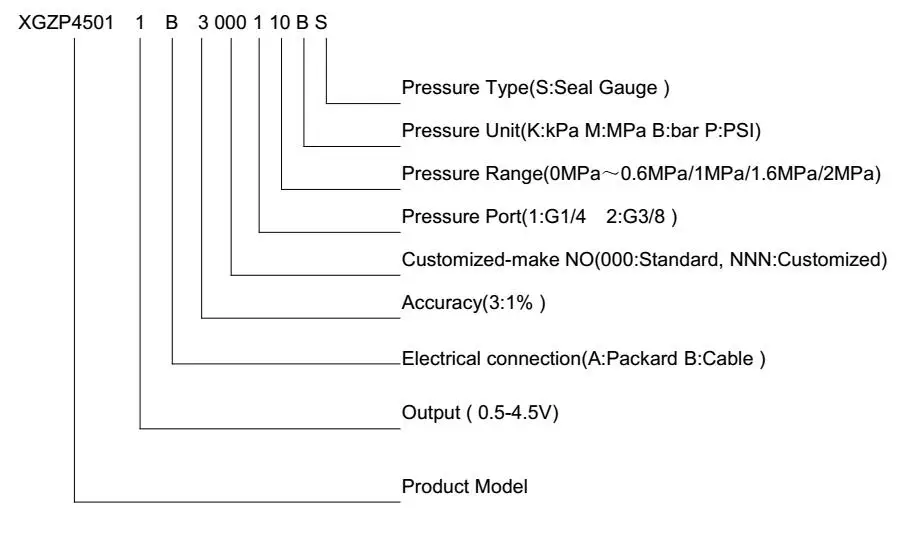

Order Guide
Notes:
1.Attention that the medium should be compatible with the pressure parts.
2.Please contact us if special request on parameter and application. .
Q:What’s the MOQ? Do you accept the sample order for test purpose?
A: Yes,the MOQ is normally 10 pieces, please refer to our sale policy for more information.
Q: Can you send us some sample freely?
A: As company policy, sample need be charged and freight is prepaid or collective if you have express account, like UPS, FedEx,DHL,TNT,etc.
Q:How we can pay for samples or trial order?
A: We recommend the Paypal term for small amount and also accept other payment terms if you haven’t Paypal account.
Q: What’s the lead time?
A: Normally goods can be delivered once we receive the payment as we have inventory. Or we have to take about 30 days for usual order if there is not stock.Please note there will be more time for custom products or shortage of pressure sensor die.
Q:Can you do OEM/ODM service or any custom service?
A: Yes,just show us the requirement,parameter, details or drawing then we will evaluate the project for you.
Q:What’s the warranty policy of your pressure sensor?
A: We guaranty the quality for one year according to the electronic product guaranty standard.
-
