8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm push button switch latching momentary illuminated waterproof buttons switches

Supplier: Yueqing Haifei Electronics Co., Ltd.
Region: Zhejiang, China
Contact: Mr Victor Gao
Price: $1.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Emitting Type:	Ring LED/Dot LED/Symbol LED/None;	Mounting Hole Size:	19mm;
Operation Type:	Momentary/Lacthing;	Packaging Detail:	Blister Package+Foam+Color box Or Upon your request;
Protection Level:	IP67 IK10;	Lamp Color:	Red Green Yellow Blue White Orange Purple Pink;
Head shape:	Flat/High Head;	Contact Materials:	Sliver Point;
Place of Origin:	China;	Max. Current:	5A;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Terminal type:	Soldering Pin;
Shell Materials:	Nickel Plated Brass/Stainless Steel/Aluminium Oxide;	Model Number:	HS19F-11/E/J;
Contact configuration:	1NO1NC;	Max. Voltage:	250V;
LED Voltage:	0-250V;	Brand Name:	Haifei;

Product Description

8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm push button switch latching momentary illuminated waterproof buttons switches

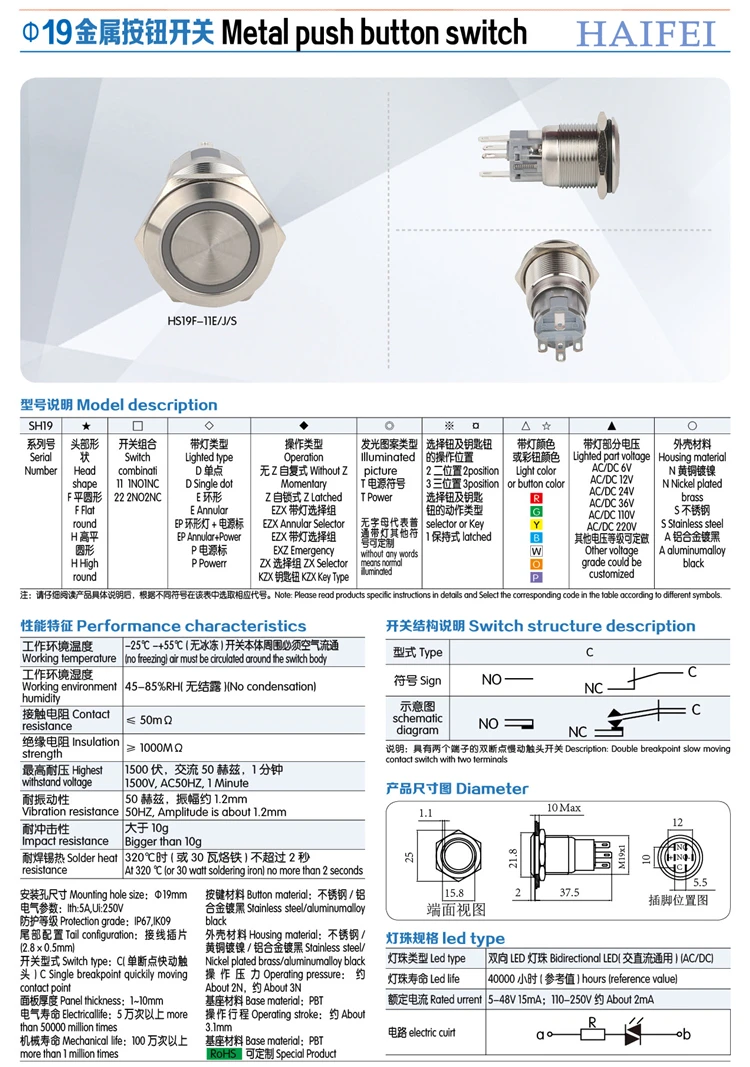

The Product Parameters
Project	Parameter	Project	Parameter
Contact type	Slow moving single contact	Operation Schedule	Connected:1.8mm,Total:3.5mm
Contact Resistance	≤50mΩ	Actuating Force	about 8N
Insulation Resistance	≥1000mΩ	Mounting panel thickness	≤4mm or customised the others
Dielectric Strength	1500VAC min	Nut torque	5~14N.m
Ambient Temperature	-25℃~+55℃	Outshell/Press Key	Stainless Steel/copper plated/aluminum oxide
Electrical Life	50000 cycles	Base material	PA66
Mechanical Life	Latching-200,000 cycles Momentary-1000,000 cycles	Transmissive cover	PC
Protection Level	IK10	Pins Contact	Copper palted sliver
Waterproof Level	IP67	Spring	Steel wire

Led Lamp Parameters
Project	Parameter

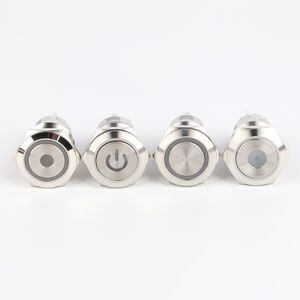

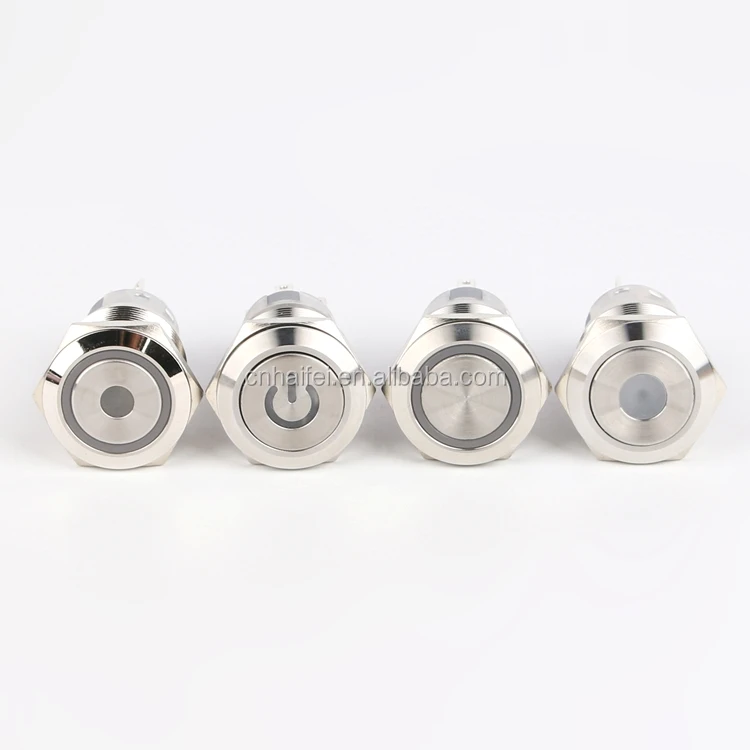

Led Symbol	Ring/Power Symbol/Dot/Ring+Power Symbol/Customized
Led Color	Red,Green,Blue,Yellow,Orange,White,Purple,Pink
Rated Voltage	AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current	≤20mA
Reference Life	40,000hours

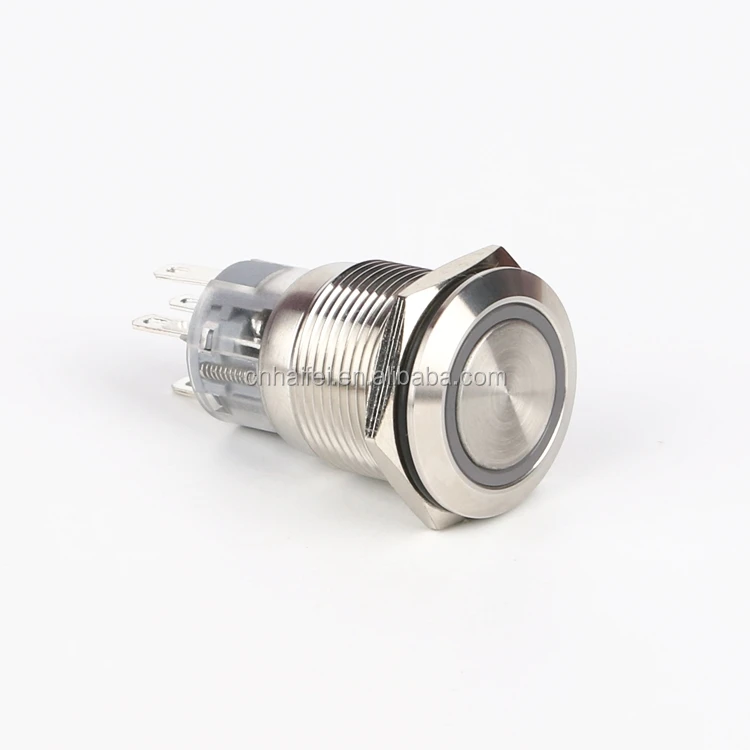

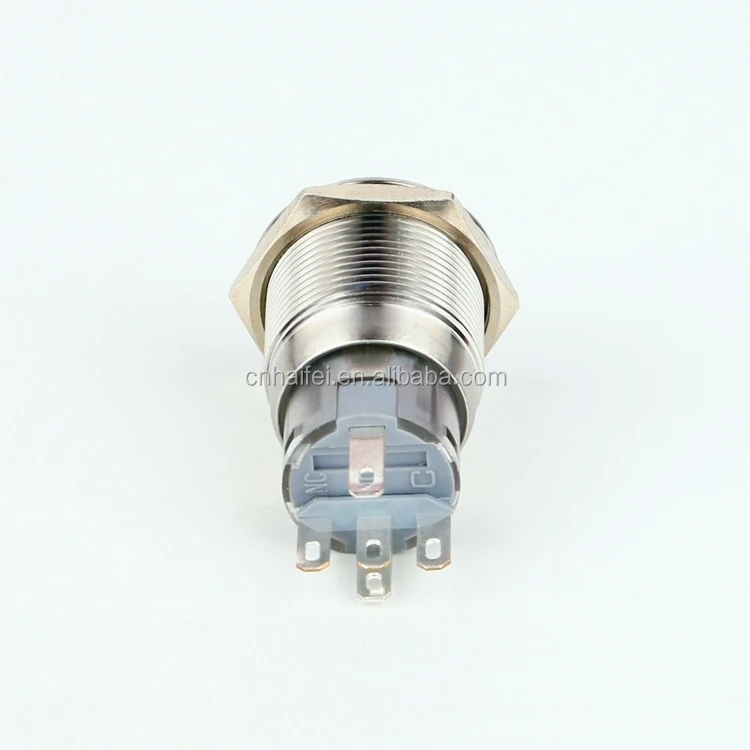

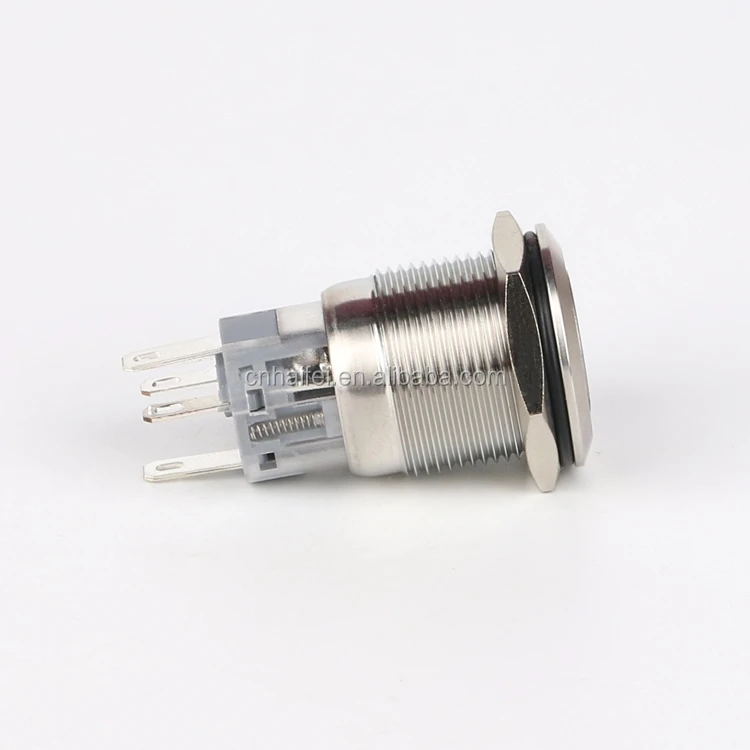

Product Show

Product details

Company Profile

OEM/ODM Service

FAQ

Q1: Are you a factory or trading company?

We are factory and produce all the products by our self. Welcome to our company for factory inspection.

Q2: What products does your factory mainly manufacture?

Our factory mainly produces rocker switch, push button switch, micro switch, tact switch, toggle switch, coding switch, self locking&unlocked switch, ac&dc socket and etc.

Q3: How to guarantee our products?

we solemnly promise If there are any quality problems we will be 100% responsible for rectification.

Q4: Is it possible to customize the product according to our requirements?

You can provide us with your specific product requirements, we will manufacture the products you need individually for you.

Q5: Can you provide samples ? Are the samples free?

Yes, we can provide samples. Normally, we provide free samples for test or quality checking.

Q6: About the sample what is the cost of transportation?

The freight depends on weight, packing size and your country or province region, etc.

You can confirm goods by photo and video to save this money, If you become our old customer.

Q7: How to order?

Please contact us.
