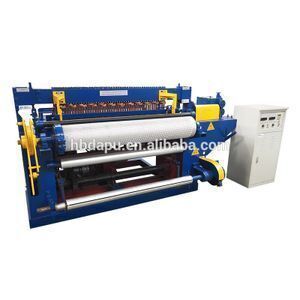

Fully automatic roll welded wire mesh machine manufacturer

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $8900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Aperture/pitch:	1", 2", 3", 4" 25, 50, 75, 100mm;	Port:	Xingang port;
Wire diameter:	0.6-12mm;	Mesh type:	Panel&roll;
Key Selling Points:	Famous brand PLC;	Warranty time:	2 years;
Weight (KG):	3600;	Warranty:	1 Year;
Rated Duty Cycle:	10%;	Usage:	For construction, fence, cages etc.;
Machinery Test Report:	Provided;	Dimensions:	1/2", 1", min.25mm, 50mm, 100mm;
Core Components:	PLC;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash, RMB payment offline order.;
Primary Voltage:	380V/220V/415V/440V 50Hz/Hz;	Local Service Location:	Russia,Kenya,Kazakhstan;
Place of Origin:	Hebei China;	Applicable Industries:	Retail,Energy & Mining;
Warranty of core components:	2 Years;	Marketing Type:	Ordinary Product;
After Warranty Service:	No service;	Video outgoing-inspection:	Provided;
Supply Ability:	20 Set/Sets per Month Fully automatic roll welded wire mesh machine manufacturer;	After-sales Service Provided:	Engineers available to service machinery overseas,Field installation, commissioning and training;
Mesh width:	Max.1.2m, 1.5m, 2m, 2.5m;	Brand Name:	DAPU;
Showroom Location:	None;	Condition:	New;
Motor:	4kw; 5.5kw;	Transformer:	70kva/80kva*5/6/7/8;
Rated Capacity:	60kva4;60kva5, 60kva*7;	Packaging Detail:	Fully automatic roll welded wire mesh machine manufacturer Main welding machine packed with plastic package, electrical cabinet in the wood case, auxiliary equipment in the container.;
Machine type:	Resistance welding;	Welding speed:	45/60/100/180 times/min;

Fully automatic roll welded wire mesh machine manufacturer

Technical Parameters

Type	DP-DNW-1	DP-DNW-2	DP-DNW-3
Wire diameter	0.4-0.65mm	0.65-1.8/0.8-2mm	1.0-2.2/1.2-2.5mm
Aperture/pitch	1/4", 1/2"	1/2",1",2",3",4"	1",2",3",4"
Mesh width	Max.1.2m,1.5m,2m	Max.1.2m,1.5m,2m	Max.1.2m,1.5m,2m,2.5m
Motor	2.2kw	2.2kw;4kw	2.2kw;4kw
Welding speed	Max.75 rows/min	Max.120-180 rows/min	Max.80-120 rows/min
Transformer	50kva*3	60kva*4/5/7	60kva/70kva*5/6/7/8pcx
Weight	1.5T	2T;2.5T	2T;2.5T;3T;3.5T
Attentions:we can design the machine according to your wire diameter,mesh hole size and so on.

Product Display

Product Details

Auxiliary Equipment

Packing&Shipping

Certifications

Company Profile

FAQ

Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
