3.8KVA powerful battery spot welding machine sunkko 797DH battery welder

Supplier: Shenzhen E-Fire Technology Development Co., Limited
Region: Guangdong, China
Contact: Ms Little Bear
Price: $240.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Sunkko;	Max. Welding Thickness:	0.35mm;
Voltage:	110V 220V;	Weight:	7.5Kg;
Port:	Yantian;	Dimensions:	140200245mm;
Packaging Detail:	PE/Carton;	Certification:	ISO;
Usage:	Spot welder machine;	After-sales Service Provided:	Online support,No overseas service provided;
Rated Capacity:	3.8KVA;	MOQ:	1pcs;
Condition:	New;	Function:	spot welding for lithium battery;
Payment Terms:	T/T,Paypal;	Skype:	e-firesales;
Supply Ability:	1000 Piece/Pieces per Month;	Welding current:	800A;
Product Name:	Spot Welder for Pack Battery Welding;	Rated Duty Cycle:	N/A;
Warranty:	1Year;	Feature:	Portable Welding;
Place of Origin:	China,Guangdong, China;	Pulse Quantity:	2 to 16P (adjustable);
Power:	3.8KW;

Related Products

Sunkko 797DH is designed for people working in battery spot welding business. It has a great improvement in LCD display and design compared with sunkko 709 series.

Welding Thickness: The huge power output enables 797DH to weld pure nickel easily which thickness is 0.2mm(nickel coated steel: 0.3mm), even when you are welding batteries with the mobile welding pen, the welding thickness can be also up to 0.2mm.

3 Ways to increase the power output: You can adjust the welding current, welding pulses or the cluster pulse knob to increase the power output if you are welding a thicker nickel sheet.

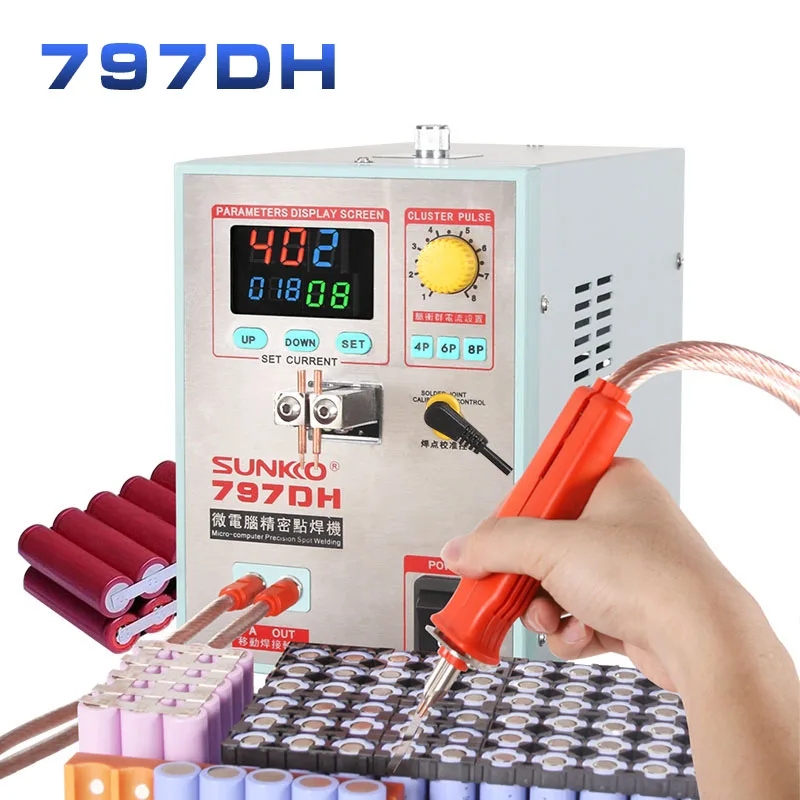

LCD Display: The welding current and pulse can be easily set. On the basis of sunkko 709 series LCD, we added an extra part to show the dynamic welding current and pulse number during the welding process in real time. The value at the lower left corner stands for the dynamic welding current, 0.1 equals to 100 amps. The value at the lower right corner is the dynamic pulse quantity.

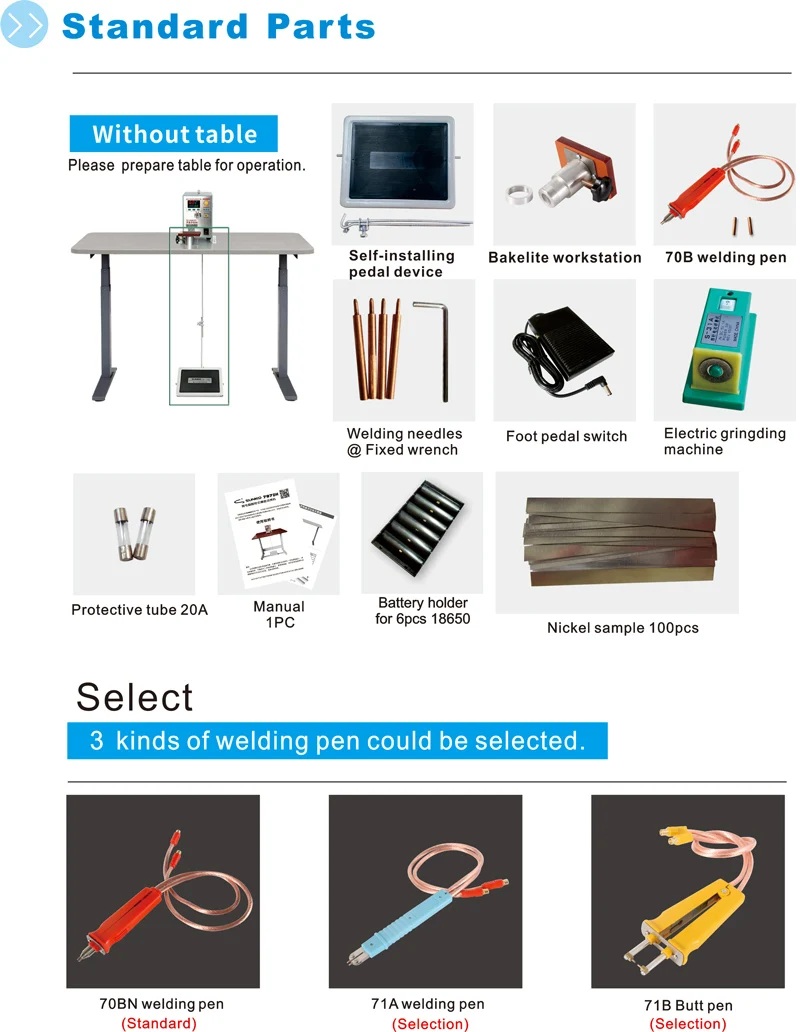

More Options: Sunkko 797DH gives users more possibilities at work, 797DH can be compatible with 3 types(71A, 71B, 70B) of mobile welding pen, and with our professional spot welding table, making your battery spot welding and diy process more smooth and efficient.

Specification

Voltage	220V, 50Hz or 110V, 60Hz
Power	3.8kw instantaneously
Max. welding current	800A (adjustable)
Pluse quantity	2 to 16P (adjustable)
Welding thickness	0.05 to 2mm(nickel coated steel: 0.3mm)
Mobile welding Pen
Length	≤22.8"
Cable cross sectional area	16 mm2
Dimension of welding pins	1.5 x 7 mm
Max. welding current	800A
Welding thickness	0.05 to 2mm(both pure nickel and nickel coated steel)
Net Weight	7kg
Machine dimension	14x25x20cm

Attention: This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.
