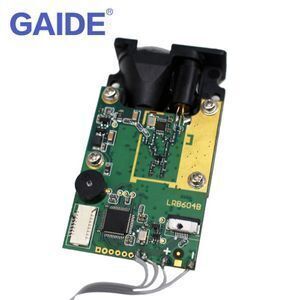

Factory sensor rs232 laser distance module
-
Supplier: Nantong Gaide Electromechanical Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Courtney Xu -
Price: $42.00 /piece -
Min. Order: 1 piece
| Measurement Range: | 80-100m; | Single measurement time: | 0.05-1s; |
| Single gross weight: | 0.35 KG; | Size: | 63x33x16mm; |
| Protection grade: | IP40; | Model Number: | LDM; |

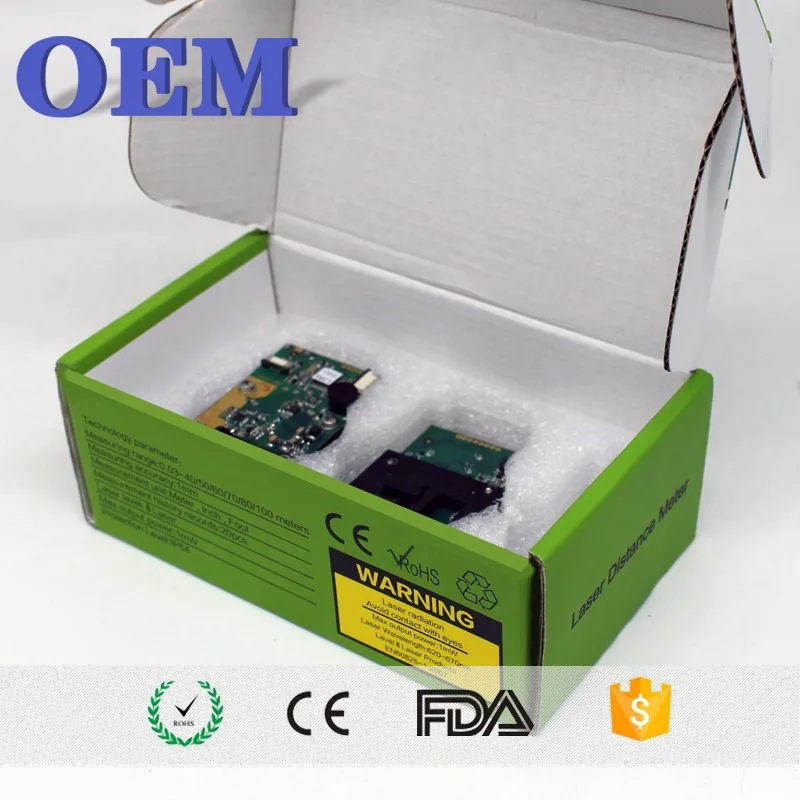

| Laser Type: | 650nm; | Package Type: | High grade carton for Factory sensor rs232 laser distance module; |
| Single package size: | 17X10X6 cm; | Package Preview: | https://sc01.alicdn.com/kf/HTB1X5XGkHuWBuNjSszgq6z8jVXas.jpg_640x640.jpg,https://sc02.alicdn.com/kf/HTB1NaSqkNSYBuNjSspjq6x73VXac.jpg_640x640.jpg; |
| Ports: | RS232; | Place of Origin: | Jiangsu China (Mainland); |
| Work Voltage: | 3V-3.5V; | Brand Name: | GAIDE; |
| N.W.: | 60g; | Storage Temp: | -20-+80℃; |
| Delivery Detail: | 0 days after payment; | Selling Units: | Single item; |
| Baud Rate: | 115200bps; | Measurement Accuracy: | 2mm; |
| Laser Grade: | 2 grade,<1mW; | Work Temp: | 0-+40degree; |
Factory sensor rs232 laser distance module
| Measurement Accuracy | +/- 2.0mm |
| Measurement Range | 80-100m |
| Ports | RS232 |
| Laser Type | 650nm |
| Laser Grade | Ⅱ grade,<1mW |
| Single measurement time | 0.05-1s |
| Baud Rate | 115200bps |
| Protection grade | IP40 |
| Work Temp | 0-+40degree |
| Storage Temp | -20-+8degree |
| N.W. | 60g |
| Physical size | 63x33x16mm |
| Work Voltage | 3V-3.5V |
| Interface | Serial Port: UART,TXD,RXD,Baud Rate:115200 Red line(VCC)Black(GND) Green(TX)White(RX) |
| Command | Command Code | Return Code | Identification |
| Switching on the laser | $0003260130& | $00023335&$0003260130& | Laser indication open success |
| Single Measurement | $00022123& | $00023335&$0006210000168831& | Single measurement success,and return the measurement result |
| Declaration for returned measured data | ||
| Return Data | Return Code | Declaration |
| Single Measurement Return Data | $0006210000014977& | Data Head:$ 000621:Fixed data bytes 0000014977:Five integers + 5 decimal places ,Unit: M. Data Tail:& The distance value above:0.14977m. |
| Measurement Failure | $0006210000001643& | Distance measurement failure . |
