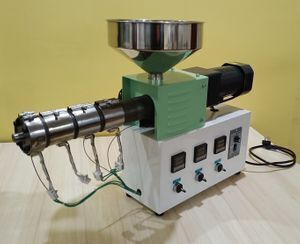

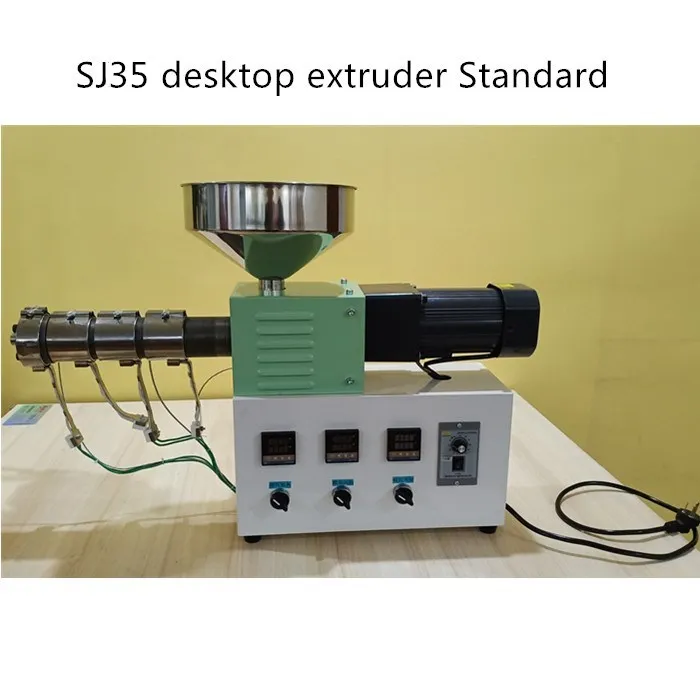

lab scale SJ35 plastic extruder small for laboratory for desktop scale mini filament extruding machine

Supplier: Zhangjiagang Yuan Yuan Imp.&Exp. Co., Ltd.
Region: Jiangsu, China
Contact: Ms Echo Lee
Price: $1050.00 /set
Min. Order: 1 set

Click here to contact

Product details

Plastic Processed:	PE,PP,PVC,ABS,XPS,WPC,Polystyrene,PA,EVA,EPS,PET,PC,FRPP/PVC,HDPE,PPR,wood-plastic,ABS/PP,HDPE/PP,PE/PP,Lldpe,LDPE;	Brand Name:	OROTRIM;
Local Service Location:	None;	Showroom Location:	None;
Power (kW):	0.25;	Package Type:	wooden box;
Single gross weight:	32 KG;	Screw Design:	Single-screw;
Application:	Bar,Wire,Pipe,Granules,Sheet,Film,Profile,Plates,Filament,Pelletizing;	After Warranty Service:	Online support;
Single package size:	70X20X40 cm;	Package Preview:	https://sc02.alicdn.com/kf/Hdba5f9b1ed244c7d82f9cb6e7d119c69K.jpg_640x640.jpg;
Screw Material:	Crmola;	Weight:	32KG;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Advertising Company;	Selling Units:	Single item;
Key Selling Points:	Energy saving;	Screw L/D Ratio:	12:1;
Screw diameter (mm):	35 mm;	Place of Origin:	Jiangsu China;
Warranty:	1 year;	Dimension(LWH):	700200400;
After-sales Service Provided:	Video technical support,Free spare parts,Online support;	Automatic Grade:	automatic;
Condition:	New;	Output (kg/h):	0.1 - 5;
Voltage:	220v;

1, The basic performance parameters:
   1, Capacity: 0.1-5KG / hr
   2, ; screw rotation speed: max to 15r/min
   3, the production line center height: 300mm;
   5, line direction: left and right to close the discharge →
   6, the installation area: length×width*height = 0.75m * 0.2m * 0.5m
;  weight: about 30KG
   7. Motor Power: 250W
   8. Voltage: 220V 110V, or customers can specify

Main extruder equipment configuration and performance parameters: For ABS/PLA/PCL/PETG/PC/PEEK/PE/PP/TPU/TPE...
Control System	Not PLC
Voltage	220/60 Hz,1phases
Raw Material	PE/PP/PVC/ PLA/PC/TPU/ABS/NYNONG...
Output	0 -5 kg/h
Main Motor Power	250W
Heating Power:	1000W
Screw	Single screw Extruder
Diameter	35 mm.
Screw L/D	12:1
Raw material	38CrMoAlA
surface treatment	Nitrogenization and polished
Inner surface treatment	Nitrogenization and polished
Max heating temperature	300℃
Barrel Material	38CrMoAlA
Inner surface treatment	Nitrogenization and polished
The nitride layer thickness	0.5~0.7 mm.
The surface hardness	HV850~940
Controlling system
Extruder total Power	940W
Control Type	Single phase electronic speed governor control
The control system
Heating control zone	3
