High quality digital surface Surface Resistance Tester , Surface Resistivity Meter with LCD display

Product details
Show system:LCD Digital Display of Measured Resistance and Humiture;Product name:antistatic High quality digital surface Surface Resistance Tester;
Brand Name:AAC;Weight of Hammer:2.5±0.2KG/Pse;
Place of Origin:Guangdong China;Operating Temperature:0-50℃;
Measuring Range:103~1012 Ω;Package Preview:https://sc02.alicdn.com/kf/HTB1WMISbfWG3KVjSZFgq6zTspXam.jpg_640x640.jpg;
Single package size:40X30X11 cm;Selling Units:Single item;
Single gross weight:7 KG;Material:ABS;
Validity of Battery:40 hours (continuous work);Operating humidity:humidity 10% -90% RH;
Accuracy Class:±10%;Operating voltage:DC6.5-9V;
Usage:Ground resistance, surface resistance, volume resistance test;Display Type:Digital Only;
Testing Voltage:10V/100V;Warranty:1 Year;
Model Number:AAC-TR-800;Package Type:antistatic High quality digital surface Surface Resistance Tester :1SET/BOX.;
Dimensions:L190*H40*W100MM;Weight:295g;
resistance tester



Product Description



Digital Earth Resistance Tester



Product Description:

AAC-TR-800 megaohm meter(digital earth resistance tester) is designed according to EOS/ESD, CECC, ASTM and UL test procedures. It is used to measure the impedance or resistance of all conductive, antistatic and electrostatic discharge surfaces. Easy to use, high quality, high reliability, the instrument can also measure the relative humidity and temperature which affect the electrical performance.
AAC-TR-800 megaohm meter uses parallel electrodes and concentric rings to measure surface resistance. Test the ground resistance (RTG), resistance between two points (RTT), volume resistance using a 2.5 pound weight hammer.
AAC-TR-800 conforms to ANSI/EOS/ESD (S4, S7.1, S2.1, S12), ASTM-F150, and NFPA99A standards.

The design quality inspection of AAC-TR-800 digital earth resistance tester is introduced into the surface decoration, floor mat, table mat, conductive floor tile, such as material working surface, paint, packaging bag, wristband, common point grounding wire, shoes, packaging materials, clothing, anti-static chair, static control area. Applications include engineering, maintenance, quality control, incoming inspection, manufacturing and training.



product feature :
1. Measuring impedance, temperature and humidity, in accordance with ESD standards, S4.1, S7.1 and S11.11.
2, 03-1012 ohm/range, can test the electrical properties of various materials.
3, 0 volt/100 volt measurement scale, suitable for the standard worktable and ground.
4. Plastic instrument protection box to prevent instrument damage.
5. Light weight, only 150Z (425g), easy to carry.
6. LCD digital display, easy to use, easy to read.
7. Automatic power-off function to prolong the service life of batteries.
8. Automatically return to zero to ensure accuracy.
9. Parallel electrodes, 5-pound probe and built-in impedance probe.



Product Details:

Operating voltageDC6.5-9V
Validity of Battery40 hours (continuous work)
Measuring Range103~1012 /sq
Measuring voltage10V/100V
Measuring Precision±10%
Show systemLCD Digital Display of Measured Resistance and Humiture
MaterialABS
Weight295g
Weight of Hammer2.5±0.2KG/Pse
SizeL190*H40*W100MM

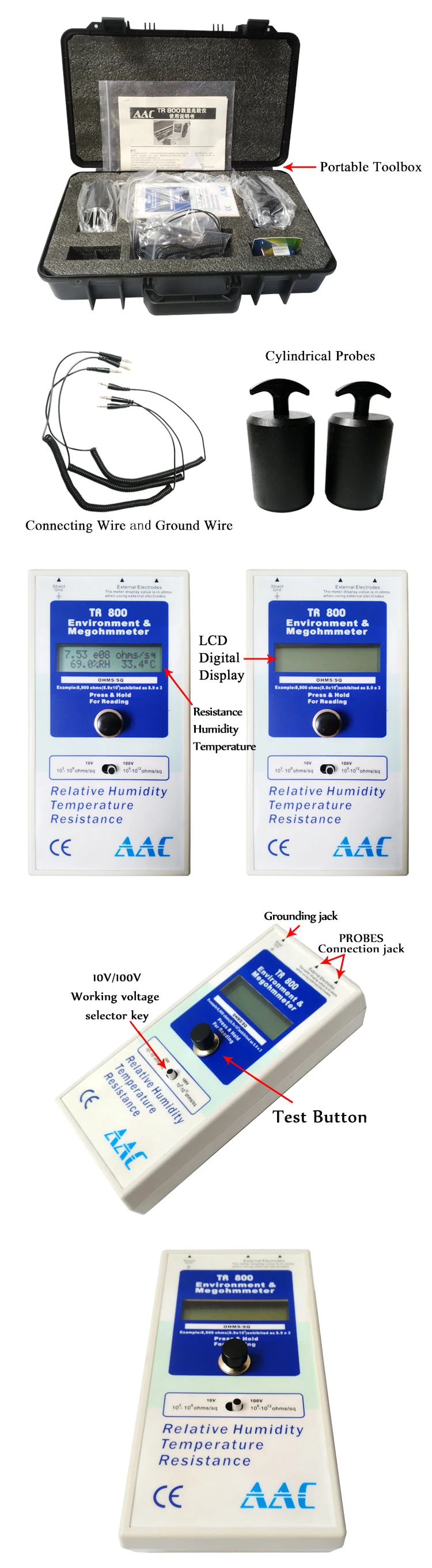

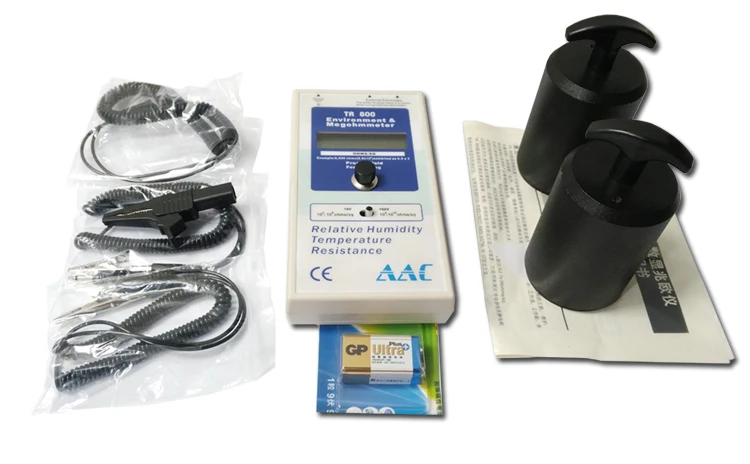

Product show:





Factory Show

Certifications

CERTIFICATE

Strength proof

All our products are passed the inspection standards included SGS,CE with 100% quality.

Our Advantages

1. Competitive production line: It has independent electrostatic equipment production line, electrostatic clothing production line, SPU electrostatic slippers production line, electrostatic table pad production line and a group of electrostatic, clean room product manufacturers who have cooperated for more than ten years.
2, Sufficient inventory: our inventory and production capacity is enough to complete the customer's order.
3, Short delivery time: 95% of orders can be delivered 7/10 days after receiving the deposit.
4, OEM and ODM: We can design and produce some non-conventional size or specification products according to your requirements, the packaging can be your design.
5. Zhengfei Company integrates scientific research and production into one, and is a professional design and manufacturer of anti-static equipment.
6. Our advantages and fast delivery ability, competitive price, high quality and long-term service can fully meet the needs of our customers.
