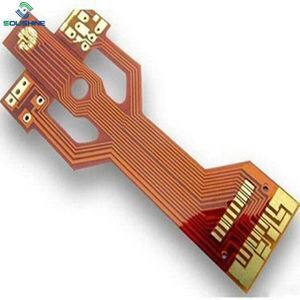

Customized Multi Port Electronic Flexible Printed Circuit Board FPC

Click here to contact

Product details

MOQ:	1piece;	Board Thickness:	0.075 ~0.4mm;
Packaging Detail:	1)Wrap in air bubble film 2) Put into foam box 3) Packed with extra carton box, which make sure the goods safety in transportation. 4) We can accept customized package.;	Copper Thickness:	1oz;
Product name:	Customized Multi Port Electronic Flexible Printed Circuit Board FPC;	Material:	Polyimide/PET;
Layer:	1-6;	Service:	ODM OEM EMS;
Min. Line Spacing:	0.05mm;	Supply Ability:	50000 Piece/Pieces per Month;
Model Number:	NH-A62;	Min. Line Width:	0.075mm/0.075mm(3mil/3mil);
Certificates:	ISO9001:2008;	Application:	FPC connectors;
Surface Finishing:	immersion gold, osp etc;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Min. Hole Size:	0.20mm;	Place of Origin:	China;
Base Material:	Polyimide/PET;	Brand Name:	OEM;
Port:	Guangzhou Shenzhen;	Customized:	Yes;

Product Description

All of our products are custom made from dimension, color, material requirment, cable length, tracks pitch, total thickness etc..

Also add special structure to make the products more attractive, like backlight, fluorecent etc..

Expect for getting your design idea, then we will work hard together to achieve it.

FPC Parameter
Material	Polyimide (Kapton)	Polyester (PET)	Remarks&Test Merhod
Number of Layer	1-6 layer	1-2 layer
Min. Line Width/Min. Line Spacing	Single side	0.075(3mil)
Min. Line Width/Min. Line Spacing	Double side	0.075(3mil)
Min.Hole Diameter	Drilling(P.T.H)	Ø 0.20mm
Min.Hole Diameter	Punching	Ø 0.5mm
Dimension Tolerance	Conducting Wire width(W)	±0.03mm	W≤0.5mm
	Hole Diameter(H)	±0.05mm	H≤1.5mm
	Accumulated spacing	±0.05mm	P≤25mm
	Outer Dimension(L)	±0.05mm	L≤50mm
	Conducting Wire and Outer(C)	±0.075mm	C≤5.0mm
Surface treatment	Ni(0.05-2um)/Au(0.05-1.25)
	Pb/Sn(2-20um) Primary flux
	H.A.L(for polyimide only)
	Chemical Ni(0.8-1.5um)
	OSP
Insulation Resistance	1000Ω	IPC-TM-650 2,5,3,2 at Ambient
Dielectric Strength	5KW	IPC-TM-650 2,5,6,1
Surface Resistance	5*10¹²	2*10¹²	IPC-TM-650 2,5,1,7
Volume Resistance	1*10¹⁵	1*10¹⁵	IPC-TM-650 2,5,1,7
Dielectric Constant(1MHz)	4.0	3.0	MIL-P-55617
Divergence Coefficient(1MHz)	0.04	0.03	MIL-P-55617
Peeling Strength(180℃ Direction)	1.0kg f/cm	1.2kg f/cm	IPC-TM-650 2,4,9
Welding strength	300℃/10 secs	210℃/10 secs
Combustion assisting	94 V-O	94 V-O	UL94
