Lowest cost environmental -friendly gypsum powder machine / POP machinery

Product details
Place of Origin:Henan China;Output capacity:As your request;
working principle:New type ebullience calciner drying principle;Working plants:Thailand Etc;
Production Capacity:Day;Delivery Detail:30 working days after receiving the deposit;
Packaging Detail:container;in bulk;Application:Construction Gypsum;
Working principle:Ebullience Calciner Drying Principle;Fineness of powder:Adjustable;
Payment Terms:T/T;Port:Qingdao;
Weight:255t;Features:Energy-saving, enviroment -friendly;
Supply Ability:35 Set/Sets per Year more than this;Certification:ISO9001;

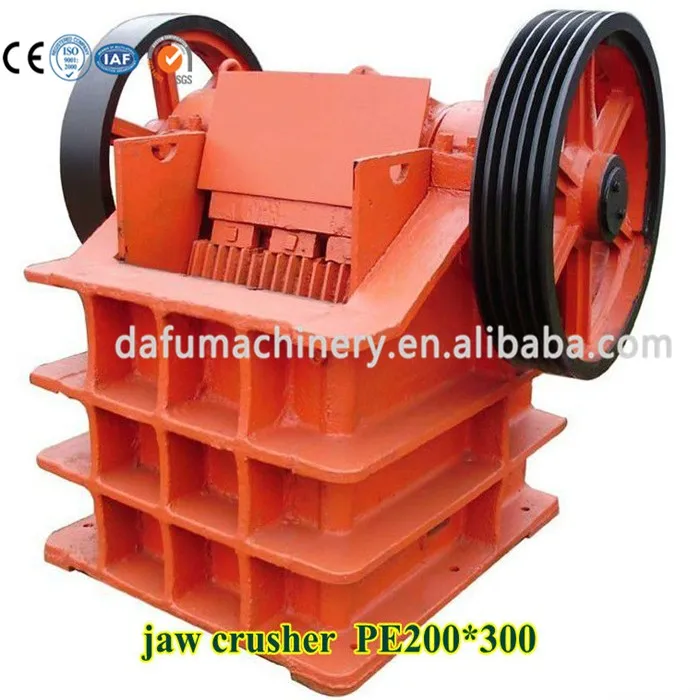

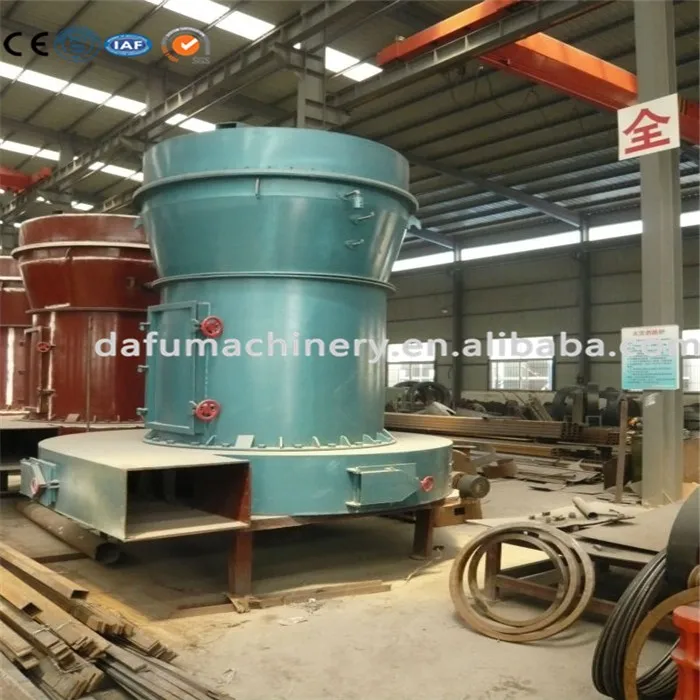

Machine Type:Jaw crusher ,ramond mill,boiler ,ebilience calciner etc.;Warranty:Continuous 12 Months;
Voltage:220V/380V;Power(W):200KW;
Raw material:Gypsum rock,gypsum sand;Dimension(L*W*H):1300*6500*1150mm;
Brand Name:Dafu;After-sales Service Provided:Engineers available to service machinery overseas;
Model Number:Parameter;Installation:Professional engineers guiding;
Condition:New;



Lowest cost environmental -friendly gypsum powder machine  / POP machinery

Product Description

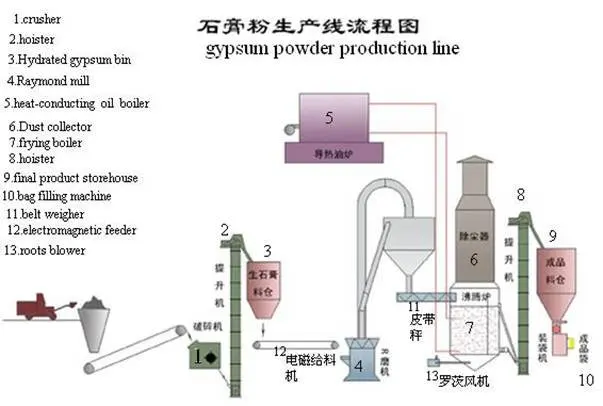

Gypsum powder making equipment


The main composition of gypsum is hydrate gypsum(CaSO4.2H2O). however, the gypsum powder used in practical production(such as the gypsum powder for gypsum board, for mould, for plastering)is to dry and dewater the dehydrate gypsum which of certain fineness, reduce the content of crystallization water in it, so the standard of crystallization of gypsum powder can qualify all kinds of gypsum powder, because it can change into plaster of pairs. Plaster of pairs can re-integrated with water when it is applied into production, and it can be processed into new type building materials with a high intensity, such as gypsum board, gypsum block, etc.

Existing gypsum powder drying technologies are frying boiler and rotary kiln plant. It means that put the gypsum powder into the frying boiler and coil pipe, and before the gypsum powder was put, the heat produced by the burning of the medium in kiln furnace was send into the frying boiler and rotary kiln plant by fan. In this way, the quality of gypsum powder is difficult to guarantee, because the content of crystallization water is uneven.





New-type gypsum frying boiler- ebullience calciner

First grind and second bake. The largest advantage of this technique, compared with that of “first grind and second bake”, is energy consumption reduction. Large plaster stone shall be ground into powders with diameter less than 0.2mm, which increases the specific surface when calcining, enlarges the contact area with heat medium, improves calcination heat exchange efficiency and lowers energy consumption greatly. This equipment has small bulk, large production capacity, and simple structure and is hard to destroy.








 The equipment configuration table fluidized furnace



Daily output

(T)

Volume of fluidized furnace

(M)

Roots blower

(KW)

Electrostatic precipitation

(

Thermal conductivity oil furnace

Auxiliary equipment

note

150

1.3

11

4

200

Hoist, root blower, feeder conveyor, frame body



200

1.4

15

5

300



300

1.6

18.5

6

500



400

2.0

22

8

600



500

2.4

30

10

800





Note: in addition to the above mentioned equipment, we also provide the design for the entire production line and auxiliary equipment election. We will send technical engineer to the buyer’s site for installation and debugging machine until the quality gypsum is produced.

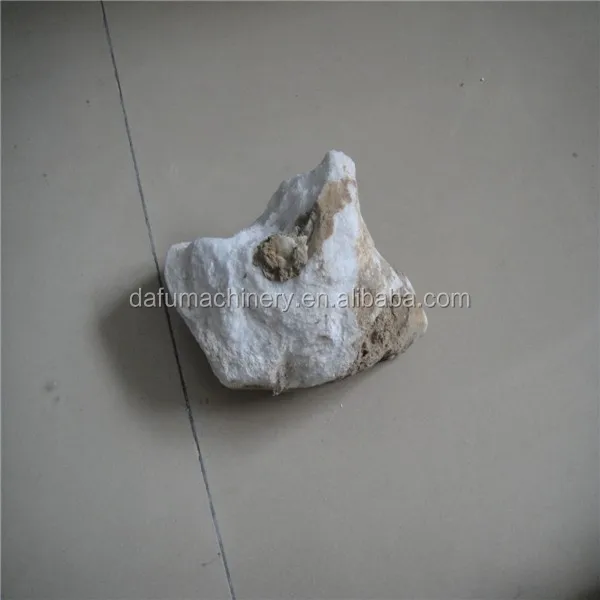

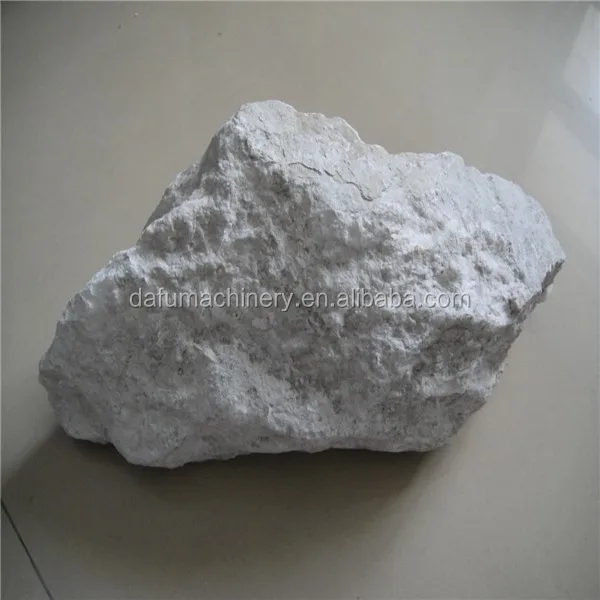

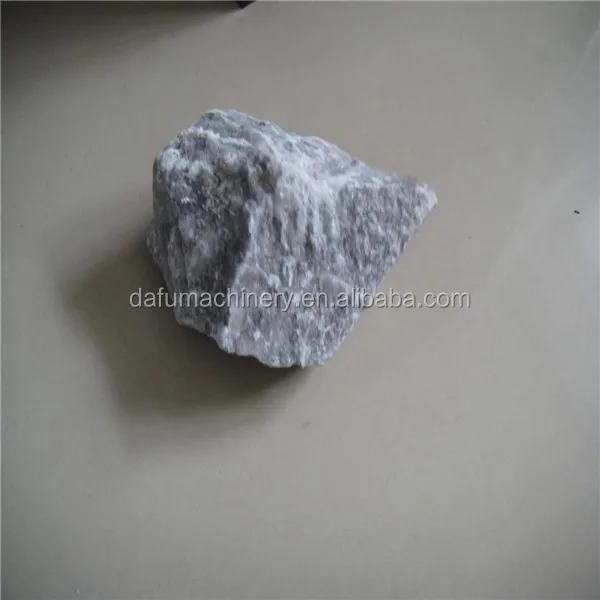

 gypsum rock







3.Obvious Advantages

 (1) Simple and sustainable structure

fluidization material, funace doesn't need rotatable component , it easy to built and almost free of maintenance.

low temperature heat source, the furnace won't be damaged by over heating and has longer operating life.

(2) Compact design and less space requirement

vertical arrangement, the dust catcher on the top of the furnace body is integrated with the boiling furnace compactly. both save space and avoids condensation of the dust collecting system.

(3) Low energy consumption

The heat energy, is almost all used for material's dehydration.

the steam boilers or hot oil boilers are boilers, efficiency can reach 60-70% and the oil boiler's can reach 70-80%.

our company uses organic heat carrier hot oil boiler(heating conduction oil boiler). with steam,it can reach 57-67%,it can reach 67-76%.

(4)Reliable quality, ideal compositions of Paris Powder, stable Physical properties

low temperature heat source, the plaster does not tend to be over calcined. only if controlling the discharte gypsum and with less than 5% anhydrite. and the spare is all hemihydrate gypsum.

this composition is very ideal and with stable physical property.

The most appropriate price, to provide the best quality products and services to establish long-term relationship with our customers.







 Besides the equipment mentioned above, design for the entire production line and auxiliary equipment election are provided, and technical engineers would be sent to the customer’s site for installation and debugging machine to guarantee qualified product.

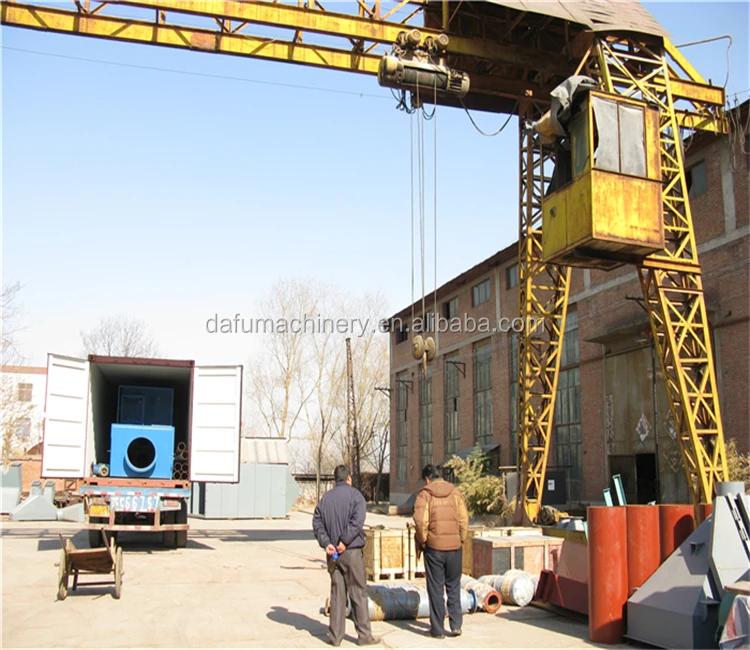

Packaging & Shipping



Our machines and equipments are packed in standard package that fit for long distance road transportation and shipping. We ensure our customers can receive the undamaged machine in good condition.

+





Packaging Details:



standard export packing, 20ft, 40ft container. equipment fittings,electric motor and power cabinet

will be packed in wooden case. bulk

 30





30-60 working days after receiving the payment





Note



Our company can design all kinds of  Gypsum Powder Production Line equipments  to satisfy different uses for the clients.

 welcome to  customize



If you are interested in the machinery by us, please Contact us or visit the website of the company for relevant prices and detailed technical parameters and specifications etc. Henan Dafu Mechanical Import and Export Co., Ltd. will assure you of our best service at all time!
