Double-cage SC100/100 Building Construction Lift/Elevator with CCC/ISO9001 Certificate on Sale

Product details
Packaging Detail:Nude Cargo in Containers;Payment Terms:L/C,T/T;
Model Number:SC100/100;Delivery Detail:15 days after receive the deposit;
Port:Qingdao;After-sales Service Provided:Engineers available to service machinery overseas;
Hoisting Speed:36m/min;Condition:New;
Motor Power (kw):2*2*11;Rated Loading Capacity(kg):2*1000kg;
Brand Name:TLS(Iron Giant);Dimension(L*W*H):3m*1.3m*2.2m;
Loder Weight:2*1500kg;Place of Origin:Shandong China (Mainland);
Max Lifting Height:200m;Supply Ability:183 Set/Sets per Month;

Double-cage SC100/100 Building Construction Lift/Elevator

with CCC/ISO9001 Certificate on Sale

TLS(Iron Giant), Famous Trademark of China

CCC/ISO9001 Certified

I.Brief Introduction to Building Construction Lift/Elevator

Brief Introduction

The SC series of construction elevators are widely used at the sites of industrial and civil construction, bridge construction, undefground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and towers.

This series of construction elevators, which are known for their stable performance, reliable safety, easy transportation and strong adaptability, can enhance work efficiency and reduce workers' labor intensity.



II.Main Technical Parameters of Building Construction Lift/Elevator

Technical Parameters

Model

SC100/100

Height (m)

50

Max Installation Height (m)

200

Rated Loading Capacity (kg)

1000/1000

Rated Lifting Speed (m/min)

36

Rated Passenger Number

12/12

Motor Power (kw)

2*2*11

Inner Dimension of Cage (m)

3*1.3*2.2

650mm Mast Section Weight (kg)

148

650mm Mast Section Dimension (mm)

650*650*1508

800mm Mast Section Dimension (mm)

800*800*1508

Counterbalance Weight (kg)



Rated Hanger Lifting Capacity (kg)

200

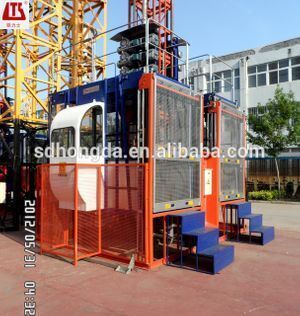

III.Detail Pictures of Building Construction Lift/Elevator

Detail Pictures













IV.Introduction to Our Company

About Us
Shandong Hongda Construction Machinery Group Co., Ltd., which is located in the beautiful city of Laiyang in China’s Shandong Province, is not only one of the largest industrial enterprise groups of China but also one of the key enterprises in China’s construction machinery industry. Hongda Group is a professional manufacturer of construction machinery for 29 years; Our total assets amount to about RMB 1.88 billion (US$300.8 million); Our annual sales income of the year 2011 reaches RMB2.5 billion (US$400 million); We have about 3,800 employees; Our company covers a gross area of more than 800,000 m2 and a total floor area of about 460,000 m2.
Our company has passed the ISO9001 International Quality System Certification, the CCC Certification (China Compulsory Certification) and the CE Certification. Our products have won the titles of “Shandong Famous Brand” and “Shandong Famous Trademark” in many consecutive years, and our company has been awarded many honors like “Provincial-level Civilized Enterprise”, “National-level High-tech Enterprise”, “National-level User-trusted Star Enterprise”, “National-level Contract-honoring and Promise-keeping Enterprise” and “National-level Credible and Law-abiding Enterprise”.

Our main products cover 12 series with more than 80 varieties, such as:

1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);

2. Construction Elevators (multi-speed, stepless-speed);

3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);

4. Concrete Batchers;

5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);

6. Concrete Truck Mixers (6-16m3);

7. Truck-mounted Concrete Pumps (diesel, electric);

8. Trailer-mounted Concrete Pumps (diesel, electric);

9. Concrete Pump Trucks (with 24-52m booms);

10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning).

Quality Control (QC)

Third  Control

ISO9001:9001 Certificate

European  Certificate

Enviroment Protection Design

Corporate Culture

ENTERPRISE TENET: All for clients, all from clients.

ENTERPRISE GOAL: Try our best for perfectness.

BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.

BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.

CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.



V.Our Services

Our Services

Why Choose TLS?

Reply in first time

Arrange production in first time

Effect transportation in first time

Solve problem in first time

R&D Technical Support

We have a professional R&D team for research and development of new techniques and products.  We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.

Before Sale Service

Before sales, we provide our customers with professional solutions on Building Construction Lift according to customers’ situations.

After Sale Service

Turn-Key Solutions

Free Erection & Commissioning Service

Operation Training Service

Spare Parts Supply ( all working life )



VI.Frequently Asked Question

FAQ

1.Is the price you offer is best price?

The price we offer is our normal price,We can discuss it according to your quantity and requirement.We will definitely try our best to provide you the best price as we can.

2.What's your Delivery Time?

It depends on your special requirements. Normally the delivery time is 25- 35 working days.

3.Do you want to know more about this company before you make a deal? Request an Assessment Report.

Supplier Assessment Reports are detailed on-line reports about the supplier's capabilities. It helps you get all the information you need to trade confidently with suppliers.

4.How long is your Warranty period?

12 months since delivery the machine .

More information can be get by contact with HONGDA Group.









You are warmly welcomed to visit our products!

If you have any question, please feel free to contact us.

You can send email to salesatcnsdhongda.net

or you can call us +86 535 7287987

or fax to us +86 535 7287987 at any time!
